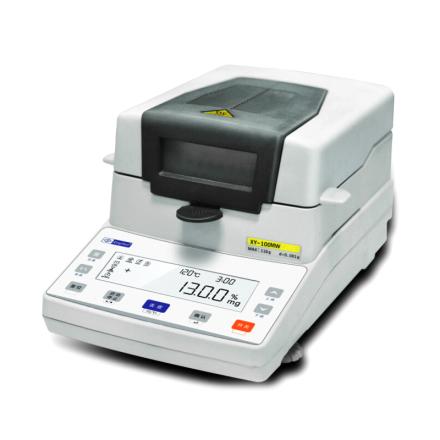

| Product Name | XingYun XY-100MW-A Halogen Moisture Analyzer | XIONGFA XF-1203MA Halogen Fast Moisture Analyzer |
| Product Price | In coming | $538.00 |
| Details | Details | |
| Model comparison | ||
| Maximum weighing value | 0~120g | 0~120g |
| Water readability | 0.01% | 0.01% |
| Parameter comparison | ||
| Capacity value | 110g | 0.001~120g |
| Reading accuracy | 0.001g | |
| operating temperature | 5~35℃ | |
| Calibration method | Externally calibrated | |
| Pan Size | Φ90mm | |
| Dimension | 200*180*380mm | 370*215*195mm445*300*330mm |
| heating source | Halogen lamp | |
| temperature sensor | PT 100 | |
| Temperature Range | RT+40~199℃ | |
| Temperature adjustment accuracy | 1℃ | |
| Moisture measurement Range | 0.00%~100% | 0.01~100.00% |
| Water readability | 0.01% | 0.01% |
| Drying residual Range | 100.00%~0.00% | |
| Drying readability | 0.01% | |
| ATRO | 100%~999% | |
| Timer Range | 1~99min | |
| Automatic stop | 0.1%~9.9% | |
| save history | 15 groups | |
| Heating part power supply | 220V+15% 50Hz；115V+15%；400W | |
| Communication interface | RS232 | Standard RS232 interface |
| Balanced partial power supply | 9V 220V+15% 50Hz | |
| display screen | liquid crystal | 5 inch Touchscreen Display |
