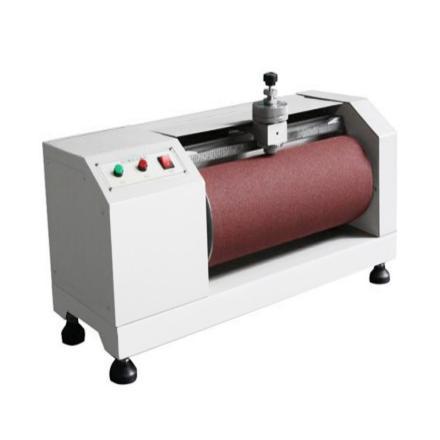

| Product Name | huitao CSI-252 DIN Wear resistance Tester | AISRY NBC-5611 DIN Wear resistance Tester |
| Product Price | In coming | $1101.00 |
| Details | Details | |
| Model comparison | ||
| Test Principle | Rotational Friction | Rolling Friction |
| Tribo-pair Type | Pin-on-Disk | Ring-on-Block |
| Loading Method | Dead Weight Loading | Dead Weight Loading |
| Test Mode | Dry Friction | Dry Friction |
| Load Range | Light Load (2-10N) | Light Load (2-10N) |
| Applicable Materials | Plastics/Rubber | Plastics/Rubber |
| Parameter comparison | ||
| Abrasion Travel | 40mm(20mm) | |
| Abrasion speed | 0.32 m/sec | |
| tilt angle | 3° | |
| Specimen diameter | Φ16mm | |
| thickness | 6~15mm | |
| test load | 5N，10N | |
| Clamp lateral displacement | 4.2mm/roller per turn | 4.2mm/roll per turn |
| Volume | 70*30*30 cm | |
| weight | 65 kg | Approx. 50 kg |
| Power supply Voltage | 1∮,AC 220V, 3 A | 220 V 50 HZ |
