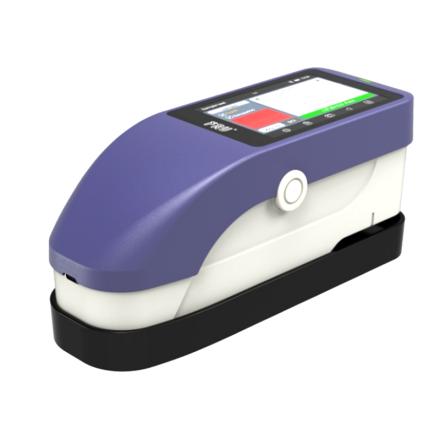

| Product Name | 3NH PS2030 Spectroscopic color difference Meter | IWAVE SY3060 ColoriMeter |
| Product Price | $566.00 | In coming |
| Details | Details | |
| Model comparison | ||
| Type | Portable | Portable |
| Measurement method | Contact | Contact |
| Caliber | F8mm | F4mm F8mm |
| light source | LED light source | LED light source UV light source |
| integrating sphere | ≤ F40mm | ≤ F40mm |
| Chromatic value repeability | ≤0.03 | ≤0.03 |
| Measurement shape | plane curved surface | plane curved surface |
| software | computer software | computer software |
| Special features | Fluorescence measurement | |
| Parameter comparison | ||
| Lighting method | D/8 (diffuse illumination, 8 ° direction reception), SCI/SCE (including specular reflection/removing specular reflection), conforms to CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 | |
| lighting source | Light spectrum LED light source | |
| Integrating sphere Size | Φ40mm | |
| Sensor | CMOS Dual Spectroscopic Sensor | CMOS sensor |
| Measurement wavelength Range | 400-700nm | |
| Measurement caliber | Two diameter: MAV: Φ 8mm/Φ 10mm (platform + nozzle measurement diameter) | Dual diameter Φ 8mm/Φ 4mm can be switched |
| Light-containing method | Simultaneous testing of SCI/SCE | SCI (including specular reflection)/SCE (excluding specular reflection) can be measured simultaneously |
| Color space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 | CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A/T/E/M/I) field density, Munsell, reflectance (bright vision), blackness, YI yellowness, homochromatic (jumping lights), hiding power |
| Color difference formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) | ΔE*ab、ΔE*ch、ΔE*uv、ΔE*HunterLab、ΔE*CMC(l:c)、ΔE*94、ΔE*00、ΔE*sRGB、ΔE*BFD、ΔE*FCMII、ΔE*DIN99 |
| Other chroma metrics | Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), homochromatic index Mt, colour fastness, colorfastness, force, occlusion, 555 shade classification, Munsell (C/2) (mobile app implementation) | |
| Observer Angle | 2°/10° | |
| observation light source | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65 | |
| show | Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias | |
| Measurement time | About 1s | |
| Repeatability | Chromatic value: MAV/SCI, standard deviation Delta E * ab within 0.035 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) Spectroscopic reflectance: MAV/SCI, standard deviation within 0.1% (400~ 700nm: within 0.2%) | |
| stand-alone difference | MAV/SCI, Delta E * ab within 0.35 (BCRA series ⅱ 12 color plate measurement average) | Delta E * ab ≤ 0.4 (the average measurement value of < 12 color blocks) |
| Display accuracy | 0.01 | 0.01 |
| Reflectance measurement Range | 0-200% | |
| Reflectance resolution | 0.01% | |
| Measurement method | Single measurement, average measurement (2~ 99 times) | |
| positioning method | Stabilizer positioning | camera positioning |
| Whiteboard verification method | Contact automatic whiteboard calibration | |
| Dimension | 94X68X188mm | |
| weight | 270G (without calibration base) | 330G (without base) |
| Battery level | Lithium battery, 3.7V, 5000mAh, 8000 times in 8 hours | |
| Lifetime of lighting source | More than 1.20 million measurements in 10 years | |
| display screen | TFT true color 2.8inch, capacitive touch screen | |
| interface | USB | Type C/Bluetooth |
| Store data | 500 master standards, 5000 samples (one data can include SCI/SCE at the same time), PC mass storage | |
| Software Support | Windows | |
| language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, Traditional Chinese, English |
| Temperature Range | 0~ 40℃, 0~ 85% RH (no condensation), altitude: less than 2000m-20~ 50℃, 0~ 85% RH (no condensation) | |
| Temperature Range | 0~ 40℃, 0~ 85% RH (no condensation), altitude: less than 2000m-20~ 50℃, 0~ 85% RH (no condensation) | |
| standard attachment | Power adapter, data cable, manual, quality management software (official website download), black and white correction box, protective cover, wristband, measurement caliber | |
| optional accessories | Micro printer, powder test box | |
