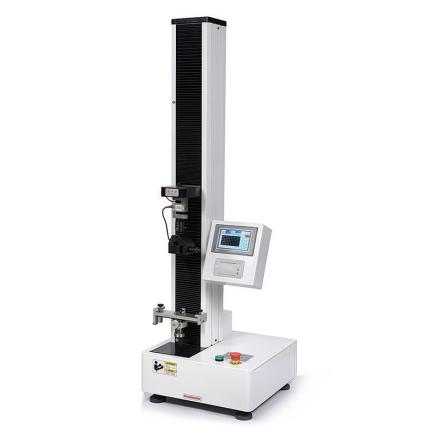

| Product Name | labchen WDB-01（400mm） Peel strength Tester | jingwen JW103CW02-100N Peel strength Tester for horizontal heat seal |
| Product Price | In coming | $1570.00 |
| Details | Details | |
| Model comparison | ||
| Parameter comparison | ||
| test force | 100N | |
| Standard test force | 0-100N | |
| Test force minimum resolution | 0.01N | |
| Test Force Precision | +/- 1% better than indication | |
| Measurement Range | 2% of maximum test force - 100% | 0.02-100N |
| Accuracy level | ±1% | |
| deformation display error | ≤±(50+0.15L) | |
| Deformation Precision | Better than +/- 1% | |
| Displacement measurement resolution | 0.01mm | |
| mode of operation | Five-inch color LCD touch screen | |
| LCD content | Test force, displacement, peak value, operating state, operating speed, etc | |
| stepless speed regulation | Adopt stepper motor and control system | |
| Drive mode | Stepper motor, synchronous belt drive | Step Drive Driver |
| Motor power | 150W | |
| Speed Range | 1mm/min~~500mm/min | |
| test stroke | 400Mm (can be customized) | |
| stretch space | 400Mm (can be customized) | |
| Host Size | 500*420*1550mm | |
| Test protection function | Overload protection, leakage protection, limit protection | |
| Power supply | 220V 50Hz | |
| weight | About 80Kg | |
