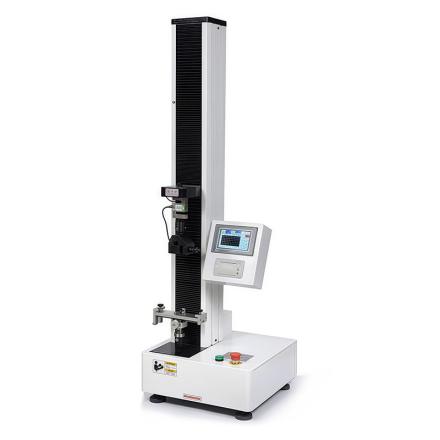

    Product Name labchen WDB-02（400mm） Peel strength Tester jingwen JW103CW02-200N Peel strength Tester for horizontal heat seal
    Product Price In coming $1570.00
    Details Details
    Model comparison
    Parameter comparison
    test force 200N
    Standard test force 0-200N
    Measurement Range 2% to 100% of the maximum test force 0.03-200N
    Accuracy level ±1%
    Test Force Precision +/- 1% better than indication
    Test force minimum resolution 0.01N
    deformation display error ≤±(50+0.15L)
    Deformation Precision Better than +/- 1%
    Displacement measurement resolution 0.01mm
    mode of operation Five-inch color LCD touch screen
    LCD content Test force, displacement, peak value, operating state, operating speed, etc
    stepless speed regulation Adopt stepper motor and control system
    Drive mode Stepper motor, synchronous belt drive Step Drive Driver
    Motor power 150W
    Speed Range 1mm/min~500mm/min
    test stroke 400Mm (can be customized)
    stretch space 400Mm (can be customized)
    Host Size 500*420*1550mm
    Test protection function Overload protection, leakage protection, limit protection
    Power supply 220V 50Hz
    weight About 80Kg
