    Wet Film Thickness Gauge

    Overview Products Knowledge Standards Terms
    The wet film thickness gauge measures the thickness of coatings before they are cured through mechanical contact. The principle involves a disk or roller contacting the surface of the wet film, with thickness calculated by converting geometric displacement. It is used for on-site monitoring of coating application quality to ensure the coating thickness meets requirements. It is commonly applied in fields such as shipbuilding and steel structure coating.
    Selection
    When selecting a wet film thickness gauge, consider a measurement range that covers the coating thickness, with a mechanical structure suitable for rough surfaces. Check the clarity of the scale for easy reading, and opt for stainless steel material for corrosion resistance. Choose between roller or disc types based on coating characteristics, and compare standard specifications to confirm accuracy. Consider portability and environmental adaptability.
    type
    Maximum range
    Minimum scale
    precision
    material
    shape

    Terms

    Wet Film Comb Gauge

    Standards

    Active GB/T 11344-2021
    Non-destructive testing—Ultrasonic thickness measurement
    Active GB/T 37361-2019
    Determination of the film thickness—Ultrasonic thickness gauge method
    Active GB/T 40332-2021
    Non-destructive testing—Ultrasonic testing—Characterization and verification of ultrasonic thickness measuring equipment

    Instruments

    JINGKELIAN QUL (0-150) wet film thickness Gauge
    JINGKELIAN QUL (0-150) wet film thickness Gauge

    In line with ISO2808-1974 standard, the range is 0~ 150μm, the accuracy is not more than 5μm, can measure the wet film thickness and estimate dry-film thickness, suitable for laboratory and pRoduction control.

    $ 127.00
    JINGKELIAN QUL (0-500) wet film thickness Gauge 0~ 500μm range
    JINGKELIAN QUL (0-500) wet film thickness Gauge 0~ 500μm range

    In line with ISO2808 standard, the range is 0~ 500μm, the accuracy is not more than 5μm, can measure the wet film thickness and estimate dry-film thickness, suitable for laboratory and pRoduction site.

    $ 127.00
    YONGLIDA SHG-200 wet film thickness Gauge Wet Film Comb stainless steel 20~ 200μm range
    YONGLIDA SHG-200 wet film thickness Gauge Wet Film Comb stainless steel 20~ 200μm range

    Made of stainless steel, the thickness is only 1.5mm, the range is 20~ 200μm, Division 20μm, the card design is convenient for quick measurement of wet-film Coating thickness on site.

    $ 119.00
    YONGLIDA SHG-750 wet film thickness Gauge Wet Film Comb Stainless Steel 50-950 microns
    YONGLIDA SHG-750 wet film thickness Gauge Wet Film Comb Stainless Steel 50-950 microns

    Stainless steel material is sturdy and durable, with a range of 50-950 microns, Division 50 and 100 microns, and a compact shape of only 65 * 43 * 1.5mm, suitable for rapid measurement of wet film thickness on site.

    $ 119.00
    YONGLIDA QUL-500 wet film thickness Gauge Thickness Wheel Stainless steel roller type 0~ 500μm
    YONGLIDA QUL-500 wet film thickness Gauge Thickness Wheel Stainless steel roller type 0~ 500μm

    Roller type design, range 0~ 500μm, stainless steel material to ensure durability, suitable for on-site rapid measurement wet film thickness, in line with a number of execution standards.

    $ 146.00
    PUSHEN SHG 50-950 Comb type wet film thickness Gauge, stainless steel one-sided type range to 950μm
    PUSHEN SHG 50-950 Comb type wet film thickness Gauge, stainless steel one-sided type range to 950μm

    Made of precision stainless steel, with a range of 50 to 950 μm, the 10-step tooth design can accurately measure wet film thickness, ensure painting mass and avoid material waste.

    $ 109.00
    PUSHEN SHG 10-100 comb type wet film thickness Gauge, stainless steel unilateral type 10~ 100μm range
    PUSHEN SHG 10-100 comb type wet film thickness Gauge, stainless steel unilateral type 10~ 100μm range

    The stainless steel material is durable, the range is 10~ 100μm Division 10μm, the unilateral design is convenient for vertical pressing into the wet-film measurement, and the number of teeth 10 can accurately read the thickness value between the infiltrated and uninfiltrated teeth.

    $ 109.00
    PUSHEN YQH-500 wet-film roller Thickness Gauge Wheel type wet film thickness Gauge 0-500μm
    PUSHEN YQH-500 wet-film roller Thickness Gauge Wheel type wet film thickness Gauge 0-500μm

    The three-wheel structure design is adopted, and the center wheel contacts the film directly for reading. The measuring range is 0-500 μm and the indexing is 25 μm. It can perform nondestructive thickness measurement on plane and curved surface.

    $ 186.00
    TRUIT TR 5501/700 Single-sided wet-film thickness Gauge 250~ 700μm
    TRUIT TR 5501/700 Single-sided wet-film thickness Gauge 250~ 700μm

    Made of corrosion-resistant stainless steel, the thickness range is 250~ 700 μm, Graduation 50 μm, and fast and accurate wet film thickness measurement is achieved through the toothed structure.

    $ 102.00

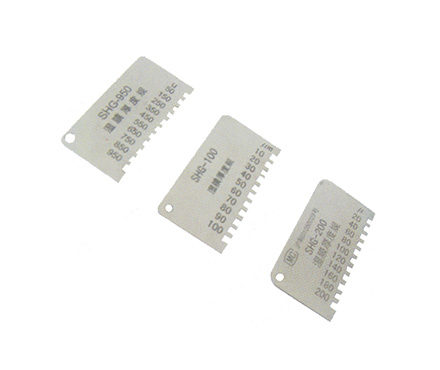

    YONGLIDA SHG-100 wet film thickness Gauge Wet Film Comb 10~ 100μm range
    YONGLIDA SHG-100 wet film thickness Gauge Wet Film Comb 10~ 100μm range

    Made of stainless steel, the range is 10~ 100μm, Division 10μm, Dimension 65 * 36 * 1.5mm, suitable for Paints, varnish and other Coating Coating thickness measurement.

    $ 119.00
    TRUIT TR 5501/200 Single-sided wet-film thickness Gauge 20~ 200μm range
    TRUIT TR 5501/200 Single-sided wet-film thickness Gauge 20~ 200μm range

    Made of corrosion-resistant stainless steel, the thickness range is 20~ 200μm, Graduation 20μm, and the wet Coating Film thickness is directly read through the toothed structure to ensure the construction mass.

    $ 102.00
    RDS 52 #3/8 Applicator Rod wire-wound stainless steel coating coating bar wet film thickness 118.9μm
    RDS 52 #3/8 Applicator Rod wire-wound stainless steel coating coating bar wet film thickness 118.9μm

    Wire-wound design, wet film thickness 118.9μm, diaMeter 9.5mm, stainless steel material, wear resistance and corrosion resistance, suitable for preparing specific film thickness wet-film.

    $ 167.00
    OSP-10/250 coating Rod 10 micron wet film thickness
    OSP-10/250 coating Rod 10 micron wet film thickness

    Spreader 10 micron wet film thickness, 304 stainless steel material, easy to clean unbroken wire, provide customized services.

    $ 157.00
    TRUIT TR 5501/100 Single-sided wet-film thickness Gauge 10~ 100μm range
    TRUIT TR 5501/100 Single-sided wet-film thickness Gauge 10~ 100μm range

    Made of corrosion-resistant stainless steel material, the thickness measurement range is 10~ 100μm, Graduation 10μm, and the toothed structure design can quickly read the wet Coating Film thickness to ensure measurement accuracy and conformity.

    $ 102.00
    PUSHEN YQH-100 wet-film roller Thickness Gauge Stainless steel roller type 0-100μm
    PUSHEN YQH-100 wet-film roller Thickness Gauge Stainless steel roller type 0-100μm

    The three-wheel structure design is adopted, and the thickness of the center wheel contact film is directly read, with a range of 0-100 μm and a Graduation of 5 μm, which can be used for nondestructive measurement on planes and surfaces.

    $ 186.00
