Overview

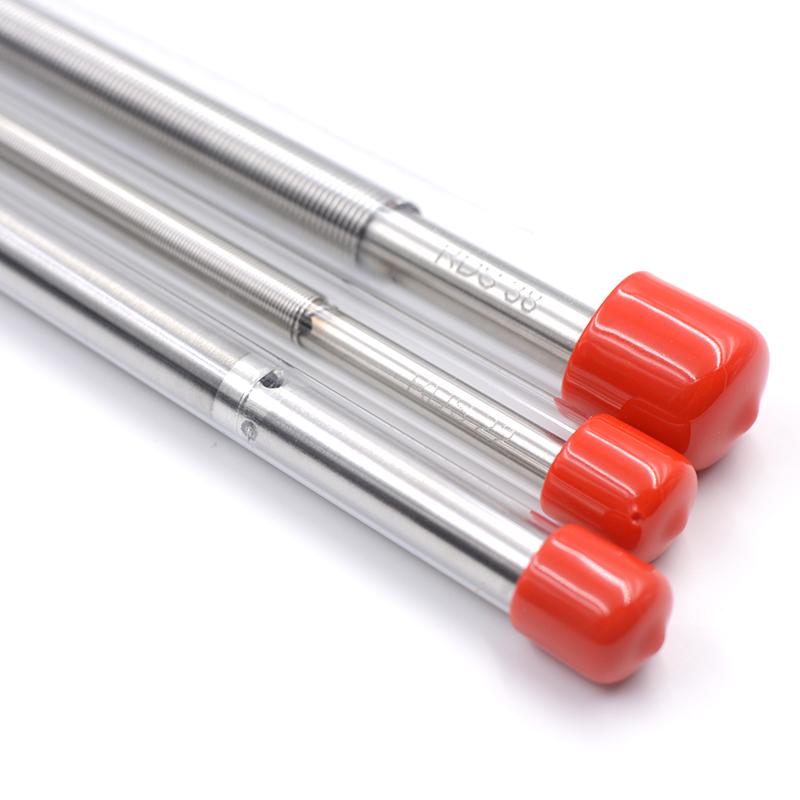

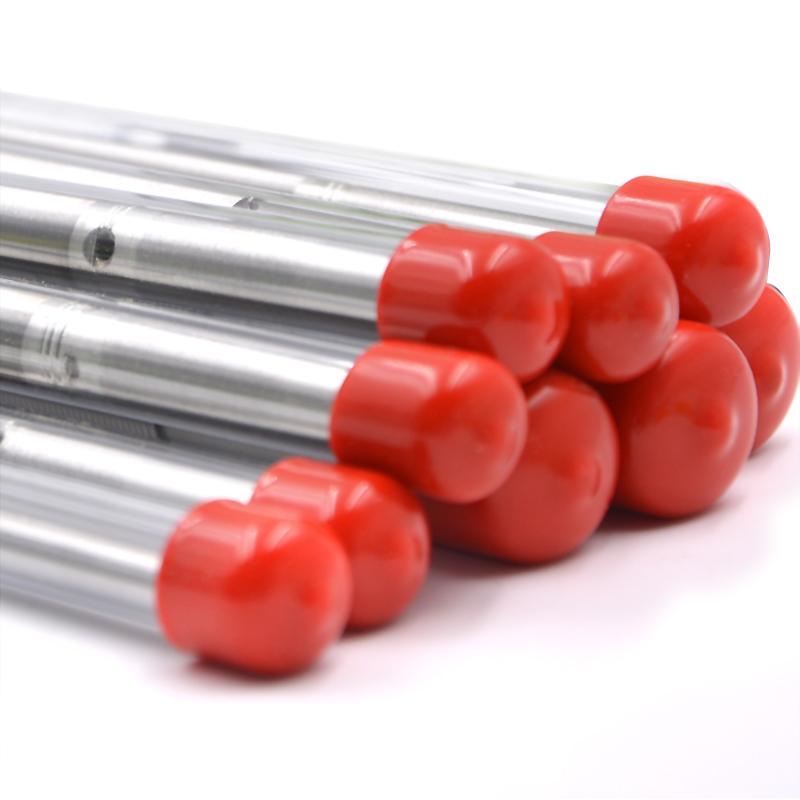

American RDS 52 #3/8 "coating coating bar is a wide-wound stainless steel Spreader coating bar. Spreader wet film thickness is 118.9μm, rod diameter is 9.5mm, made of stainless steel, with wear resistance and corrosion resistance. This product is suitable for wet-film with specific film thickness in the fields of Coating, inks, paints, Resin, Gloss oil, etc.
Features
1. Made of stainless steel, wear-resistant and corrosion-resistant
2. Wire-wound production process, Spreader accuracy
3.Fixed wet film thickness of 118.9μm
4. Steel Wire Diameter 1.32mm, Spreader Uniform
5. Total length 400mm, application width 300mm, easy to operate
Principle
The Applicator rod uses a wire-wound design. A uniform gap is formed on the surface of the rod body through stainless steel wire. When the coating bar moves on the surface of the substrate, the Coating forms a wet-film of a specific thickness through the wire gap. The wire-wound diameter of 1.32mm determines that the wet film thickness of the Spreader is 118.9μm.
Applications
Coatings, inks, paints, Resins, Gloss oil
Steps
1. Coating evenly on the surface of the substrate
2. Hold both ends of the coating bar parallel to the substrate surface
3. Push the coating bar forward at uniform speed
4. Spreader cleaning coating bar surface residue Coating
Notice
• Make sure the coating bar surface is clean and drying before use
• Keep the coating bar parallel to the substrate surface during operation
• Avoid scraping wire-wound surfaces with sharp objects
• Clean up Residual Coatings in time after use
• Avoid heavy pressure or collisions when storing
