Overview

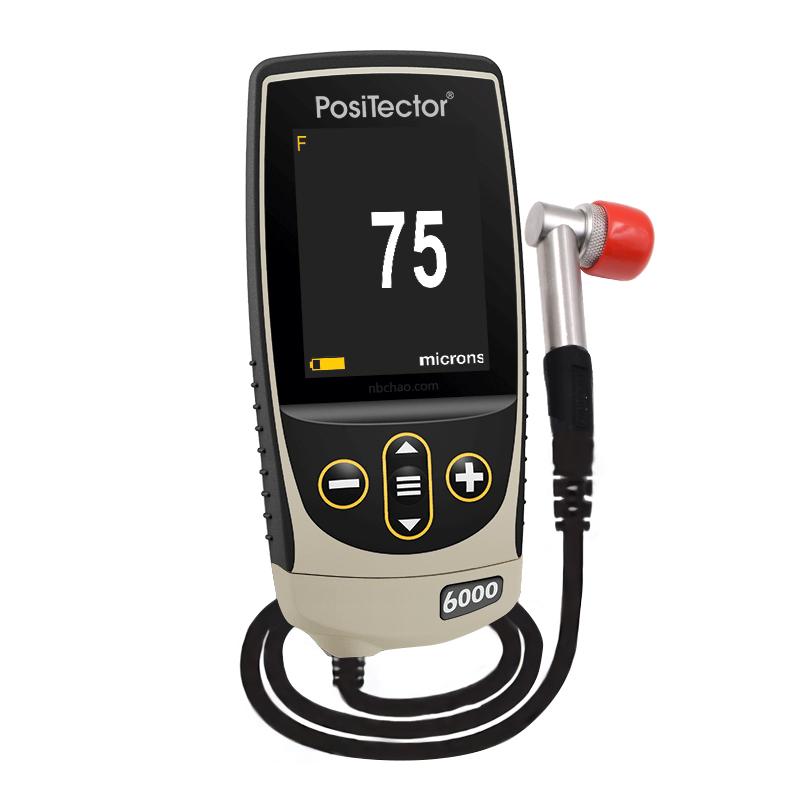

The PosiTector 6000 NRS1 Coating thickness gauge is a standard PosiTector 6000 series thickness gauge from the US Defelsko brand. It uses a monochrome display and is equipped with a 90 degree Probe for Coating thickness measurement in narrow occasions. The instrument has a measurement range of 0 to 1500 microns, can store 250 readings, supports browsing and downloading, and has the characteristics of accurate measurement, durability and versatility. It meets many international standards and is suitable for nonconductive coating measurement on non-ferrous metal substrates.
Features
1. Measurement range: 0~ 1500 microns; 2. High Accuracy: error range +/- 1%, resolution 0.1 microns; 3. Probe design: NRS1 Probe (90 ° universal), suitable for narrow occasions; 4. Data storage: can store 250 Measured values; 5. Statistical functions: support measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation; 6. Power convenience: use 3 * AAA alkaline battery; 7. Protection Rating: IP65, strong durability; 8. Interface: equipped with USB interface, support data download; 9. Supporting software: Provide PosiSoft software suite; 10. Multi-language support: System languages include Chinese and English.
Principle
The PosiTector 6000 NRS1 Coating thickness gauge is based on the eddy Current principle for measurement. High Accuracy and stable measurement results are achieved by detecting the thickness of nonconductive coatings on non-ferrous metal substrates by Probe.
Applications
Non-ferrous metal substrate, nonconductive coating environment
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline batteries; 2. Turn on the power supply of the instrument; 3. Select the system language (Chinese or English); 4. Use NRS1 Probe to make measurements on nonconductive coatings on non-ferrous metal substrates; 5. Read measurement results and view statistical information; 6. Connect to the computer through the USB interface and use PosiSoft software to download and store data.
Notice
• Only suitable for non-ferrous metal substrates and nonconductive coating environments; • Avoid use in extreme temperatures or Humidity conditions; • Periodically calibrate to ensure measurement accuracy; • Use Defelsko calibrated STDS1 and STDA1 to calibrate; • Pay attention to battery power and replace it in time; • Ensure stable instrument connection when storing data; • Follow IP65 Protection Ratings to avoid liquid immersion.
