Overview

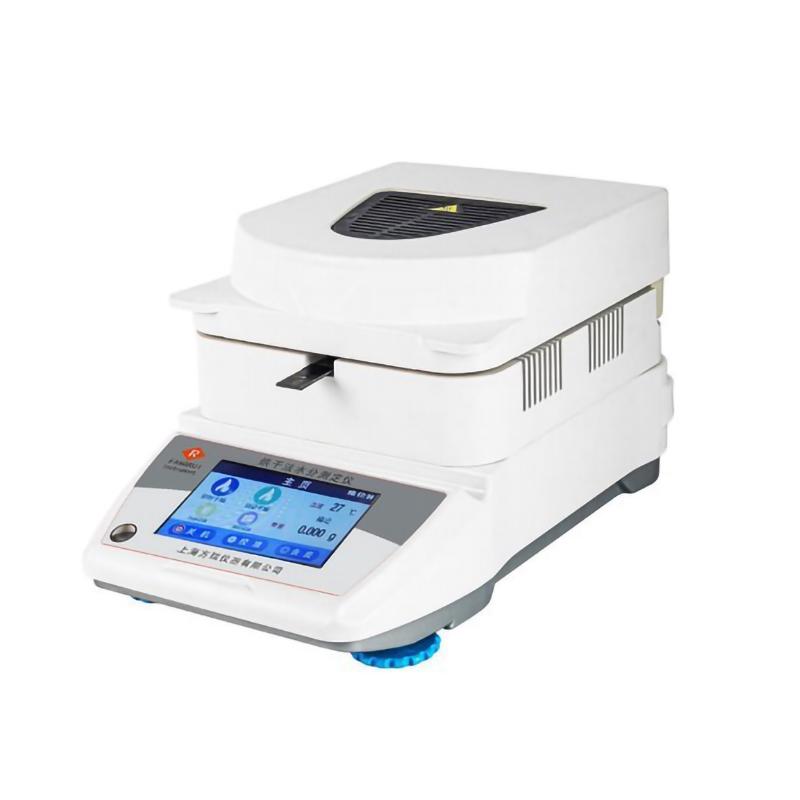

FANGRUI DHS-16-B Moisture Analyzer uses high-performance imported electronic components and High Accuracy German HBM Electronic Balance Sensor to quickly and accurately test the weight loss and moisture of samples through halogen lamp drying method, with the characteristics of high data Repeatability and small deviation. The instrument is suitable for laboratories and production processes in chemical, plastic, rubber, food, grain, ore, steel, agriculture and forestry, tea, Spinning & weaving, papermaking, fire doors, coal and other industries, and can test various sample states such as fragments, powders, particles, viscosity, liquids, and fibers.
Features
1. High-performance imported electronic components and German HBM Sensor
2. Capacity 50g, weighing readability 0.001g
3. Moisture readability 0.01%, Repeatability ≤ +/- 0.2%
4.5.5 inch color screen LCD touch screen display
5. Effective ring halogen lamp heating source, Temperature range RT + 60~ 160 ℃
6. Moisture Precision +/- 0.5% (sample ≥ 5g)
7. Support automatic timing measurement, Timer Range 0~ 99min
8. Equipped with RS232 Printing Interface, can connect to computer
9. Sample drying record 8 times
10. Aluminum alloy base, ABS plastic inner plating metal film material
Principle
The Moisture Analyzer uses the principle of halogen lamp drying method to heat dry the sample through the halogen lamp heating source, and cooperates with the High Accuracy Electronic Balance Sensor to monitor the weight loss of the sample in real time and calculate the Moisture content of the sample. The instrument automatically records the weight change during the drying process, and finally obtains accurate moisture measurement results.
Applications
Chemical, plastic, rubber, food, grain, ore, steel, agriculture and forestry, tea, Spinning & weaving, paper, fire door, coal
Standards
The specific standards not mentioned in the product profile are met
Steps
1. Place the sample on the φ 100mm pan
2. Set test parameters through 5.5-inch color LCD touch screen
3. Select the automatic timing measurement method and set the 0~ 99min Timer Range
4. The halogen lamp heating source starts to work, Temperature range RT + 60~ 160 ℃
5. Instrument automatically monitors sample weight loss and calculates Moisture content
6. After the test is completed, you can connect to a computer or printer through the RS232 interface to output data
Notice
• Power supply voltage 220V 400W
• Sample weight is recommended to be ≥ 5g to ensure determination Precision +/- 0.5%
• Temperature regulation tolerance is +/- 1 ° C
• Net weight of the instrument 2.9kg, gross weight 4.2kg, need to pay attention when handling
• Dimension 330 * 480 * 140mm, make sure there is enough space
• Before use, please confirm that the sample condition is suitable for testing (debris, powder, granules, viscous, liquid, fiber)
