Overview

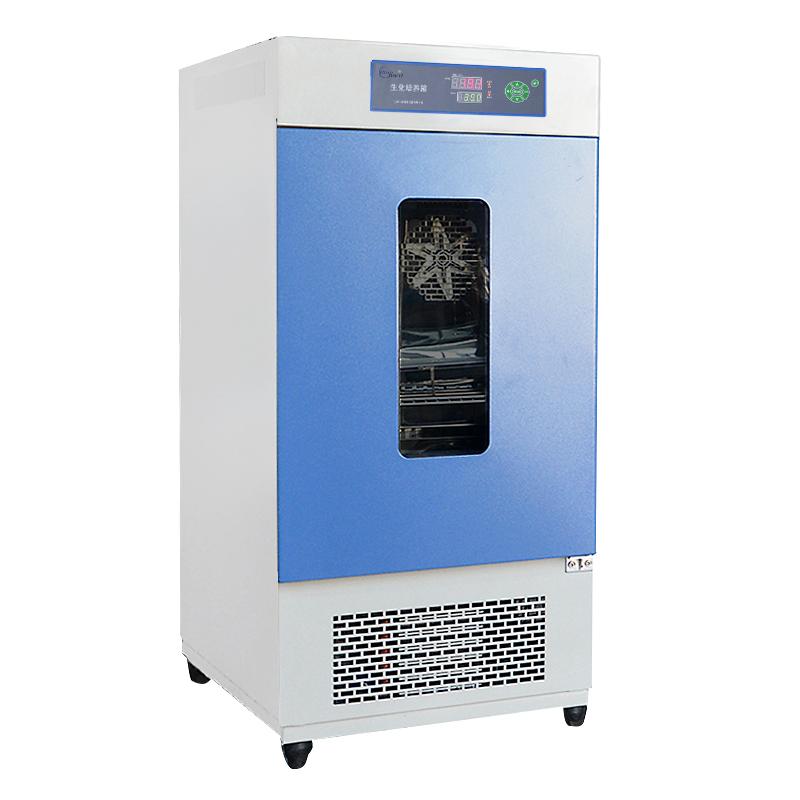

YIHENG LRH-150 biochemistry cultivating box is an efficient and low energy consumption special thermostatic equipment. It adopts brand Compressor and circulating fan, which not only promotes energy saving, but also has a long service life and reduces the cooling time by more than 40% compared with traditional low temperature equipment. It is suitable for scientific research, universities and production departments such as environment protection, drug inspection, agriculture and livestock, aquatic products, etc. It is used for water body analysis, BOD determination, bacteria, molds, microorganisms foster preservation, plant cultivation and breeding tests.
Features
1. Mirror stainless steel liner, four corners half arc design, easy to clean, adjustable shelf spacing.
2. Brand Compressor, using environmentally friendly refrigerant (R134a), effective, low energy consumption, promote energy saving.
3. Microcomputer PID temperature controller, accurate and reliable temperature control, less fluctuation, with timing function.
4. The three-speed speed control of the circulating fan speed avoids the volatilization of the sample due to excessive air volume during the test.
5. Equipped with an independent temperature limit alarm system, it will automatically interrupt when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional)
6. With a printer or RS485 interface, it can be connected to a printer and a computer, and can record changes in temperature parameters. (optional)
7. LCD screen display, menu operation. (The "F" in the model has this function)
Principle
The biochemistry cultivating box realizes high-efficiency refrigeration and air circulation through brand Compressor and circulating fan, and adopts microcomputer PID temperature controller to precisely adjust the temperature to ensure stable temperature in the box. The circulating fan speed can be adjusted in three gears to avoid sample volatilization. At the same time, an independent temperature limit alarm system can be selected to automatically interrupt the operation when the temperature exceeds the limit to ensure the safety of the experiment.
Applications
Environmental protection, drug inspection, agricultural livestock, aquatic products and other scientific research, universities, production departments
Steps
Connect the power supply and ensure that the voltage is AC 220V 50Hz.
2. Turn on the power switch of the device and set the required temperature parameters through the LCD screen or menu operation.
3. Adjust the circulating fan speed gear as required.
4. Place the sample on an adjustable spacing shelf.
5. Start the equipment and monitor temperature changes to ensure stable operation.
6. After the experiment, turn off the power and clean the liner.
Notice
• Ambient Temperature should be kept at + 5~ 30 ℃.
• Power supply voltage check before use meets AC 220V 50Hz requirements.
• Avoid opening and closing doors frequently when the equipment is running to prevent temperature fluctuations.
• Clean the liner regularly to maintain hygiene.
• Optional functions such as independent temperature limit alarm system, printer or RS485 interface require additional booking, and the delivery period may be extended.
• Choose one of RS485/232 interface and printer function, and cannot be used at the same time.
• Net weight of equipment 90Kg, pay attention to safety when handling.
