Overview

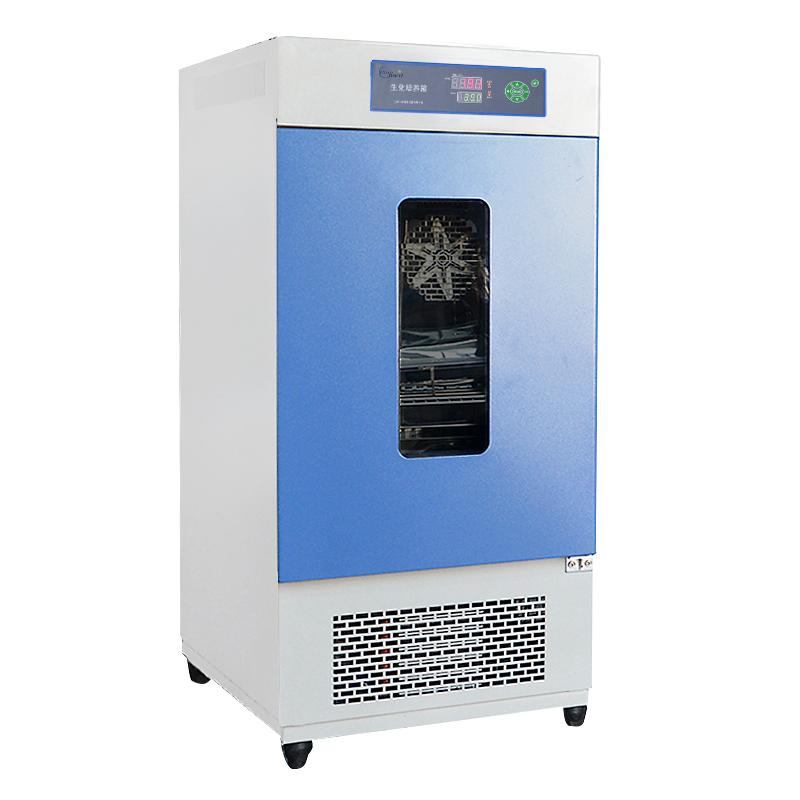

YIHENG LRH-150F biochemistry cultivating box is a high-efficiency and energy-saving special thermostatic equipment. It adopts brand Compressor and circulating fan to effectively reduce energy consumption and noise, and reduce cooling time by more than 40% compared with traditional low temperature equipment. It is suitable for scientific research, universities and production departments such as environment protection, drug inspection, agriculture, livestock, aquatic products, etc. It is used for water body analysis, BOD determination, bacteria, mold, microbial foster preservation, plant cultivation and breeding tests.
Features
1. Mirror stainless steel liner, four corners half arc design, easy to clean, adjustable shelf spacing.
2. Brand Compressor, using environmentally friendly refrigerant (R134a), effective, low energy consumption, promote energy saving.
3. Microcomputer PID temperature controller, accurate and reliable temperature control, less fluctuation, with timing function.
4. The three-speed speed control of the circulating fan speed avoids the volatilization of the sample due to excessive air volume during the test.
5. Equipped with an independent temperature limit alarm system, it will automatically interrupt when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents. (optional)
6. With a printer or RS485 interface, it can be connected to a printer and a computer, and can record changes in temperature parameters. (optional)
7. LCD screen display, menu operation. (The "F" in the model has this function)
Principle
The biochemistry cultivating box realizes high-efficiency refrigeration and air circulation through brand Compressor and circulating fan, and adopts microcomputer PID temperature controller to precisely adjust the temperature in the box to ensure the thermostatic environment. The three-speed speed control of the circulating fan controls the air volume to avoid sample volatilization, and the independent temperature limit alarm system automatically interrupts the operation when it exceeds the temperature to ensure the safety of the experiment.
Applications
Environmental protection, drug inspection, agricultural livestock, aquatic and other scientific research, universities and production departments
Steps
1. Connect the power supply (AC 220V 50Hz).
2. Set the required temperature through the microcomputer PID temperature controller (Temperature range 0~ 60 ℃, resolution 0.1 ℃).
3. Adjust the circulating fan speed as needed (third gear optional).
4. Place the sample on an adjustable spacing shelf.
5. Start the device and monitor temperature fluctuations and uniformity.
6. Use the timing function or optional interface to record data.
Notice
• Ambient Temperature should be kept at + 5~ 30 ℃.
• Optional functions such as independent temperature limit alarm system, printer or RS485 interface require additional booking.
• Choose one of RS485/232 interface and printer function, and cannot be used at the same time.
• The delivery period is extended by 7 days when the purchase is increased.
• Power supply voltage is AC 220V 50Hz to avoid overload.
• Regularly clean the mirror stainless steel liner to maintain hygiene.
