Overview

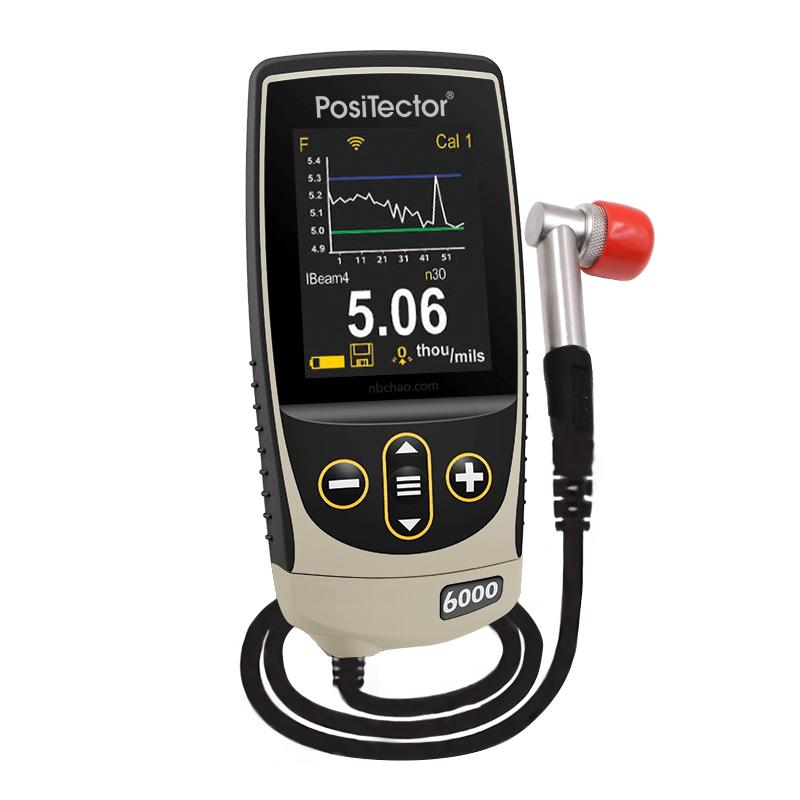

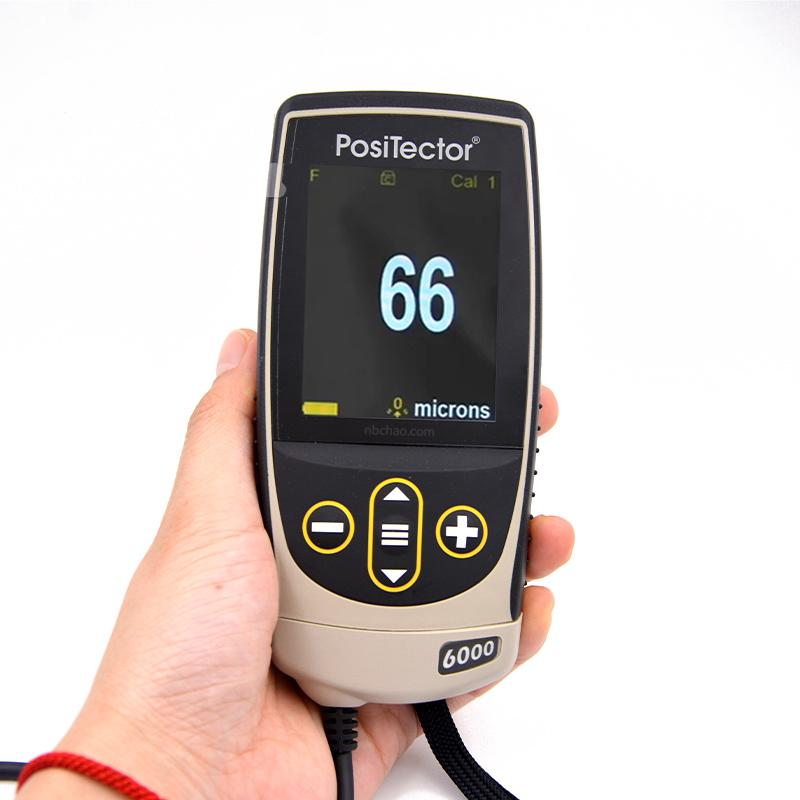

The Defelsko PosiTector 6000 FRS3 Coating thickness gauge is the Defelsko Advanced Coating thickness gauge for the measurement of nonmagnetic coatings of ferrous metals. Measurement range is 0 to 1500 microns. The instrument is equipped with a 90 ° Probe for narrow measurement situations, with a USB interface for PC management data, and a color LCD display for measurement data and real-time graphics.
Features
1. Measurement range 0~ 1500μm, resolution 0.1μm, error range +/- 1%
2.Equipped with 90 ° FRS3 Probe for narrow measurement

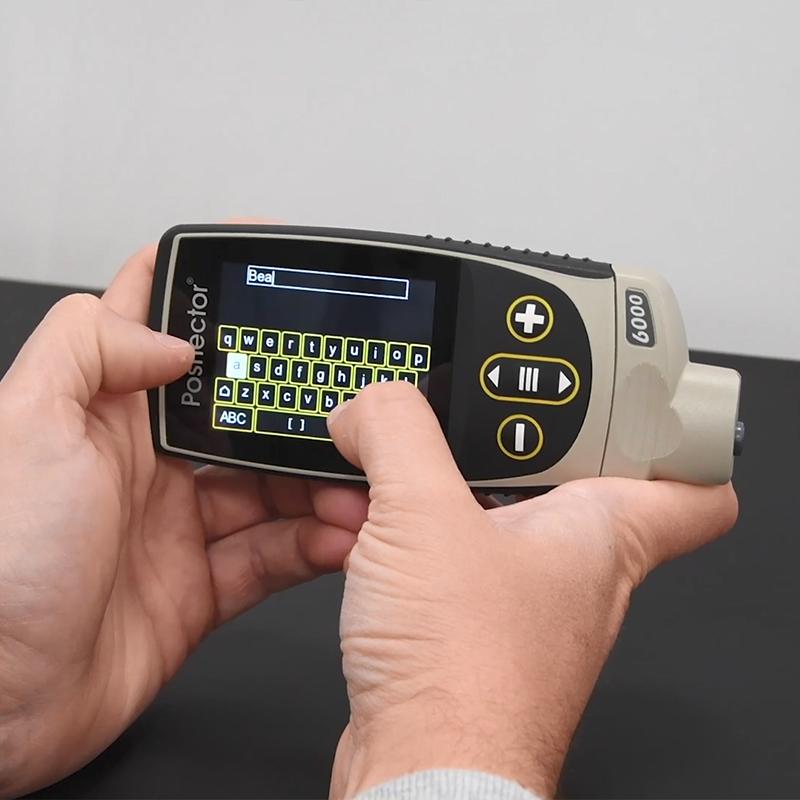

3.2.8-Inch Color Touchscreen, supports real-time graphical display
4. Support USB and Bluetooth Interface, can connect PC to manage data
5. Built-in statistics to calculate measurement count, MAX Maximum, MIN Minimum, Average and Standard Deviation
6. Large data storage capacity, can store 250,000 Measured values and 1000 packets
7. Protection Rating IP65, adapt to harsh environment
Measurement speed up to 180 + readings per minute
9. Support Chinese and English system languages
10.Light weight, only 137g (without battery), good portability
Principle
PosiTector 6000 FRS3 Coating thickness gauge uses magnetic Induction principle for measurement, suitable for nonmagnetic Coating thickness detection on ferrous metal substrates.
Applications
Coating thickness measurement of ferrous metal substrate nonmagnetic
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Power on and select the system language (Chinese or English)
3. Probe contact with the measured surface for measurement
4. Touchscreen measurement data and graphics
5. Connect to a PC using a USB or Bluetooth interface and manage data through PosiSoft software
6. Save screen images (up to 100)
Notice
• Only for nonmagnetic coating measurements on ferrous metal substrates
• Make sure the battery is fully charged before use
• Keep Probe in vertical contact with the measured surface during measurement
• Regularly calibrate using Defelsko calibrating standards (STDS1, STDA1)
• Note that the Instrument Protection Rating is IP65, but it is still necessary to avoid extreme environments
• Data storage packets up to 1000, need to be properly managed
