Overview

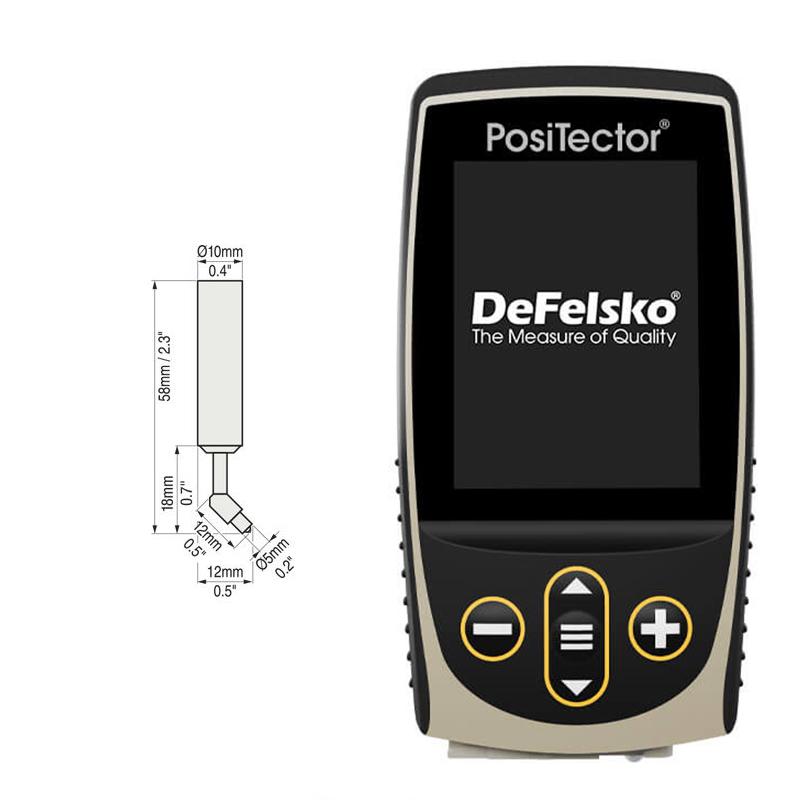

The Defelsko PosiTector 6000 F45S1 Coating thickness gauge is equipped with a 45 ° measurement Probe, the smallest Probe for measurements in small pieces and confined environments. The instrument features a color LCD screen for better visibility, stores 250 measurement readings, and has a screenshot function to save recorded screen images.
Features

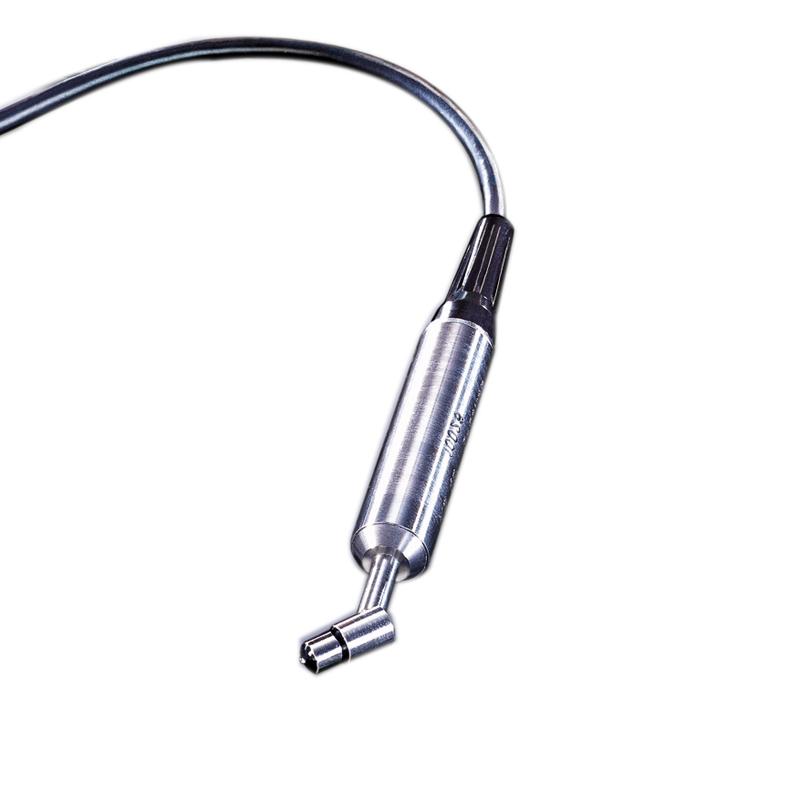

1. Equipped with 45 ° Micro Probe for small and narrow environment area measurement
2. Use a color LCD screen for better visual perception
250 sets of measurement readings can be stored
4. With screenshot function, it can save and record screen images
5. Measurement speed, more than 60 readings per minute
6. Protection Rating IP65
7. Light weight, only 137g (without battery)
8. Support Chinese and English system languages
Principle
Coating thickness gauge based on magnetic Induction principle is suitable for nonmagnetic coating environment measurement on ferrous metal substrate.
Applications
Small piece measurement, narrow environment measurement
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps

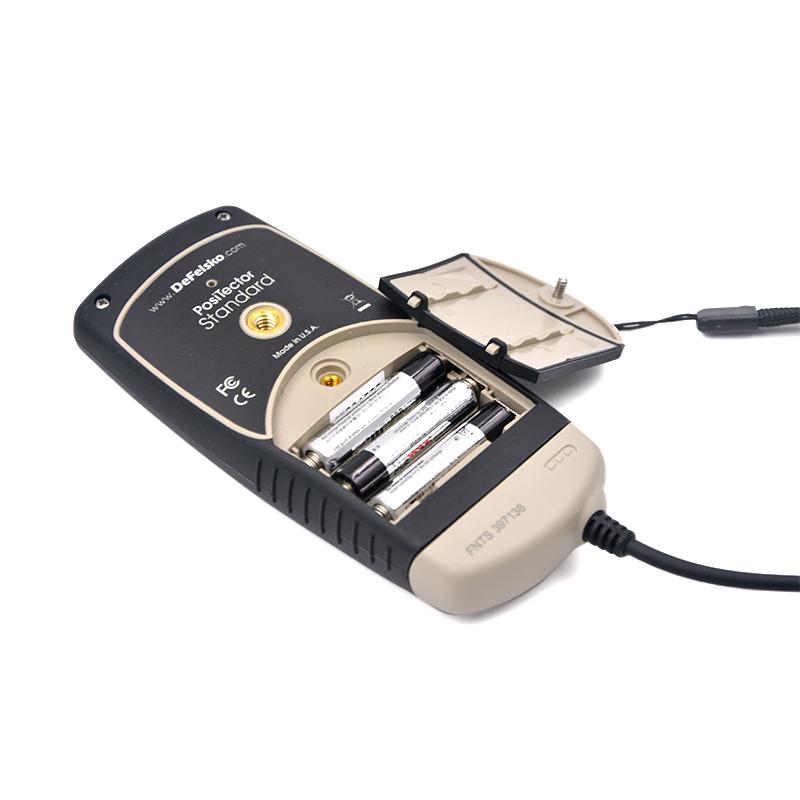

1. Install 3 * AAA alkaline battery
2. Select the system language (Chinese or English)
3. Use F45S1 Probe for measurement

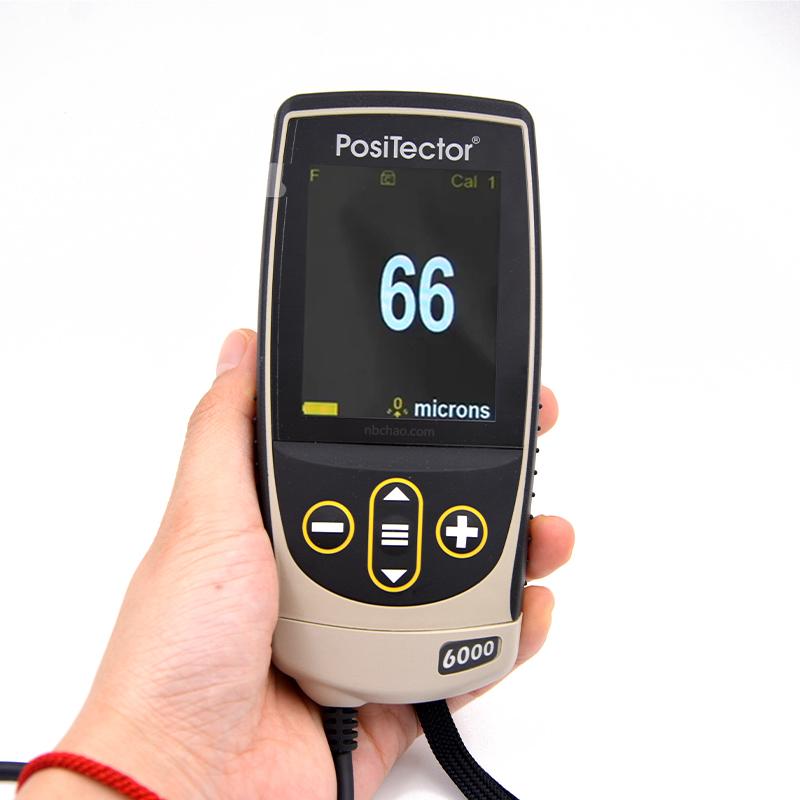

4. Read Data via Color Touchscreen
5. Use the USB interface to connect the PosiSoft software suite for data transfer
6. Save screen images and data
Notice
• Only suitable for nonmagnetic coating environments on ferrous metal substrates
• Make sure the battery is installed correctly before use
• Keep Probe in vertical contact with the surface during measurement
• Regularly calibrate using Defelsko calibrating standards (STDS2, STDA2)
• Avoid use in extreme temperatures or Humidity environments
• Be aware of capacity limitations when storing data (1000 Measured values and 100 screen images)
