Overview
The Defelsko film thickness gauge PosiTector 6000 F45S3 is an advanced magnetic thickness gauge of the Defelsko Positector 6000 series, with a 45 ° micro-abrasion resistance Probe, dedicated to the measurement of nonmagnetic coatings on ferrous metal substrates in narrow environments. The thickness gauge can store up to 100,000 reads locally, and can also be connected to a computer via the USB interface for larger Data storage, and can also be connected to a printer to print data. The PosiTector 6000 F45S3 Coating thickness measurement meter is fast and backlit, suitable for dark or noisy environments.
Features

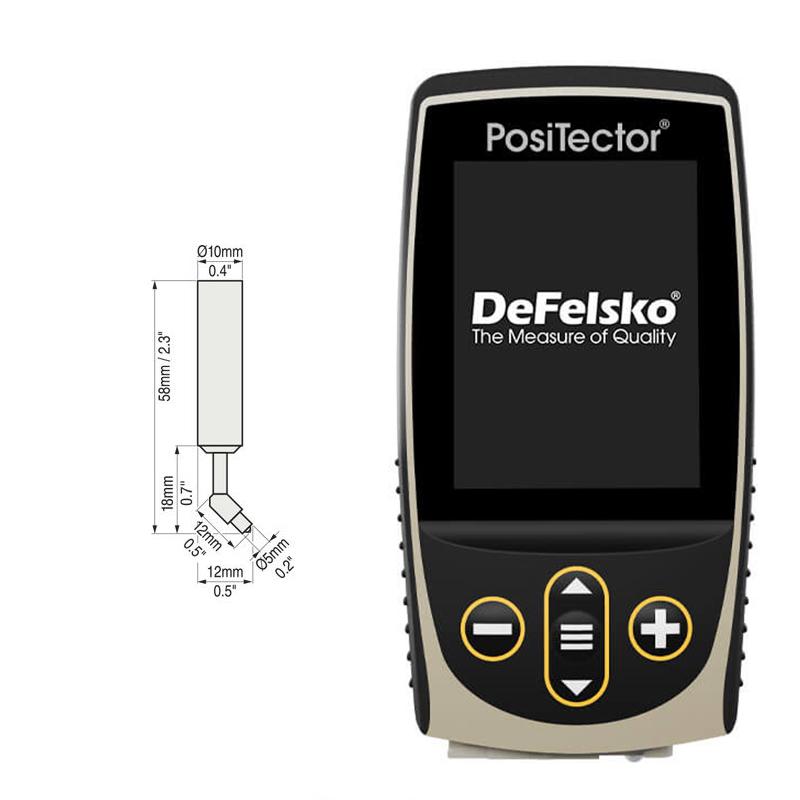

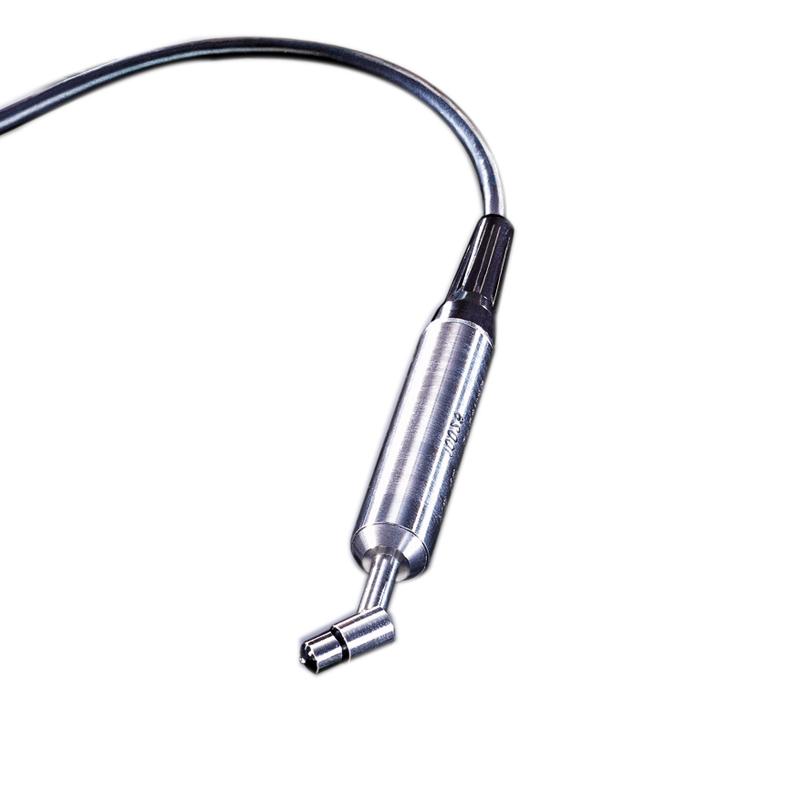

1. Probe with 45 ° micro abrasion resistance for measurement in narrow environments
2. This machine can store up to 100,000 readings, and supports USB interface to connect to the computer for extended storage
3. Support connecting the printer to print data
4. Measurement speed, up to 180 + readings per minute

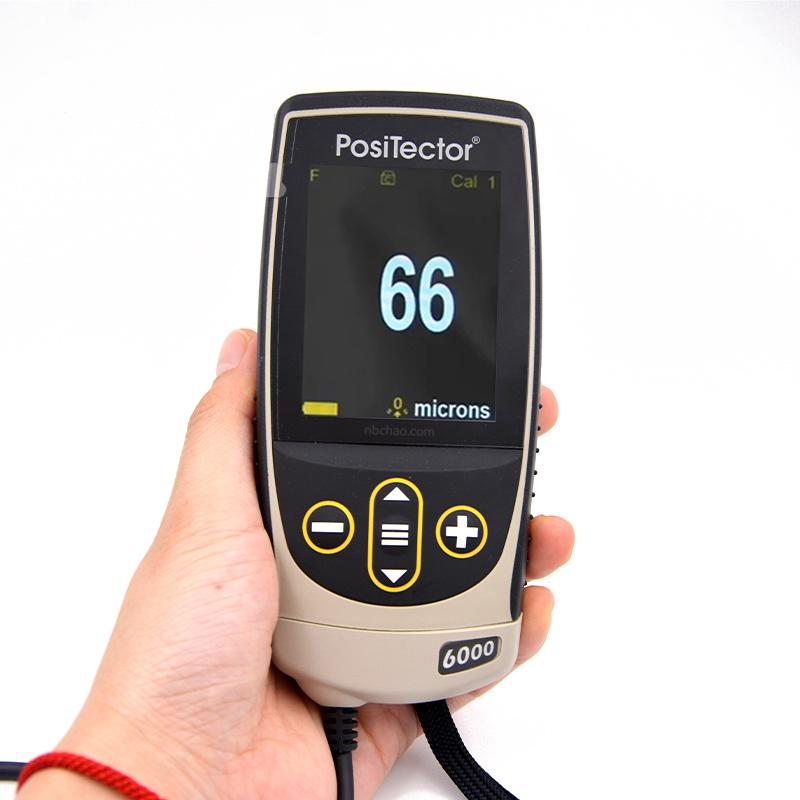

5. With backlight display function, suitable for dark or noisy environment

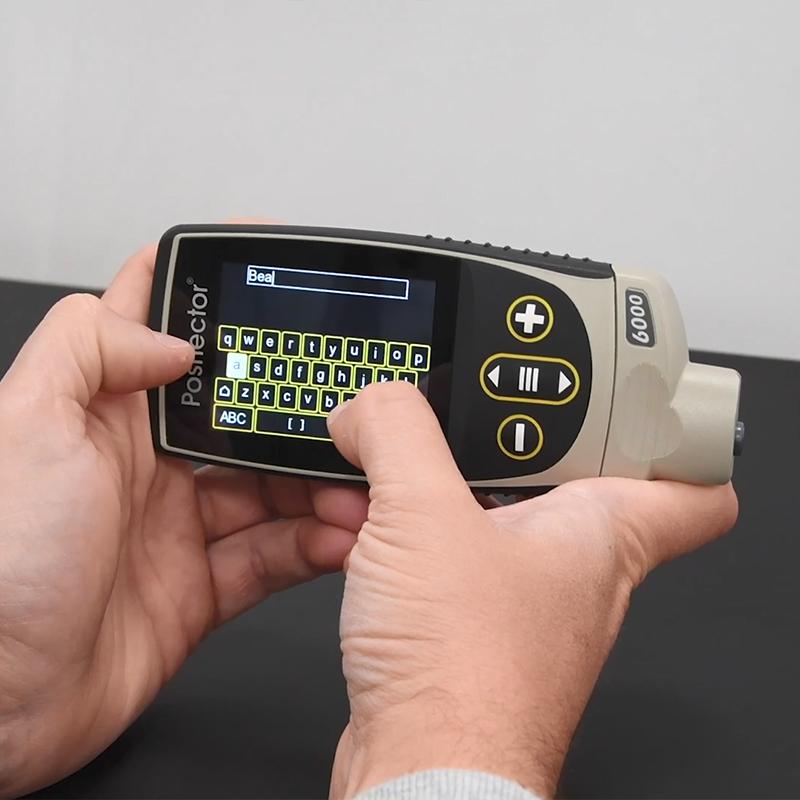

6.2.8 inch Color Touchscreen Operation
7. Support Bluetooth communication and USB interface
8. Protection Rating IP65, adaptable to a variety of working environments
9.Light weight, only 137g (without battery)
10. Support Chinese and English system languages
Principle
Using magnetic Induction principle for measurement, dedicated to nonmagnetic Coating thickness measurement on ferrous metal substrates.
Applications
Ferrous metal substrate, nonmagnetic coating environment
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps

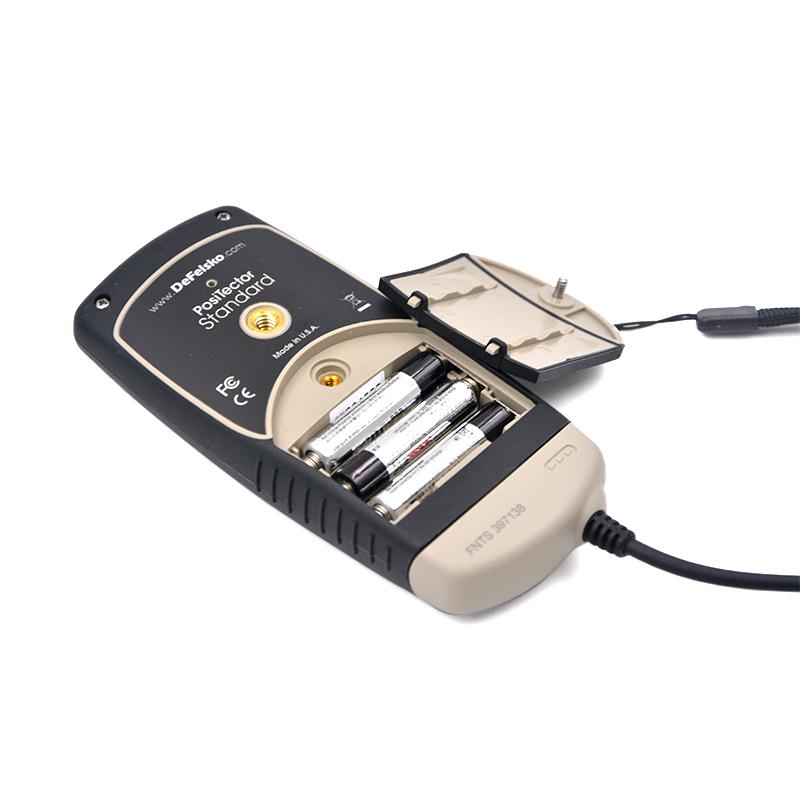

1. Install 3 * AAA alkaline battery
2. Select the system language (Chinese or English)
3. Use Probe to contact the coating surface to be tested
4. Read measurement results
5. Data transfer can be carried out by connecting the computer via USB or Bluetooth
6. Data analysis with PosiSoft software suite
7. Can be connected to the printer to print measurement data
Notice
Only for nonmagnetic coating measurements on ferrous metal substrates
• Confirm that the equipment calibrating certificate is valid before use
• Probe in full contact with the coating surface during measurement
• Regularly check the battery level to ensure normal use
• Avoid use in extreme temperatures or Humidity environments
• Pay attention to moisture and dust when storing
• Use matching calibrating standards STDS2 and STDA2 for regular calibrating
