Overview

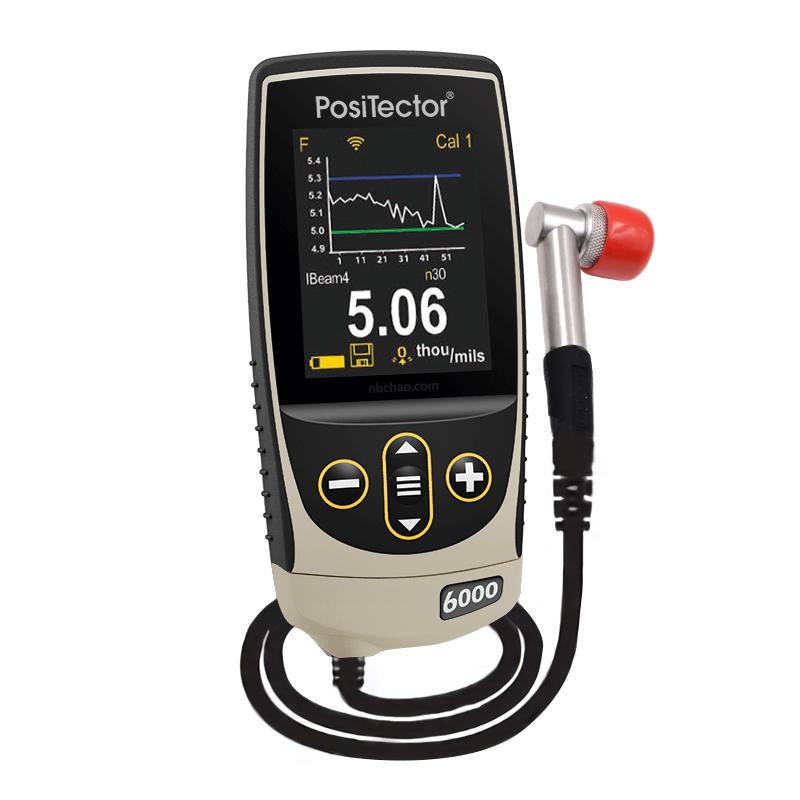

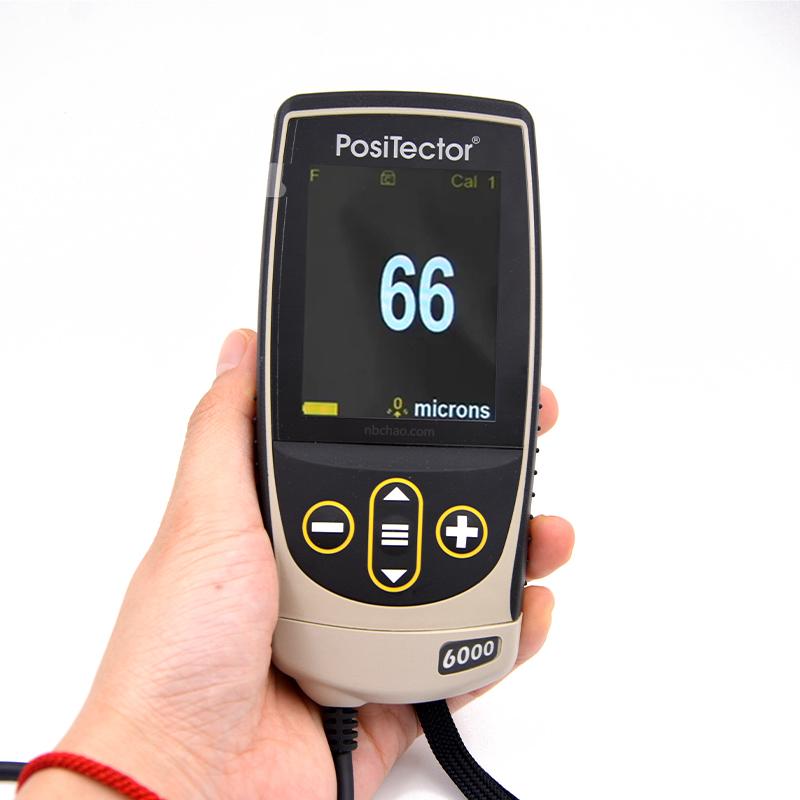

Defelsko PosiTector 6000 NRS3 is an eddy current Coating thickness gauge, equipped with 90 ° abrasion resistance Probe, suitable for measurement of nonconductive coatings on non-ferrous metal substrates (such as aluminum, copper), Measurement range 0~ 1500 microns, color LCD display and support screenshot function.
Features
1. Using NRS3 Probe (90 ° type), good abrasion resistance
2. Measurement range 0~ 1500μm, resolution 0.1μm
3.2.8 inch Color Touchscreen Display
4. Support screenshot function, can save 100 screen images
5. With statistical functions (measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation)
6. Support USB and Bluetooth Interface
7. Large data storage capacity (250,000 Measured values, 1000 packets)
8. Protection Rating IP65
9. Measurement speed (more than 180 readings per minute)
10. Equipped with PosiSoft software suite
11. Support Chinese and English system languages
Principle
Using the eddy Current Measurement principle, the electromagnetic field is generated by Probe, and the thickness of the nonconductive coating on the nonferrous metal substrate is measured.
Applications
Coatings, inks, plastics, leather, building materials, chemicals
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps

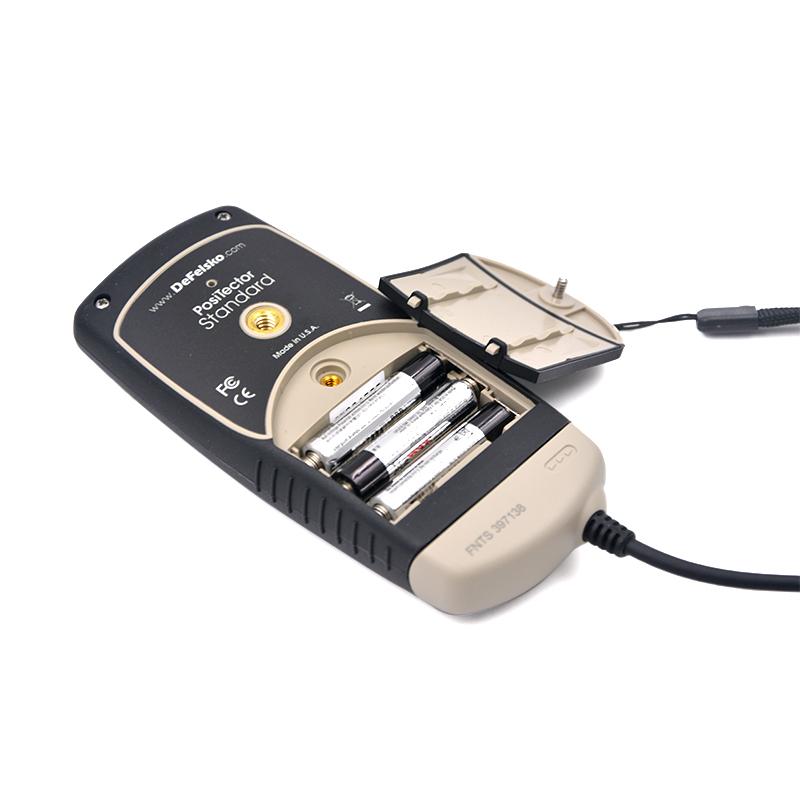

1. Install 3 AAA alkaline batteries
2. Select the system language (Chinese or English)
3. Using NRS3 Probe for measurement
4. View measurement results and statistics through Touchscreen
5. Transfer data using a USB or Bluetooth connection
6. Data analysis using PosiSoft software
Notice
• Only for nonconductive coating measurements on non-ferrous metal substrates
• Make sure the battery is fully charged before use
• Keep Probe in vertical contact with the coating surface during measurement
• Periodically calibrated to ensure Measurement accuracy
Avoid use in extreme environments
• Pay attention to moisture and dust when storing
