Overview

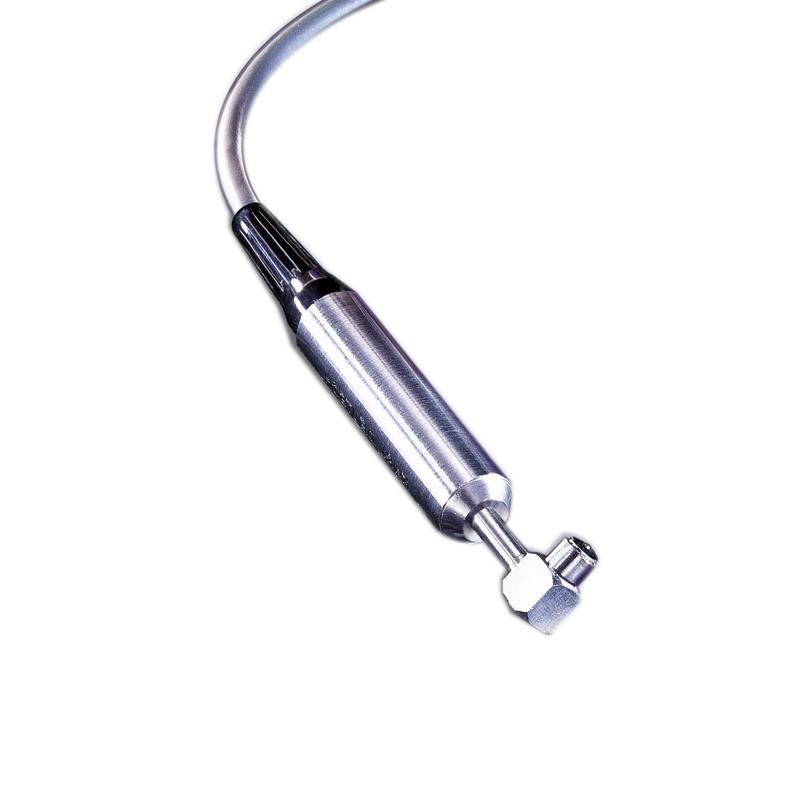

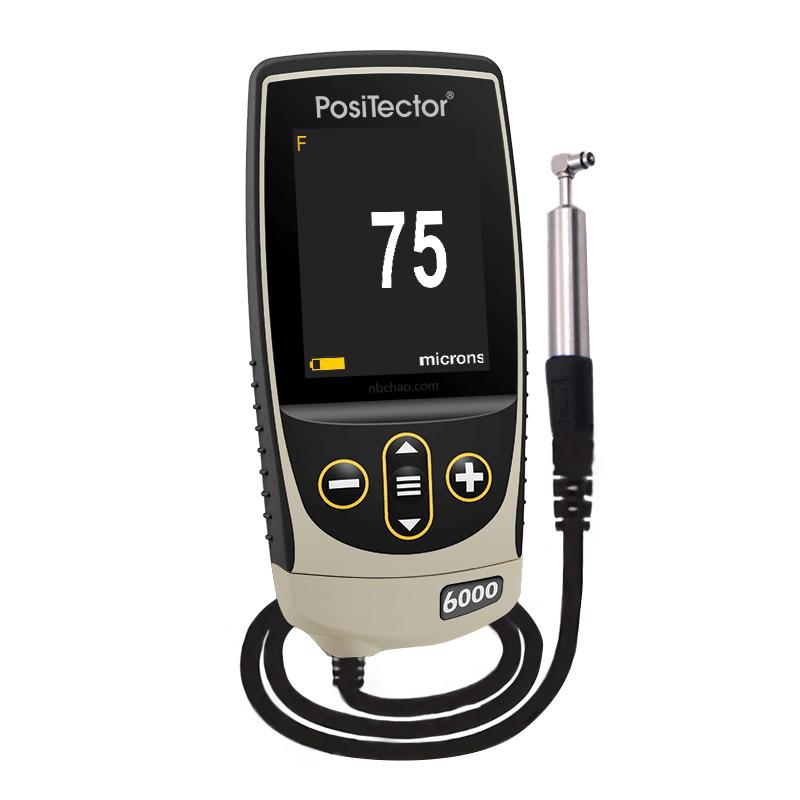

The Defelsko PosiTector 6000 N90S1 Coating thickness gauge is a cladding thickness gauge using eddy Current thickness measurement principle, with a 90 ° Probe and split structure design. The Probe is small in size, with a measurement port diameter of only 5mm, suitable for small workpieces or narrow measurement areas. Measurement range is 0~ 625 microns. The finger pinch part of the Probe is made of stainless steel, which has good abrasion resistance.
Features

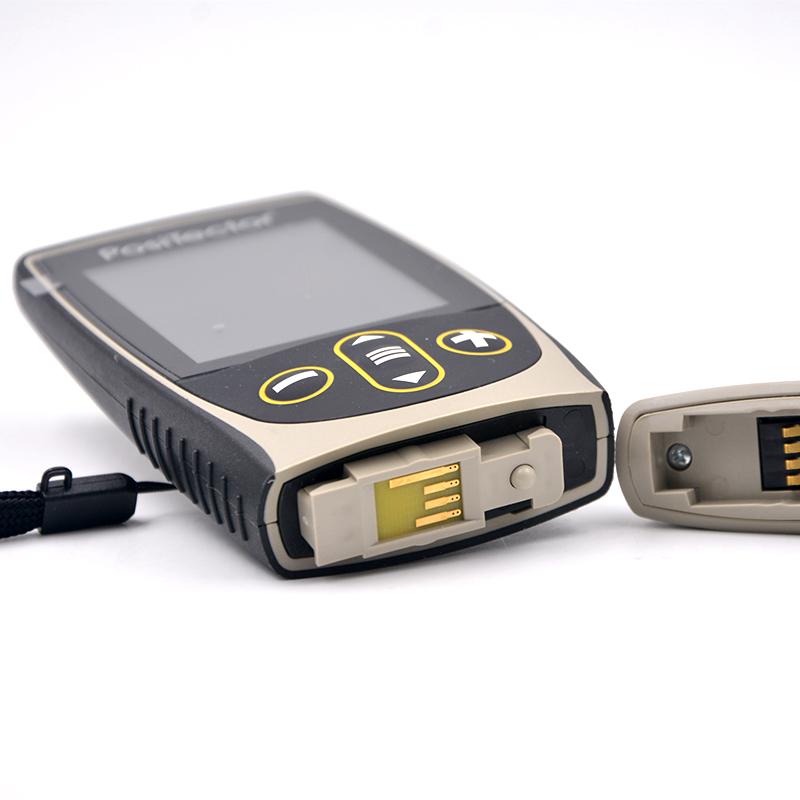

1.90 ° Probe and split structure design for easy operation
2. Probe size, measurement port diameter is only 5mm, suitable for small workpieces or narrow measurement areas
3. Probe finger pinch part made of stainless steel, with good abrasion resistance
4. Measurement range, covering 0~ 625 microns
5. High resolution up to 0.1μm

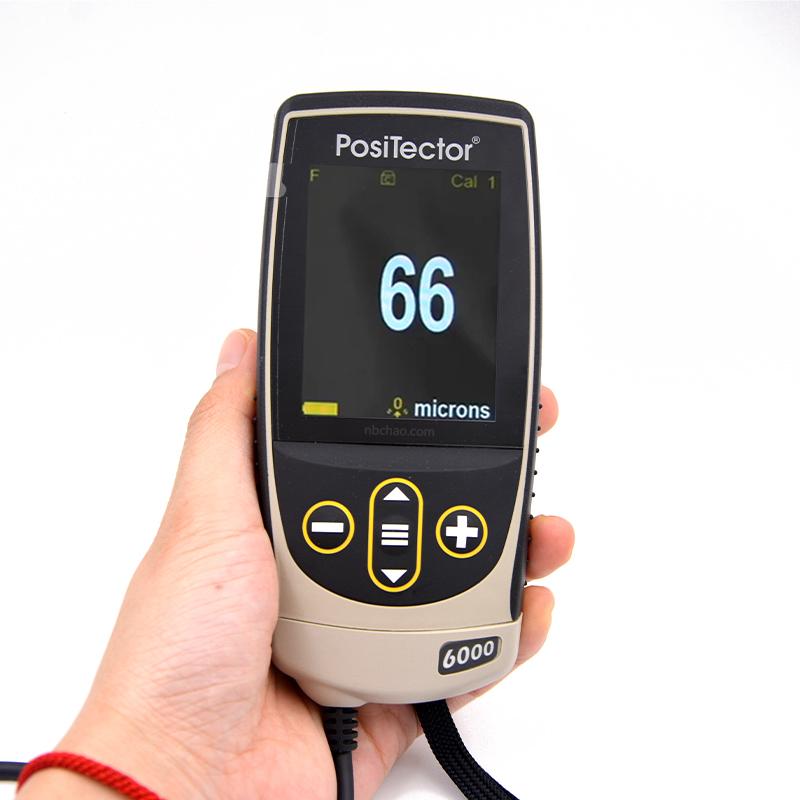

6. Equipped with 2.8-inch color Touchscreen, supports Chinese and English system languages
7. With statistical functions, including measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
8. Large data storage capacity, can store 1000 Measured values and 100 screen images
9. Protection Rating IP65, adapt to harsh environment
10. Measurement speed, can read more than 60 readings per minute
11. Provide calibrated certificate and supporting PosiSoft software suite
Principle
The Coating thickness gauge adopts the principle of eddy Current thickness measurement, which is suitable for non-ferrous metal substrates and nonconductive coating environments. The eddy Current is generated by Probe to measure Coating thickness.
Applications
Non-ferrous metal substrate, nonconductive coating environment
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps

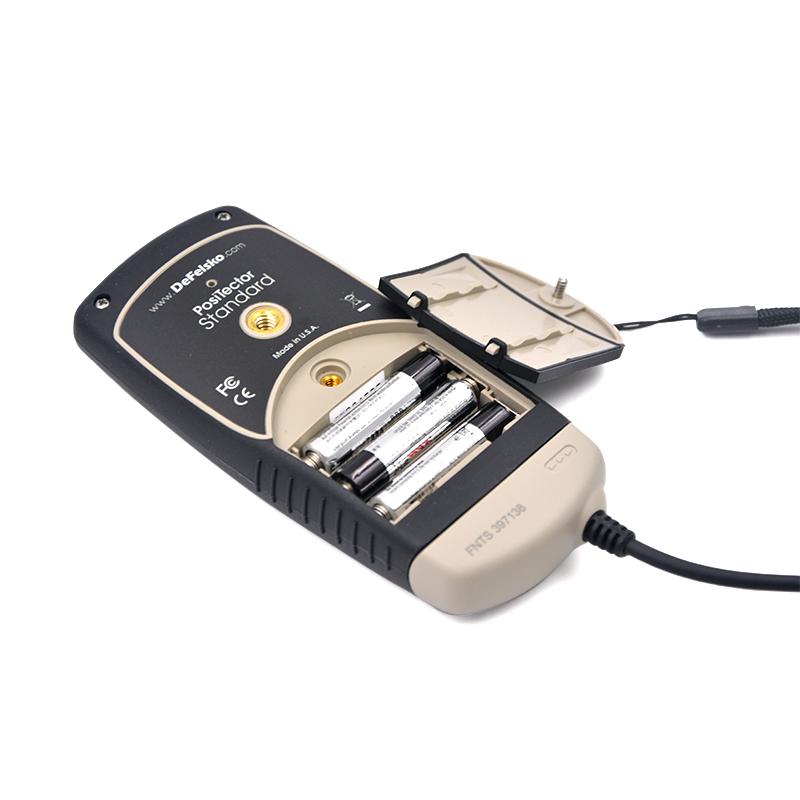

1. Install 3 * AAA alkaline battery
2. Turn on the device power supply
3. Select the system language (Chinese or English)
4. Probes placed on nonconductive coatings of nonferrous metal substrates
5. Start measurement, can take more than 60 readings per minute
6. Use the statistics function to view measurement data
7. Connect to the computer via USB interface and manage data using the PosiSoft software suite
8. Measured values and screen images
Notice
• Only suitable for non-ferrous metal substrates and nonconductive coating environments
• Make sure the battery is installed correctly before use
• Avoid excessive abrasion of Probe and check Probe status regularly
• Pay attention to capacity limitations when storing data and export data in a timely manner
• Adhere to relevant standards for calibrating and use
