Overview

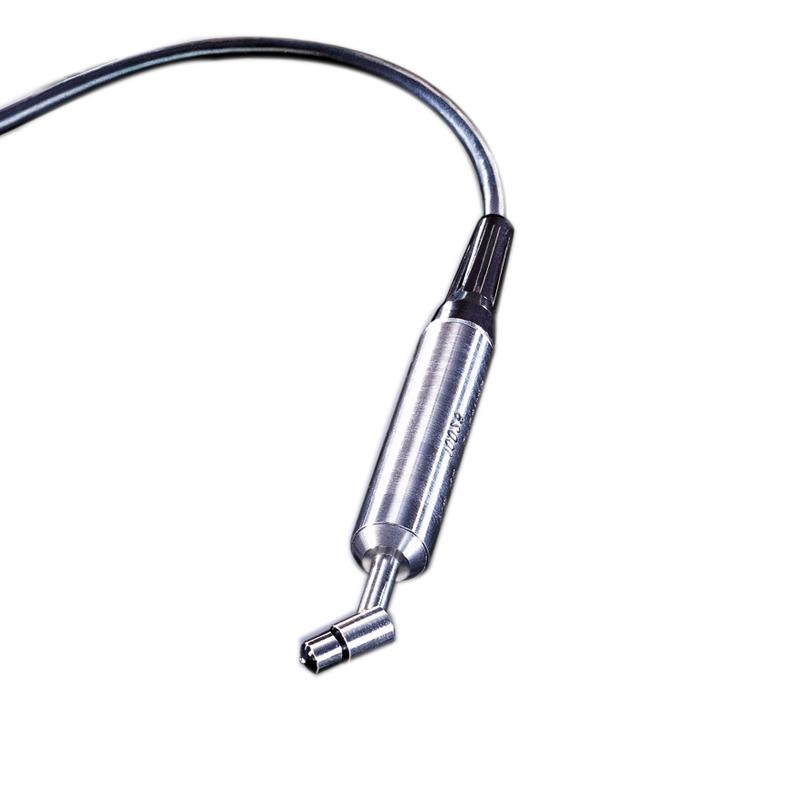

The Defelsko PosiTector 6000 N45S3 Coating thickness gauge is an advanced eddy current thickness gauge imported from the United States. It uses a color high-contrast ratio LCD screen to display graphics in real time, store up to 100,000 measurement data, and support continuous reading function. The case complies with IP65 Protection Rating and is dustproof, waterproof, solvent and acid resistant. Equipped with a 45 ° miniature Probe, it is resistant to abrasion and suitable for narrow coating area measurement.
Features

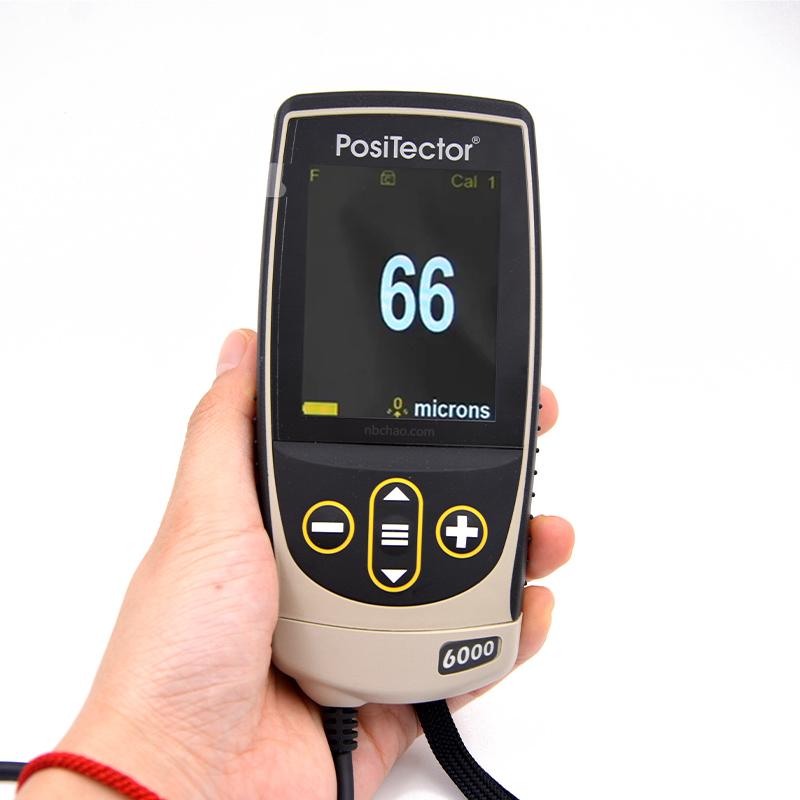

1. Color high contrast ratio LCD screen, real-time graphic display
2. Storage capacity up to 100,000 measurements
3. Continuous reading function, no need to lift Probe
4. IP65 Protection Rating, dustproof, waterproof, solvent and acid resistant

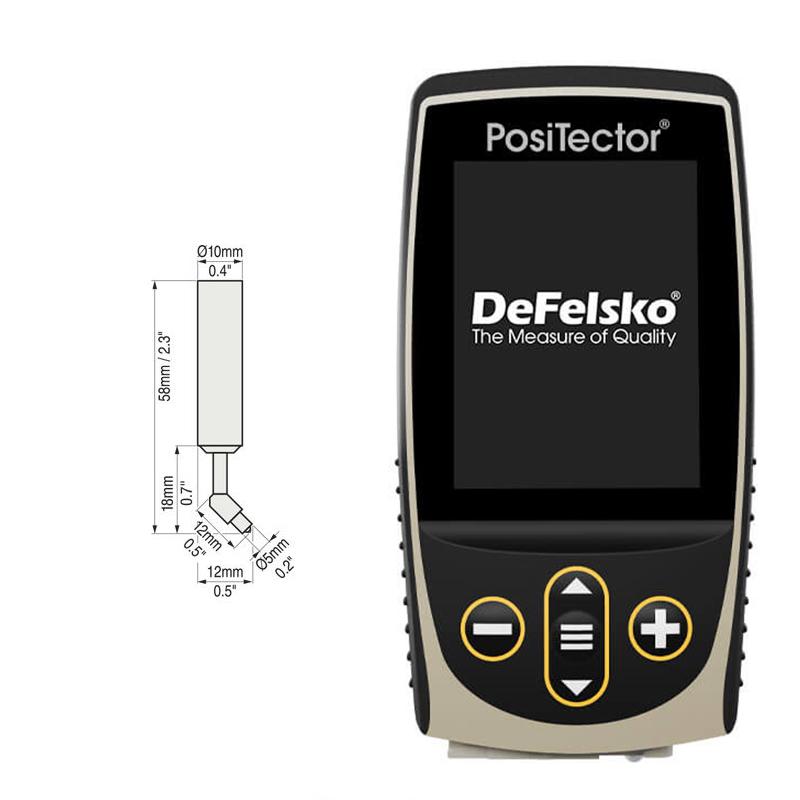

5.45 ° Miniature Probe, anti-abrasion, suitable for narrow area measurement
6. Measurement speed, more than 180 readings per minute
7. Support USB and Bluetooth Interface, supporting PosiSoft software suite
8. Lightweight and portable, weight 137g (without battery)
Principle
The PosiTector 6000 N45S3 Coating thickness gauge is based on the eddy Current principle and uses Probe to detect the thickness of nonconductive coatings on non-ferrous metal substrates for accurate measurement.
Applications
Non-ferrous metal substrate, nonconductive coating environment
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Turn on the device power supply
2. Probe measurement on nonconductive coatings on non-ferrous metal substrates
3. View real-time graphics and data through Touchscreen
4. Store measurement data or transfer via USB/Bluetooth
5. Data analysis using PosiSoft software
Notice
• Only suitable for non-ferrous metal substrates and nonconductive coating environments
• Ensure Probe maintains proper angle during measurement
Periodically calibrate equipment to maintain accuracy
Avoid use in extreme environments
• Clean Probe After Use to Extend Life
