Overview
The Defelsko PosiTector 6000 N45S1 Coating thickness gauge is a standard eddy current thickness gauge with a split 45 ° miniature Probe for the measurement of nonconductive Coating thickness on nonmagnetic metal substrates. The instrument is powerful, with a backlight and a two-color indicator, suitable for dark or noisy environments, supports USB connection to PC to transfer data, and software can be updated to keep the device up to date.
Features
1. Using eddy Current Measurement principle, Measurement range 0~ 625μm, error +/- 3%, resolution 0.1μm

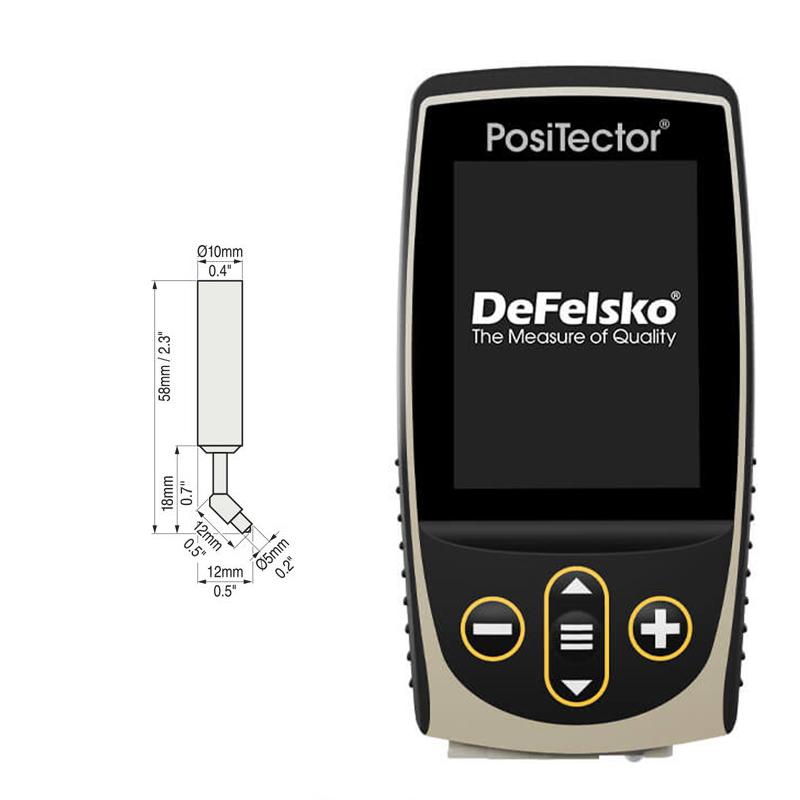

2. Equipped with N45S1 Probe (45 ° micro), suitable for non-ferrous metal substrates and nonconductive coatings
3. With backlight and two-color indicator function, easy to use in dark or noisy environment
4. Support USB interface to connect to PC, supporting PosiSoft software suite, can transfer data and update software
5.2.8-Inch color Touchscreen, supports Chinese and English system languages
6.Data storage capacity 1000 Measured values, screen image save 100
7. Protection Rating IP65, Measurement speed 60 + readings per minute
8. Statistical functions include measurement times, MAX Maximum, MIN Minimum, Average, Standard Deviation
9. Powered by 3 * AAA alkaline battery, weight 137g (excluding battery), Dimension 127 * 66 * 25.4mm
Principle
The Coating thickness gauge works based on the eddy Current principle, generating an alternating magnetic field through Probe, when Probe approaches the nonmagnetic metal substrate, the metal induced eddy current, eddy current size related to the Coating thickness, thereby accurately measuring the thickness of nonconductive coatings.
Applications
Coating thickness measurement on nonconductive substrates
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps

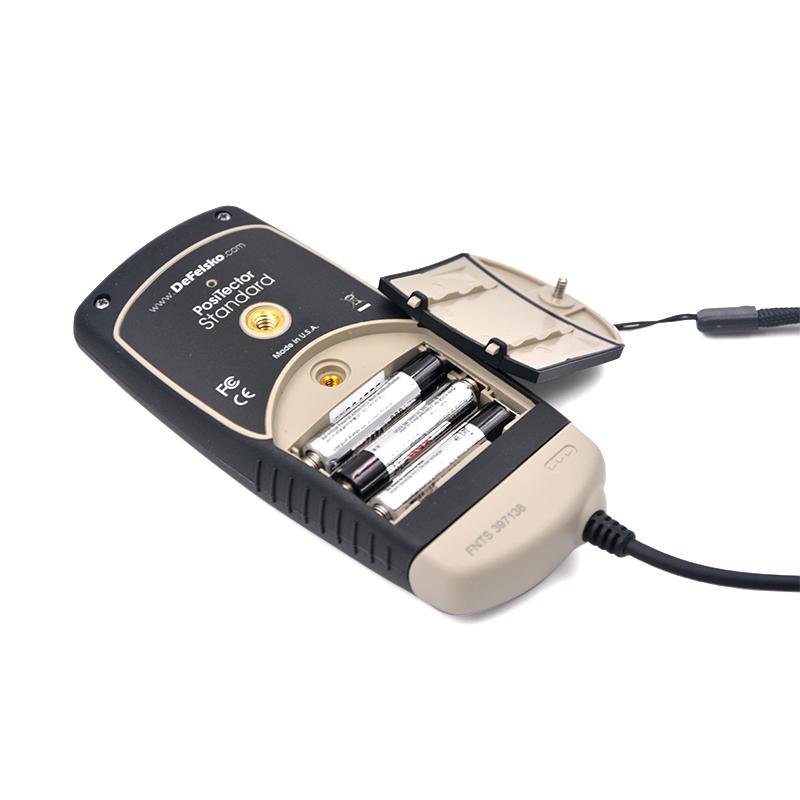

1. Install 3 * AAA alkaline battery
2. Open the device and select the language (Chinese or English) through Touchscreen.
3. Align N45S1 Probe to nonconductive coatings on nonferrous metal substrates for measurement

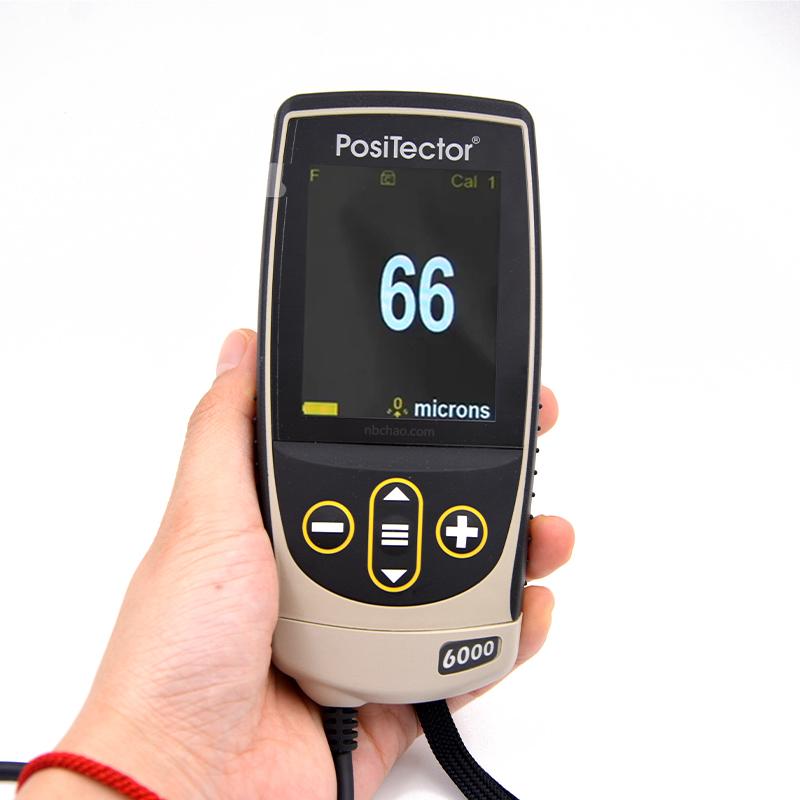

4. Read measurement results, the device automatically records data and supports statistical functions
5. Connect to the PC through the USB interface, use PosiSoft software to transfer data or update software
6. Save screen images or export measurement data as needed
Notice
Only for measurement of non-ferrous metal substrates and nonconductive coatings
Make sure the battery is fully charged before use and avoid operating in extreme environments
• Periodically calibrate equipment to maintain measurement accuracy with reference to Defelsko calibrated STDS2
• Avoid Severe Impacts or Contamination of Probes to Extend Service Life
• Make sure the USB connection is stable during data transfer to prevent data loss
