Overview

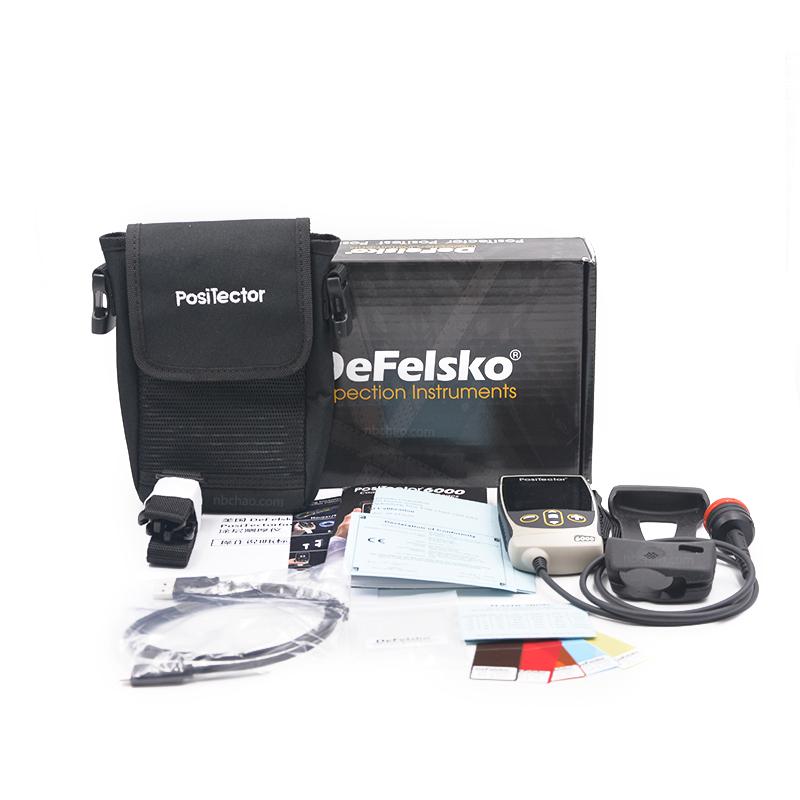

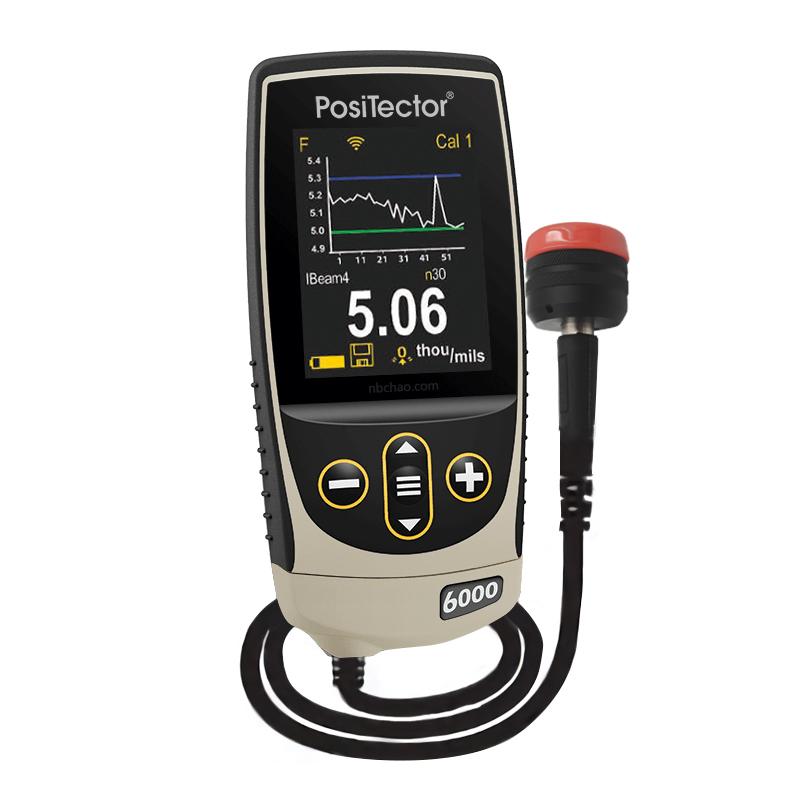

Defelsko Coating thickness gauge PosiTector 6000 NKS3 imported from the United States adopts the eddy Current thickness measurement principle, and is equipped with a special thick coating Probe measurement of larger thickness nonconductive coatings. Measurement range is 0~ 13mm. The instrument is an advanced storage thickness gauge, which can store 100,000 measurement data. Equipped with Positector analysis software, it supports USB data cable connection to computer to transmit data.
Features

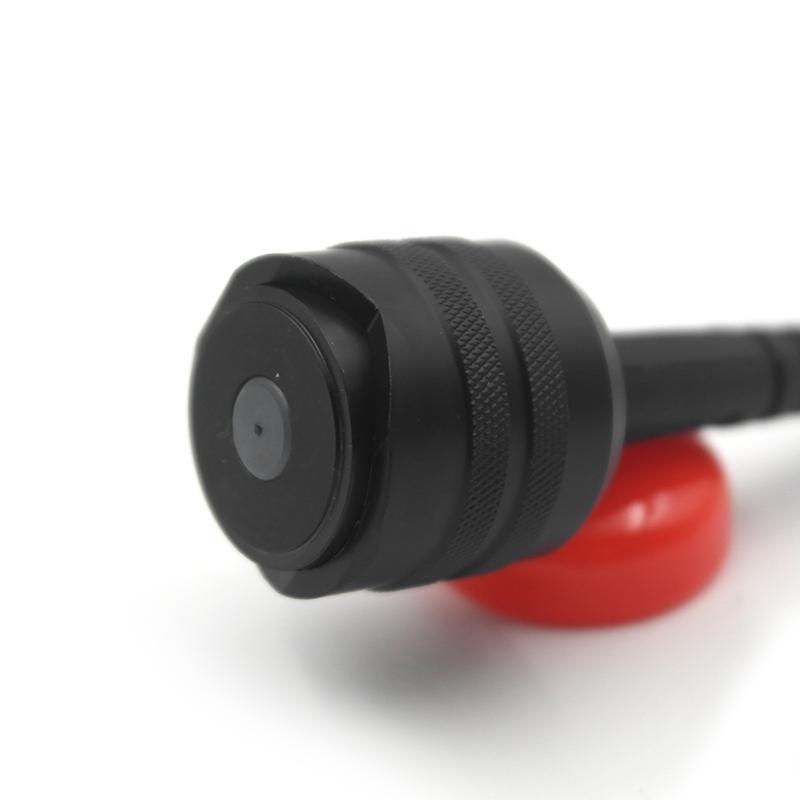

1. Using eddy Current thickness measurement principle, supporting NKS3 ultra-thick coating special Probe
2. Measurement range up to 0~ 13000 μm, resolution up to 0.1 μm
3. Mass storage, can store 250,000 Measured values and 1000 packets

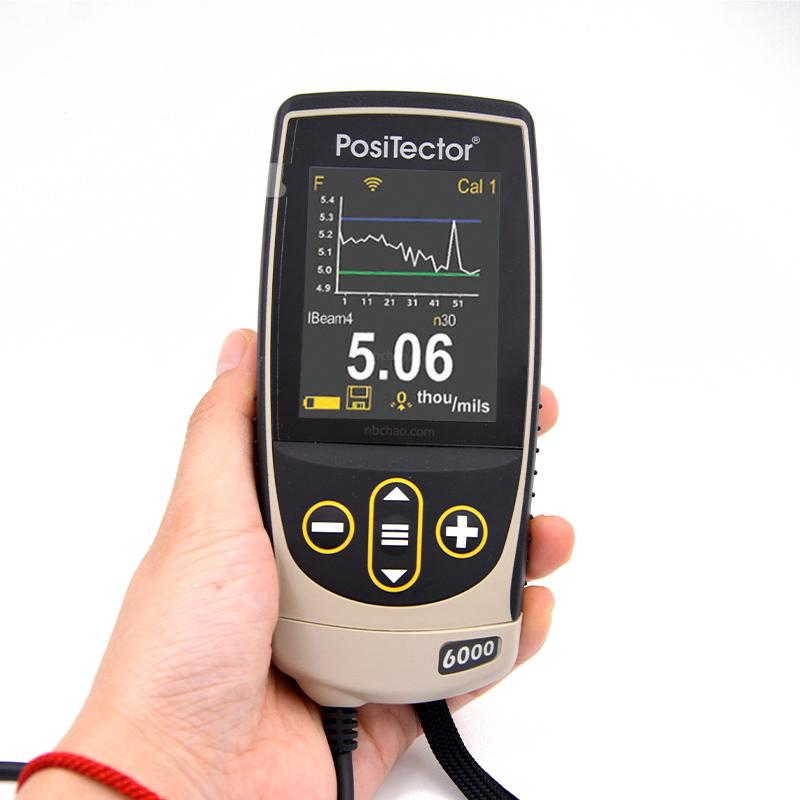

4. Equipped with 2.8-inch color Touchscreen, supports Chinese and English interfaces
5. Support USB and Bluetooth Interface, supporting PosiSoft software suite
6. With statistical function, it can display the number of measurements, MAX Maximum, MIN Minimum, Average and Standard Deviation
7. Protection Rating IP65, Measurement speed, can read more than 180 data per minute
8. Lightweight design, weight only 137g (without battery), easy to carry and use
Principle
The Coating thickness gauge uses the eddy Current thickness measurement principle to measure the thickness of nonconductive coatings on non-ferrous metal substrates through a special Probe. The Probe generates an electromagnetic field, and the thickness value is accurately calculated according to the influence of the coating on the electromagnetic field.
Applications
Coating thickness measurement on nonconductive substrates
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Power on and select the system language (Chinese or English).
3. Use NKS3 Probe to align nonconductive coatings on nonferrous metal substrates for measurement
4. View measurement results and statistics through Touchscreen
5. Connect the computer with a USB data cable or Bluetooth, and transfer and store data through PosiSoft software
Notice
• Only for nonconductive coating measurements on non-ferrous metal substrates
• Ensure that the Probe is in vertical contact with the coating surface for accurate readings
• Regularly calibrate instruments using the STDP5 standard
• Avoid use in extreme temperatures or Humidity environments
• Pay attention to the battery level and replace it in time to ensure Measurement accuracy
