Overview

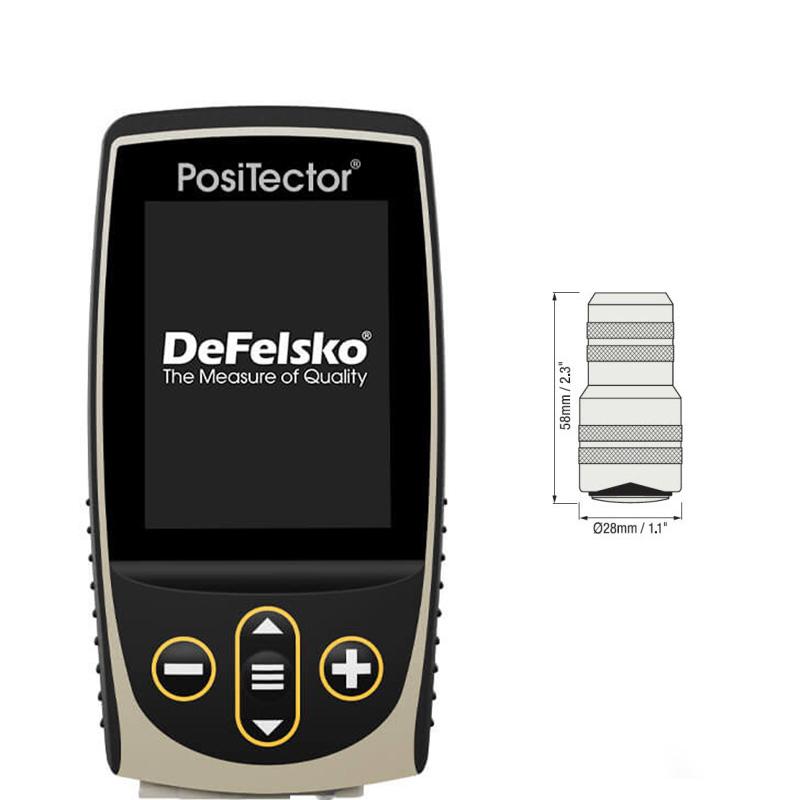

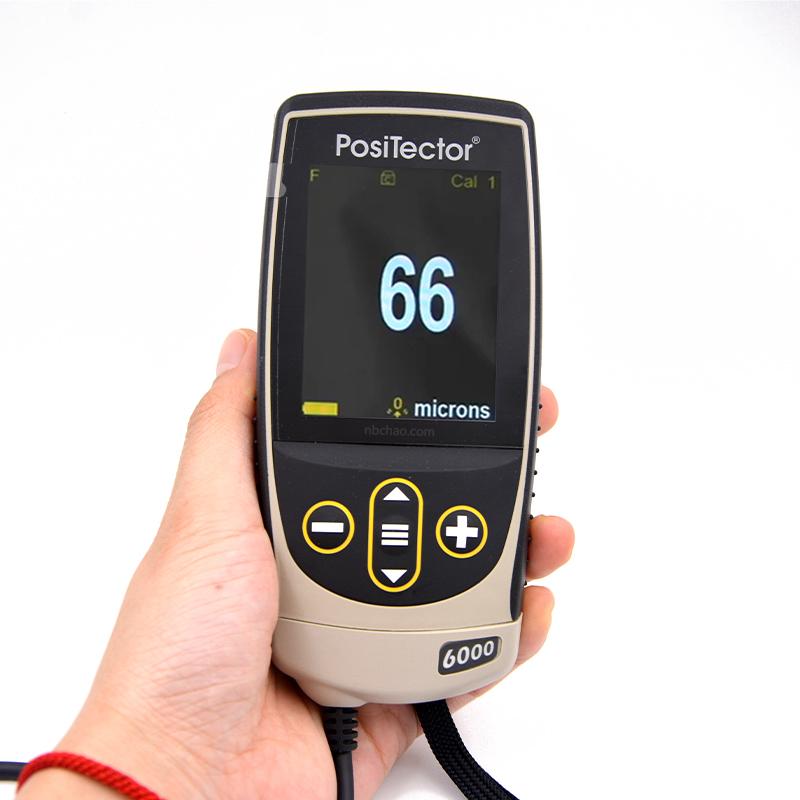

The Defelsko PosiTector 6000 FHXS1 Coating thickness gauge is a magnetic thickness gauge suitable for the measurement of high temperature surfaces up to 250 ° C. It is suitable for the thickness of nonmagnetic coatings on ferrous metal substrates. The measurement thickness range is 0 to 1000 microns, and the measurement accuracy is +/- (2 μm + 3%). The thickness gauge can store 1000 data and is equipped with a high contrast ratio color LCD screen.
Features
1. Suitable for high temperature surface measurement, up to 250 ° C
2. Measurement range, 0~ 1000 microns
3. High Accuracy measurement accuracy of +/- (2μm + 3%)
4. Data storage for 1000 Measured values
5. High contrast ratio color LCD display
6. Protection Rating IP65, adapt to harsh environment
7. Measurement speed, can read more than 60 readings per minute

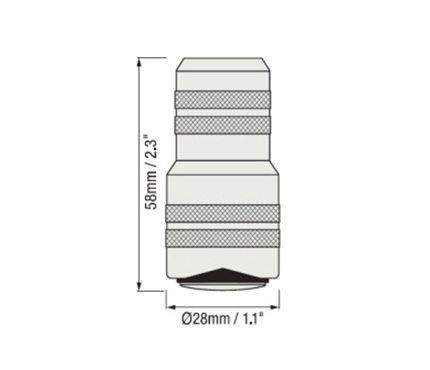

8. Equipped with FHXS Xtreme Probe, stable performance
Principle
Coating thickness gauge using magnetic Induction principle for measurement, suitable for nonmagnetic Coating thickness detection on ferrous metal substrates.
Applications
A nonmagnetic coating environment on ferrous metal substrates
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 * AAA alkaline battery
2. Select the system language (Chinese or English)
3. Use Probe to contact the coating surface to be tested
4. Read the measurement data on the display
5. Connect the PosiSoft software suite through the USB interface for data transmission
6. Save screen images (up to 100)
Notice
Only for nonmagnetic coating measurements on ferrous metal substrates
• Ensure that the surface temperature does not exceed 250 ° C during measurement
• Regularly calibrate with Defelsko STDP7
• Pay attention to the battery level and use 3 * AAA alkaline batteries
• Be aware of capacity limitations when storing data (1000 Measured values)
• Save no more than 100 screen images
