Overview

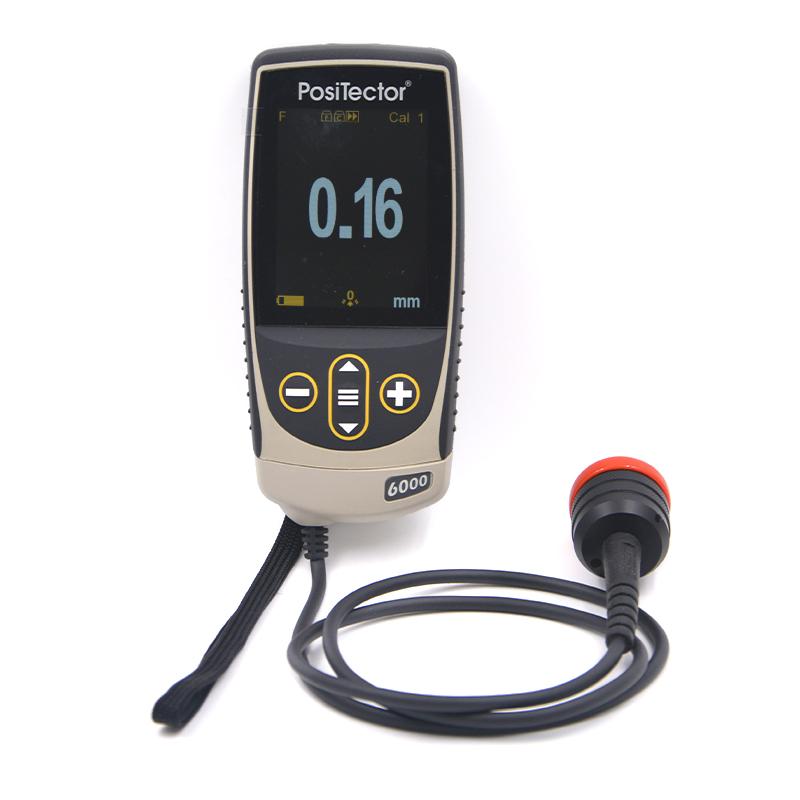

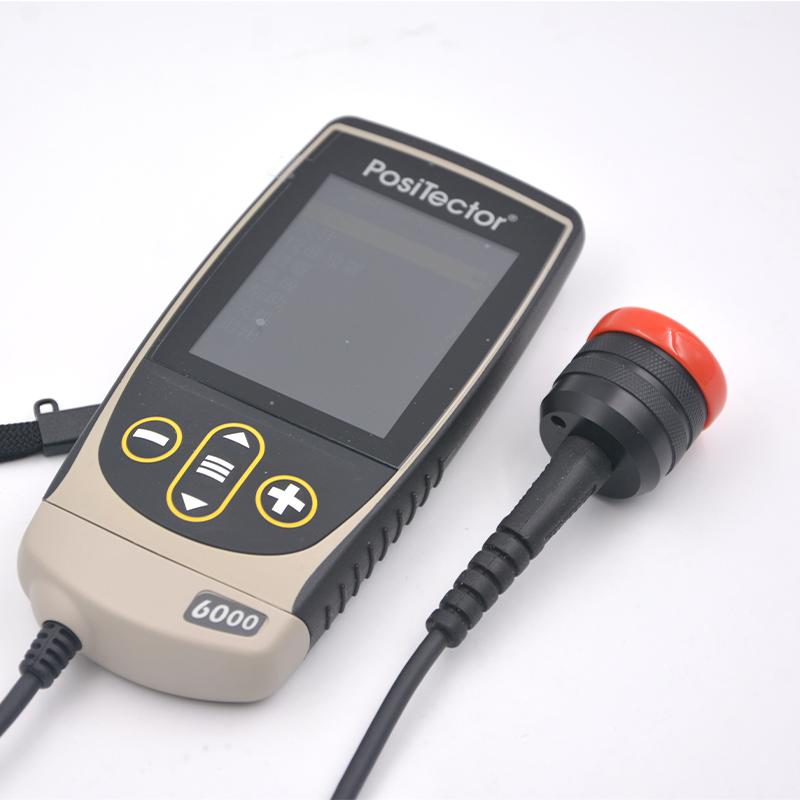

The Defelsko PosiTector 6000 FNTS1 Coating thickness gauge is a dual-use thickness gauge dedicated to the measurement of thick coatings. It can automatically identify different types of substrates. It can measure the thickness of nonmagnetic coatings on magnetic substrates and nonconductive coatings on nonmagnetic substrates. Measurement range is 0~ 6000 microns, equipped with STDP1 calibration standard plate. The external Probe of this instrument is a wear-resistant Probe with a measurement diameter of 30mm.
Features
1. Automatically identify different types of substrates, support coating measurement of magnetic substrates and nonmagnetic substrates
2. Measurement range of 0~ 6000 microns, suitable for thick coatings

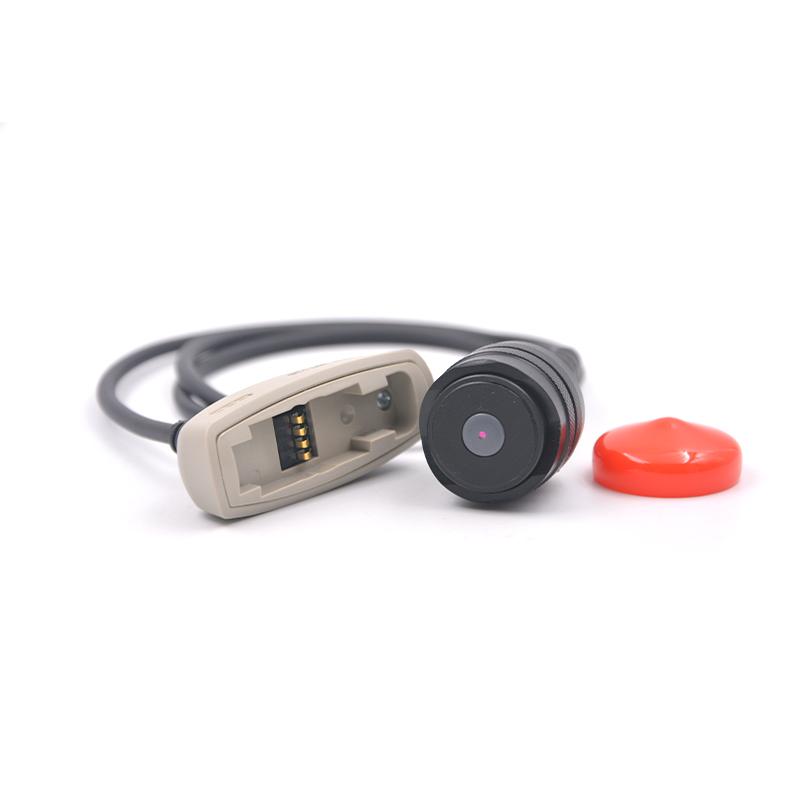

3. Equipped with wear-resistant Probe for thick coatings, with a measurement diameter of 30mm
4. With statistical function, it can display the number of measurements, MAX Maximum, MIN Minimum, Average and Standard Deviation

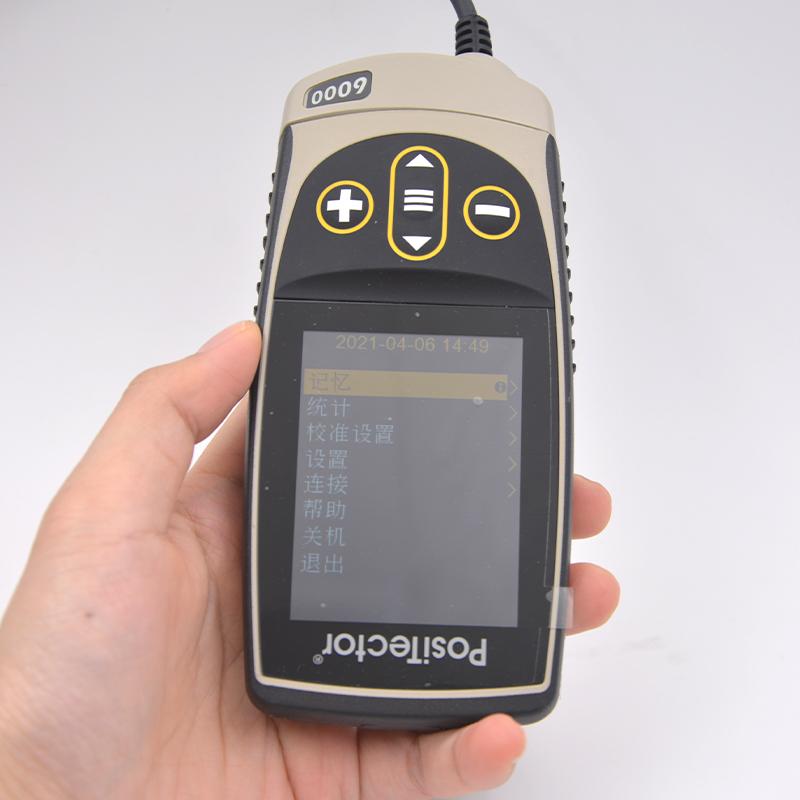

5. Adopt 2.8-inch color Touchscreen, support Chinese and English system languages
6. Large data storage capacity, can store 1000 Measured values and 100 screen images
7. Protection Rating IP65, adapt to harsh environment
8. Measurement speed, more than 60 readings per minute
Principle
The Coating thickness gauge uses magnetic Induction and eddy Current Measurement principles to automatically identify the substrate type. On ferrous metal substrates, the thickness of nonmagnetic coatings is measured by magnetic Induction principle; on non-ferrous metal substrates (such as aluminum and copper), the thickness of nonconductive coatings is measured by eddy Current principle.
Applications
Ferrous metal substrate nonmagnetic coating environment, non-ferrous metal substrate nonconductive coating environment
Standards
ISO 2178/2360/2808、PrEN ISO 19840、ASTM B499/D1186/D1400/D7091/E376/G12、BS3900-C5、SSPC-PA2
Steps
1. Install 3 AAA alkaline batteries
2. Use STDP1 calibration standard plate to calibrate
3. Place the Probe on the surface of the coating to be tested
4. The instrument automatically recognizes the substrate type and begins measurement
5. View measurement results and statistics through Touchscreen
6. Connect to the computer using the USB port and manage data through the PosiSoft software suite
Notice
• Ensure use in the correct test environment: ferrous metal substrate nonmagnetic coating environment or non-ferrous metal substrate nonconductive coating environment
• Regularly calibrate with STDP1 calibration standard plate to ensure Measurement accuracy
• Probe from severe impact or abrasion
• Pay attention to the battery level and replace it in time to ensure normal use
• Limited data storage capacity, regularly export data to avoid loss
• Follow relevant safety regulations when operating
