Overview

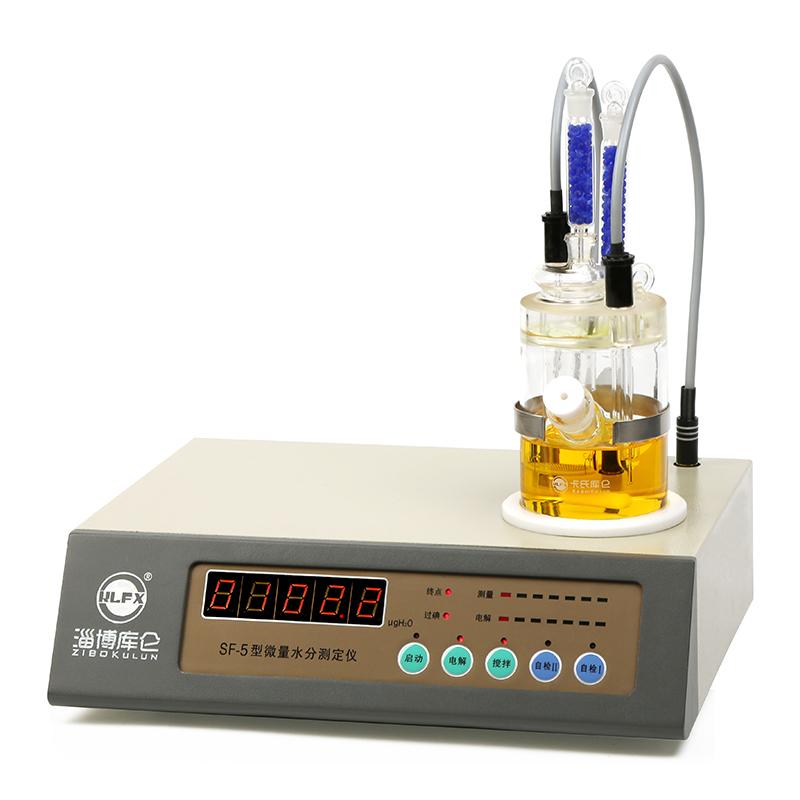

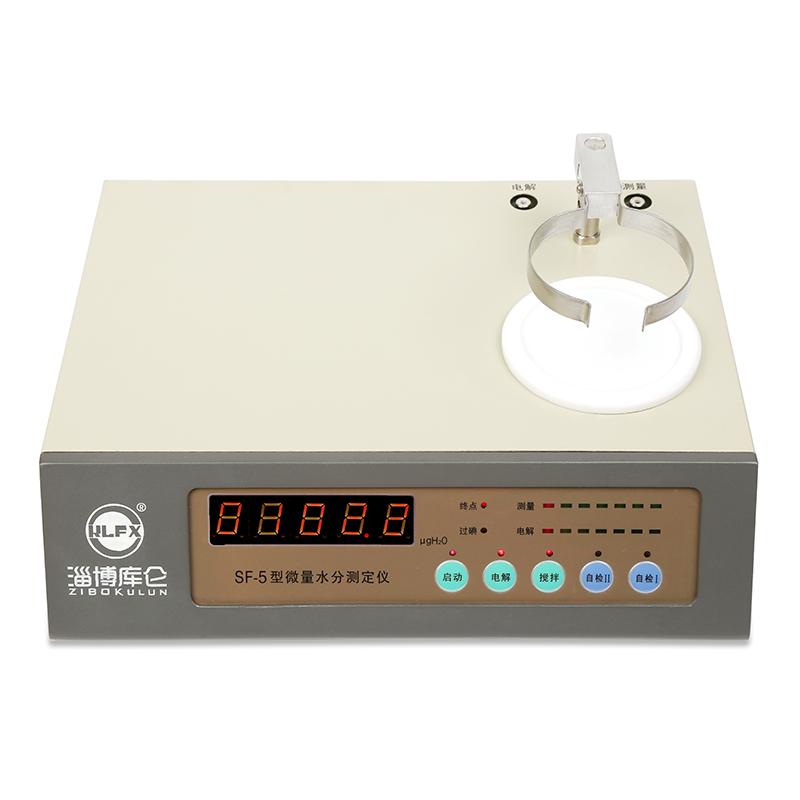

ZIBO SF-5 micro Moisture Analyzer adopts Karl-Fischer Coulomb electricity method, which conforms to GB/T7600, SH/T0246, GB/T606 and other standards. The instrument adopts professional automatic control circuit, automatic tracking control of electrolysis current, over-iodine indication and fault automatic detection functions, reliable work, convenient use, fast analysis speed (one minute results), easy operation, high accuracy and strong automation.
Features
1. Determination of moisture by Karl-Fischer coulometry
2. Professional automatic control circuit, electrolysis current automatic tracking control
3. Novel appearance structure, adding over-iodine indication and automatic detection function of instrument failure
4. Fast analysis speed, results in one minute
5. Easy to operate, high accuracy and strong automation
6. Reliable and easy to use
Principle
The instrument uses Karl-Fischer coulometry to determine the moisture in the sample, and realizes the accurate determination of moisture through the automatic tracking control of electrolysis current.
Applications
Petroleum, chemical industry, electric power, railway, environmental protection
Standards
GB/T7600、SH/T0246、GB/T606
Steps
1. Power on AC220V +/- 10%; 50Hz +/- 5%
2. The instrument automatically detects faults
3. Sample measurement, electrolysis current 0~ 300mA automatic control
4. Read the 5-digit LED digital display result in μgH2O
Notice
• power requirements: AC220V +/- 10%; 50Hz +/- 5%
• Ambient Temperature: 5~ 40 ℃
• Environmental humidity: ≤ 85%
• Measurement range: 3μg~ 100mg (H2O)
• Moisture determination Precision: 3μg~ 1mgH2O is not more than +/- 0.3%; more than 1mg H2O is not more than +/- 0.5% (excluding injection error)
• Power consumption: no more than 40W
