Overview

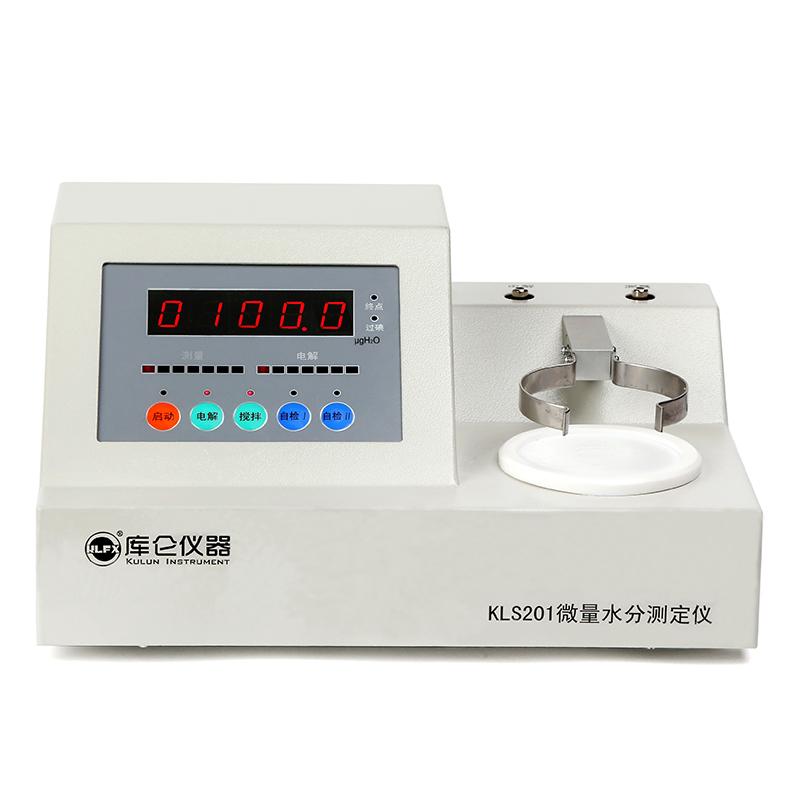

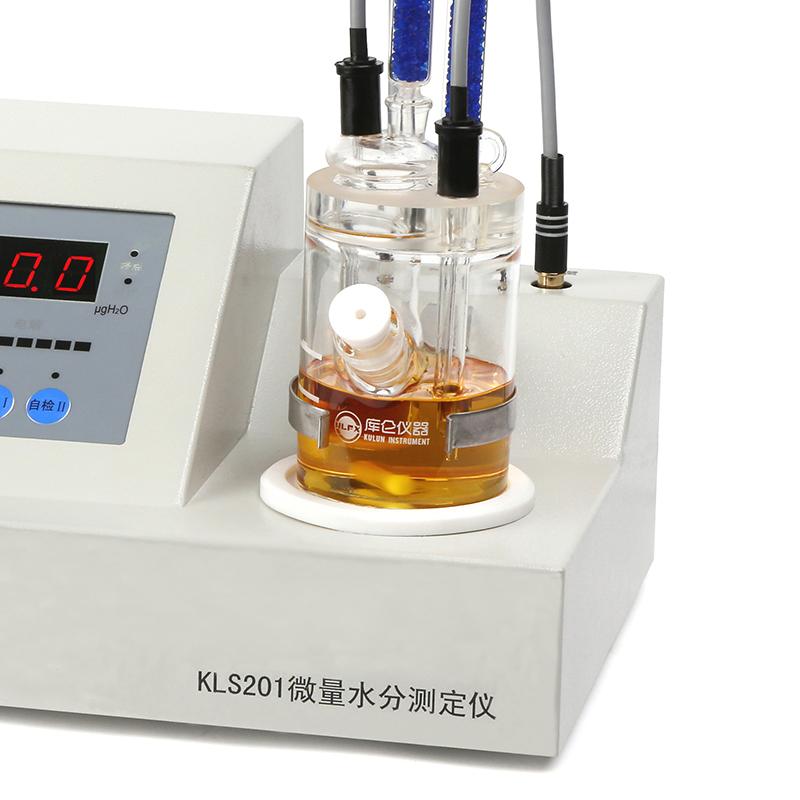

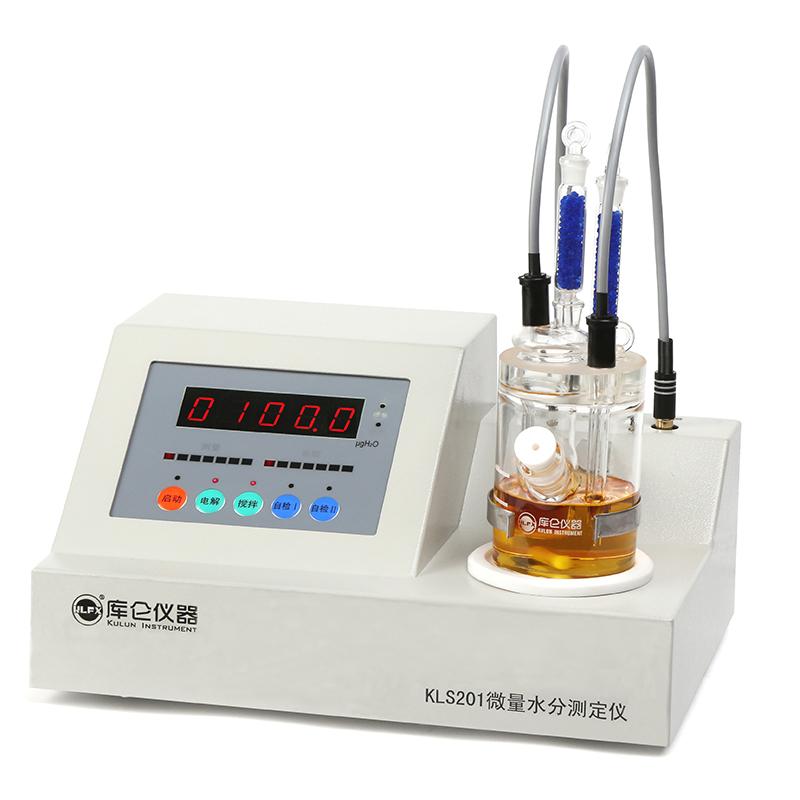

KLS201 Micro Moisture Analyzer is a KLS series micro Moisture Analyzer launched by ZIBO. It adopts the Karl-Fischer Coulomb electricity method and is suitable for Petrochemicals, Electric Oil, Chemical Reagents, Scientific Research Institutions, Lithium Batteries and other industries and departments. The instrument conforms to the relevant national standards using the Karl-Fischer method.
Features
1. Determination method by Karl-Fischer coulometry

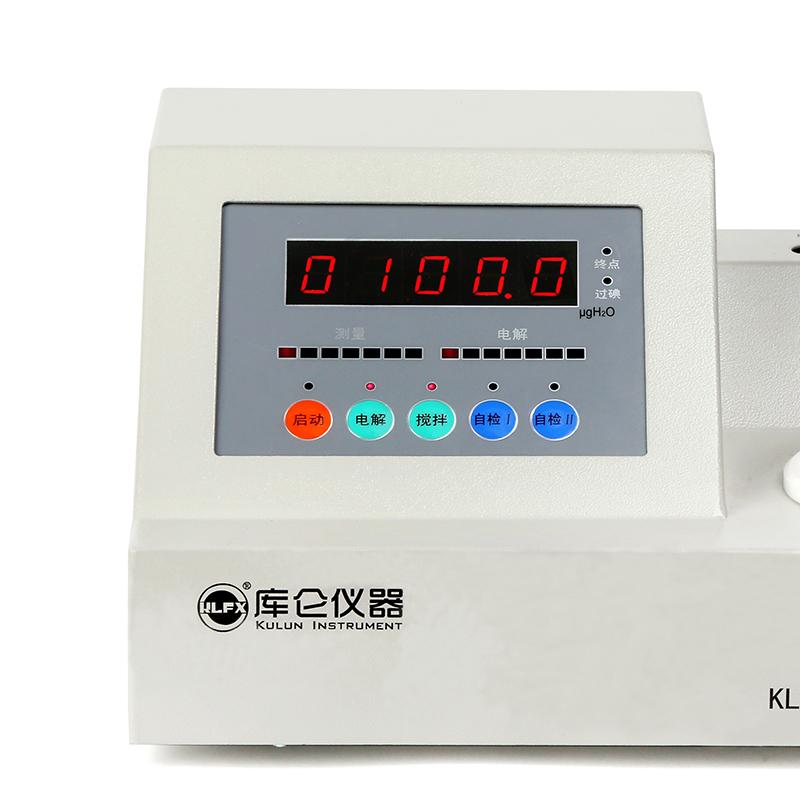

2. Equipped with 5-digit LED digital display
3. With instrument electrolysis circuit, measurement circuit automatic detection function
4. Measurement range from 3μg to 150mg (H2O)
5. Sensitive valve up to 0.1 μg H2O
6. Precision of moisture determination: 3μg~ 1mgH2O is not more than +/- 0.3%; more than 1mg H2O is not more than +/- 0.5%
7 electrolysis current range 0~ 300mA
8. Low power consumption, no more than 40W
Principle
The KLS201 Micro Moisture Analyzer works based on the principle of Karl-Fischer Coulomb electricity method. Moisture content in samples is measured by electrolysis current, and the instrument automatically detects electrolysis circuit and measurement circuit to achieve accurate determination of trace moisture.
Applications
Petrochemicals, Power Oil, Chemical Reagents, Research Universities, Lithium Batteries
Standards
Relevant national standards for the adoption of the Karl-Fischer method
Steps
1. Connect power supply AC220V +/- 10%, 50Hz +/- 5%
2. Turn on the instrument Self-check function to check the electrolysis circuit and measurement circuit
3. Set electrolysis current range 0~ 300mA
4. Instrument sampling and injection
5. Read Moisture content data on 5-bit LED display
6. Measurement range 3μg~ 150mg (H2O)
Notice
• Ambient Temperature should be kept within 5~ 40 ℃
• Environmental humidity should not exceed 85%
• The power requirements are AC220V +/- 10%, 50Hz +/- 5%
• Measuring accuracy without injection error
• Instrument weight is 5.4kg, Dimension 330 * 240 * 170mm
