Overview

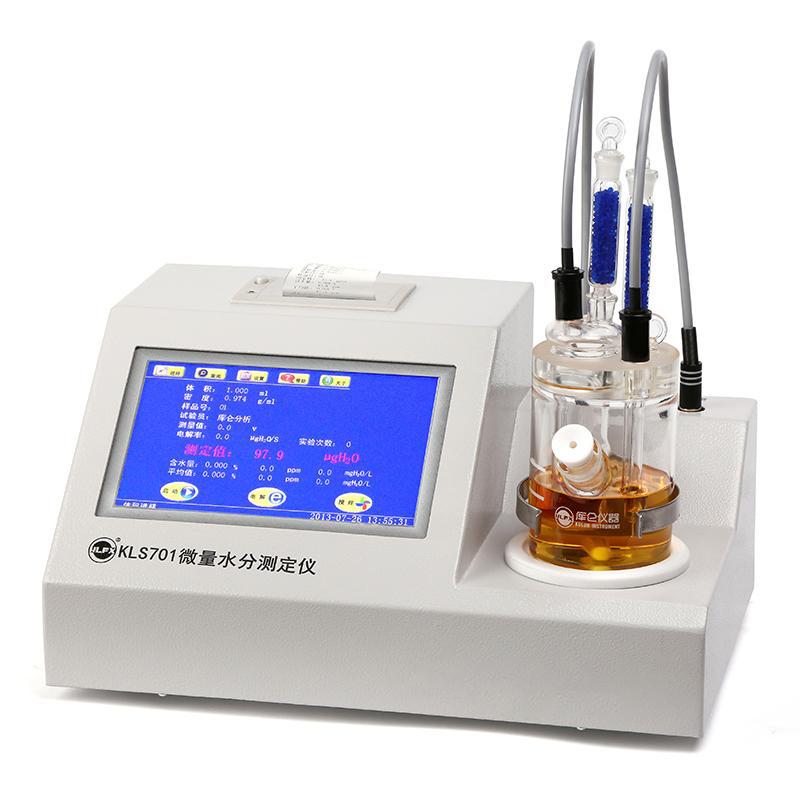

ZIBO KLS701 Micro Moisture Analyzer adopts dual CPU control, which greatly improves the Measurement accuracy and calculation function. The instrument is equipped with a 7-inch large-screen color LCD display, supports Touchscreen control and Chinese menu operation, and has a self-check function for faults such as Electrode open circuit and short circuit alarm. It can store 512 pieces of information, automatically calculate and print the measurement results of PPm,% and mg/L. It has obtained three national patents.
Features
1. Using dual CPU control, Measurement accuracy and calculation function are greatly improved
2.7-Inch large-screen color LCD display, Touchscreen control
3. Chinese menu Operating interface
4. Electrode open circuit, short circuit alarm and other fault Self-check function
512 pieces of information can be stored
6. Automatically calculate and print the determination results of PPm,%, mg/L
7. Obtained three national patents
8. Support three injection methods: volumetric injection, weighing injection and dilute injection
9. Program control stepless speed regulation
10. Simultaneously calculate three units of "%", "ppm", "mg/l"
Principle
The KLS701 Micro Moisture Analyzer uses Karl-Fischer Coulometry for moisture determination, and uses program-controlled stepless speed regulation to make accurate measurements in the range of 0-300mA using titration current.
Applications
Related Fields of Determination of Moisture in Samples by Karl-Fischer Method
Standards
GB/T7600, GB/T6283, GB/T0246, GB11133, GB/T606, GB18350, GB/T2288, GB/T12717, SH/T0255 and related standards for the determination of moisture in samples by the Karl-Fischer method
Steps
1. Select the injection method: volume injection, weighing injection or dilute injection
2. Set parameters through Touchscreen
3. Start the assay procedure
4. The instrument automatically calculates and displays the results
5. The measurement results can be output through the thermal printer
Notice
• power requirements: AC220V +/- 11V; 50Hz +/- 2.5Hz
• Ambient Temperature: 0 ℃ -45 ℃
• Environmental humidity: not more than 80%
• Measurement range: 2μg~ 150mg (H2O)
• Precision range: 2μg-100μgH2O, deviation +/- 0.5μg; 100μg-1mgH2O, deviation +/- 0.3%; 1mgH2O or more, deviation +/- 0.5% (all without injection error)
