Overview

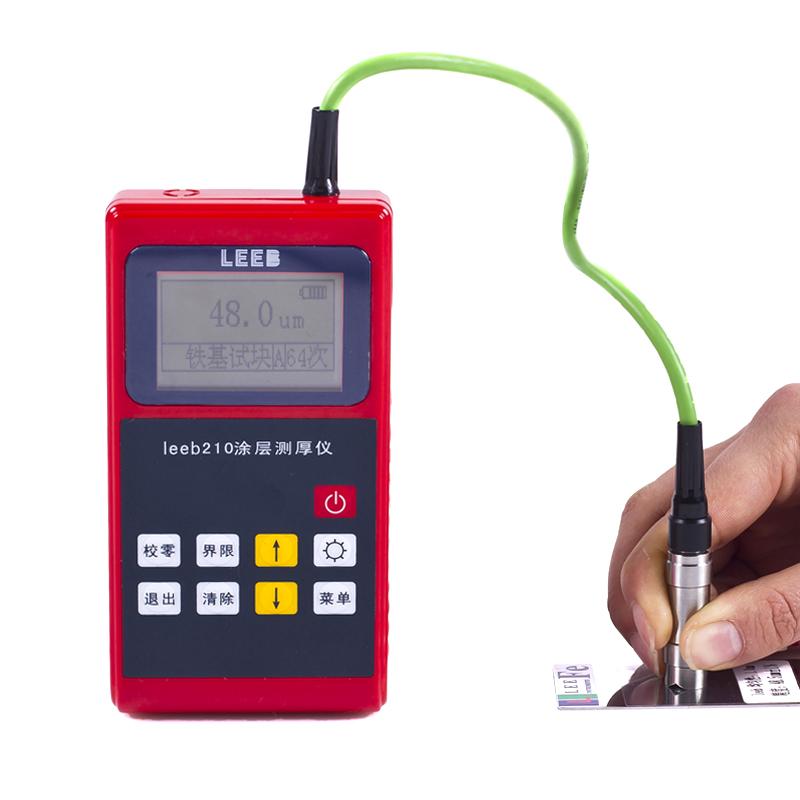

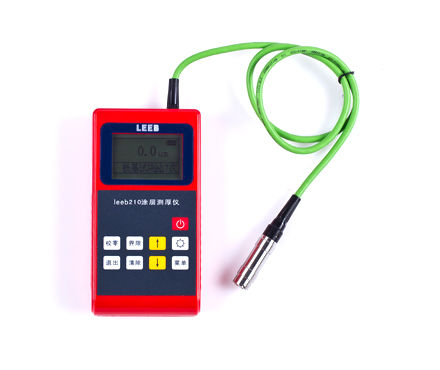

The LEEB leeb210 Coating thickness gauge is a nondestructive testing instrument using the principle of magnetic Induction thickness measurement. Measurement range is 0~ 1250 microns. It supports single and continuous measurement and various Calibration methods. The instrument can nondestructive detect the thickness of nonmagnetic coatings on magnetic metal substrates, such as chromium, aluminum, copper, tin, zinc, paints, rubber, etc. on iron, steel, alloy and hard magnetic steel.
Features
1. Two working methods: direct mode and group mode conversion
2. Display the last reading after booting
3. With measurement Data storage function
4. Measurement modes: single measurement and continuous measurement conversion
5. Full Chinese Operating interface, menu interface
6. With manual and automatic shutdown functions
7. Calibration methods with measurement Data storage
8. Delete function of measurement data (Delete current Measured value, Delete current group measurement data, Delete all data of current group)
Principle
LEEB leeb210 Coating thickness gauge adopts the principle of magnetic Induction thickness measurement to achieve nondestructive detection by measuring the thickness of nonmagnetic coating layer on magnetic metal substrate.
Applications
Chemical industry, light industry, Eletroplating, anti-corrosion, automotive, shipbuilding, aerospace, aviation, commodity inspection and other testing fields
Steps
1. Display the last reading after booting
2. Choose direct mode or group mode to work
3. Select Single measurement or Continuous Measurement mode
4. Perform measurement operations
5. Data storage and deletion management for measurement
6. Support manual and automatic shutdown
Notice
• Measurement range of 0~ 1250μm, error range of +/- 3%
• Minimum measurement surface is φ 7mm
• The minimum radius of curvature is convex 1.5mm.
• The thinnest substrate is 0.5mm.
• Operating temperature 0~ 40 ℃
• relative humidity of 20~ 90% RH
• Powered by 2 * AAA alkaline batteries
