Overview

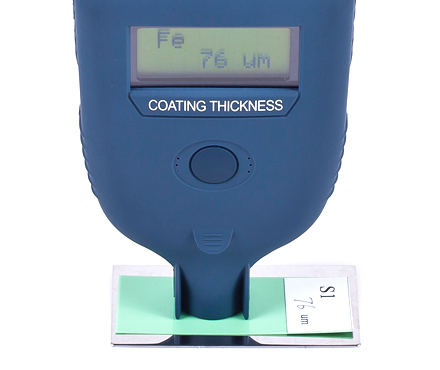

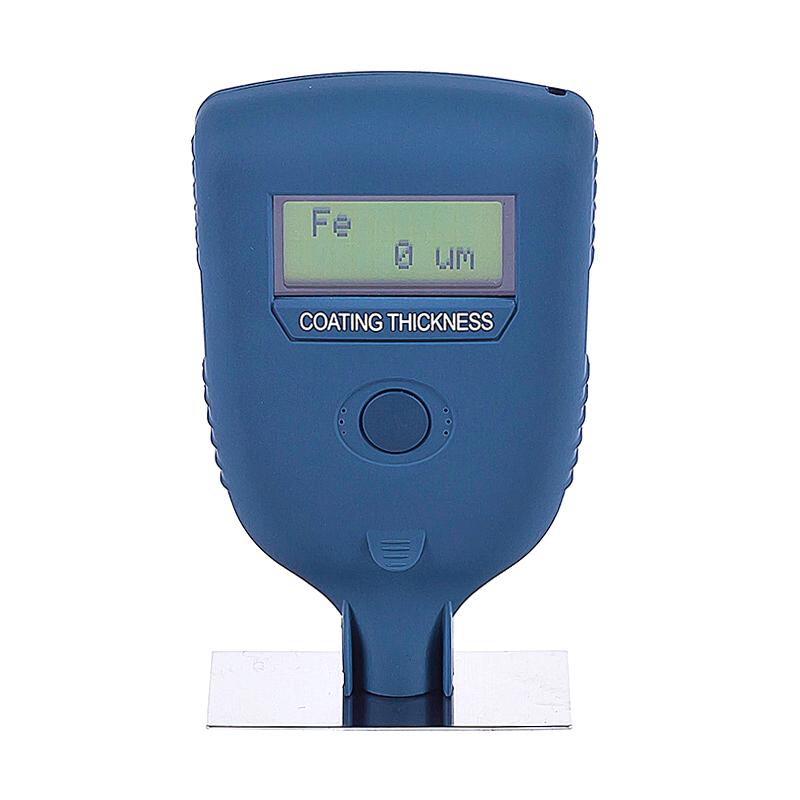

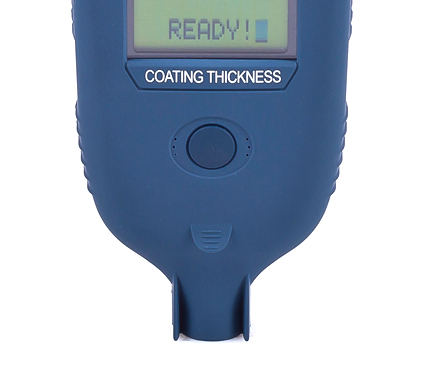

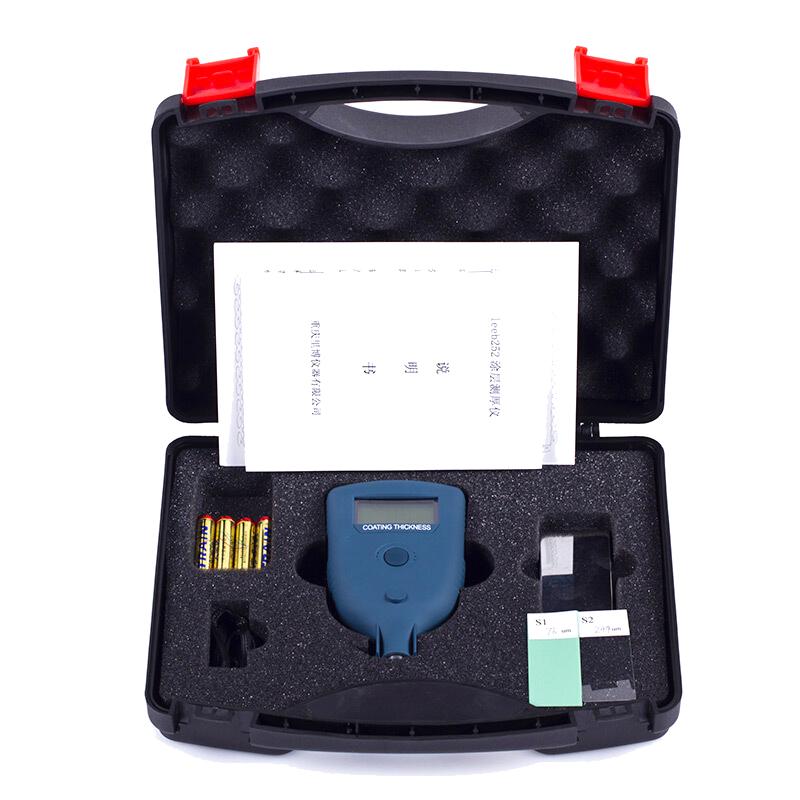

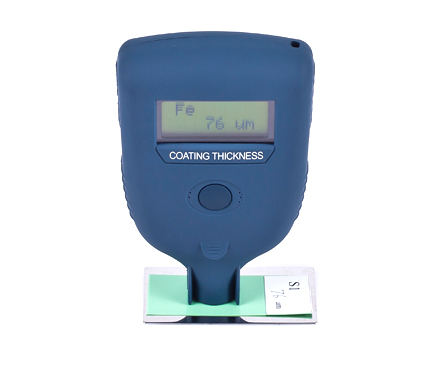

The LEEB leeb252 Coating thickness gauge is a dual-use thickness gauge with a built-in Probe integrated structure. Probe can automatically identify magnetic metal substrates and nonmagnetic metal substrates, accurately measure the thickness of the coating, the measurement accuracy is 1 micron, one-button operation, simple and convenient operation. The minimum curvature radius of the instrument for measurement is convex 1.5mm, concave 20mm, and the minimum area diameter for measurement is φ 10mm. It is suitable for operation in an environment with a temperature of 0~ 40 degrees Celsius and a temperature of 20%~ 90% Humidity.
Features
1. Built-in Probe type, integrated structure design, compact size, easy to carry.
2. One-click operation, one-handed operation, simple operation.
3, magnetic Induction and eddy Current dual-use thickness gauge, automatically identify different substrates.
4. LCD digital display, the reading is intuitive and clear.
Principle
The thickness gauge adopts magnetic Induction and eddy Current Measurement principles, which can automatically identify magnetic metal matrix and nonmagnetic metal matrix, and accurately measure the thickness of the covering layer.
Applications
Aviation, chemical industry, shipbuilding, light industry, commodity inspection, automobile, Eletroplating, anti-corrosion, aerospace and other testing fields
Steps
1. One-click operation, allowing for one-handed operation.
Notice
• Suitable for operation in environments with temperatures from 0 to 40 degrees Celsius and 20% to 90% Humidity
• The minimum radius of curvature for measurement is convex 1.5mm and concave 20mm
• The minimum measurement area diameter is φ 10mm
• The thinnest substrate is 0.5mm.
