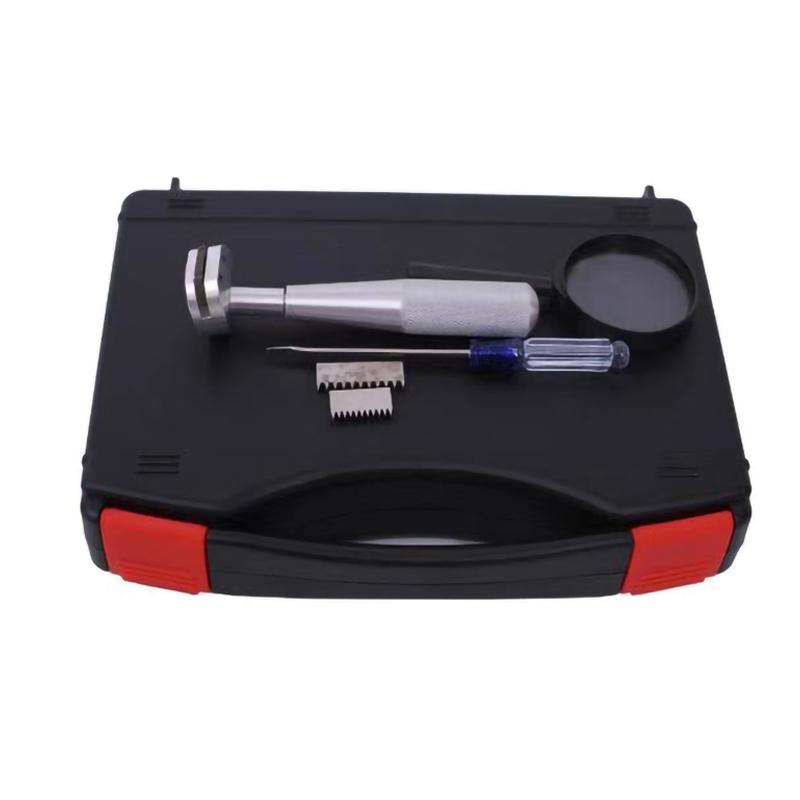

JINGKELIAN QFH 11-tooth cross-cut adhesion Tester Cross Hatch Cutter meets ISO2409-1974 standard

Name: JINGKELIAN QFH 11-tooth cross-cut adhesion Tester Cross Hatch Cutter meets ISO2409-1974 standard
Brand: JingKeLian
SKU: NB012521
Price: 182.0 USD
Availability: InStock

$ 182.00Ex works

The 11-tooth multi-edge cutting knife is used to provide three spacings of 1mm, 2mm and 3mm, which are suitable for different film thickness tests.

Model

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : JingKeLian

SKU : NB012521

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN QFH 11-tooth cross-cut adhesion tester is a special Cross Hatch Cutter for coating adhesion testing in the organic coatings industry, in accordance with ISO2409-1974 standards. The instrument provides 1mm, 2mm, 3mm multi-edge cutting knives, which are suitable for testing different film thicknesses.

Features

1. Provide multi-edge cutting knives with three specifications spacing of 1mm, 2mm and 3mm 2. The number of teeth is 11 teeth 3. Made of aluminum 4. In line with ISO2409-1974 international standards

Principle

Lattice pattern cutting and penetration of the coating is performed using a specific tool, and then a six-level classification is performed according to the degree of separation of the coating from the substrate after cutting. Coating adhesion is evaluated by cutting and penetration of the lattice pattern of the coating, and then evaluating the resistance of the coating to separation from the substrate.

Applications

Laboratory, various construction sites for organic coating adhesion testing

Multi-blade cutting knife spacing
1±0.01mm、2±0.01mm、3±0.01mm
Multi-edge cutting tool tooth top straight line
Not less than 0.003mm (1 +/- 0.01mm), not less than 0.006mm (2 +/- 0.01mm, 3 +/- 0.01mm)
Multi-blade cutter working tooth width
Not less than 0.05mm
Meet the standard
ISO2409-1974

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
