Overview

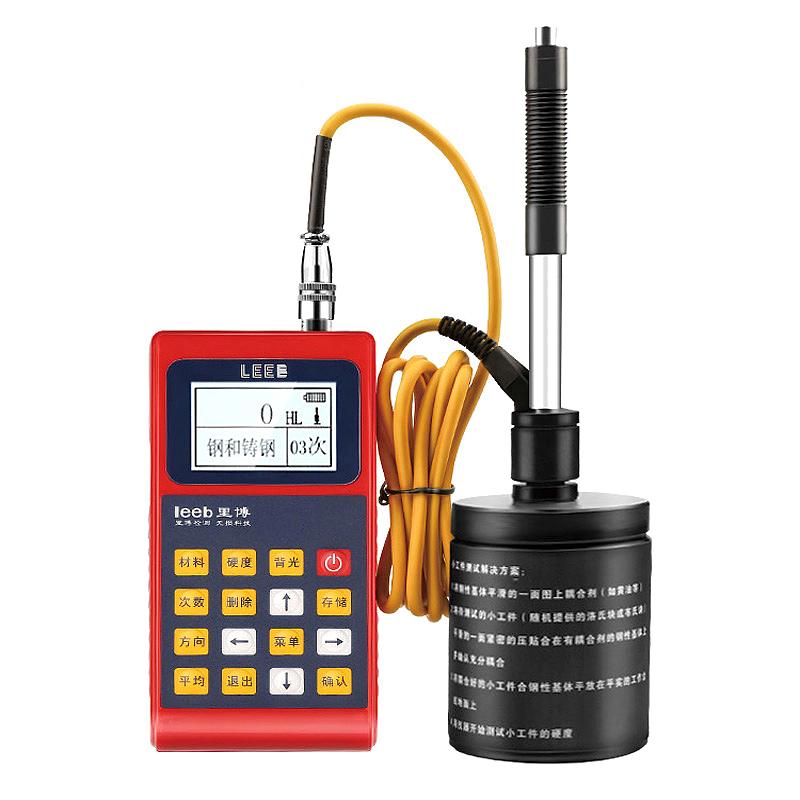

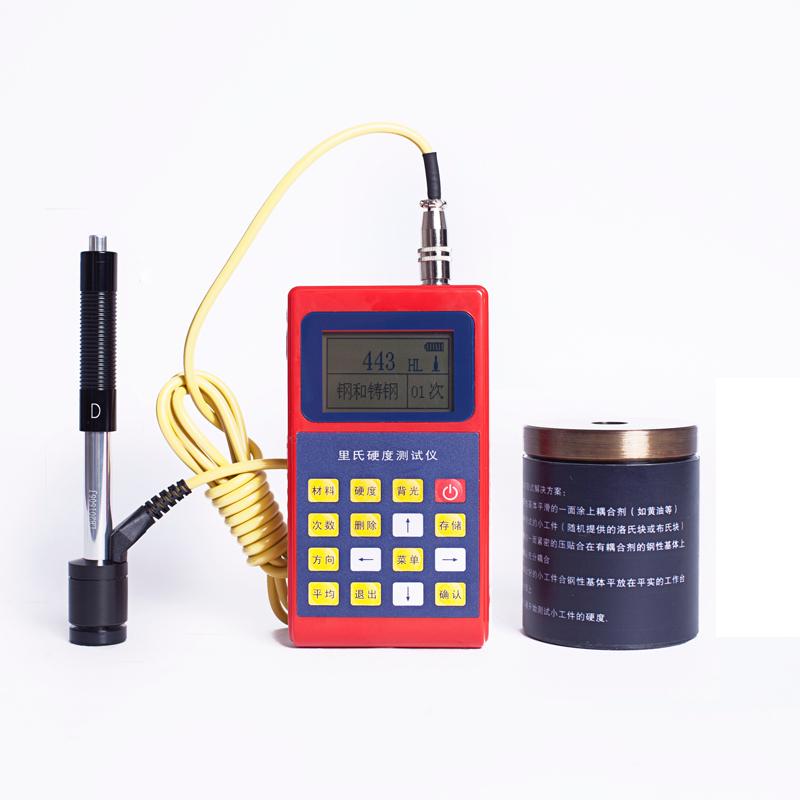

LEEB leeb120 Leeb hardness tester is a hardness measuring device with optional Miscellaneous Impact device and support ring. It can be connected to a PC for data communication. It has three Adjustments: Richter, Rockwell, and Brinell. Hardness values of Richter, Brinell, Rockwell, Shore, and Vickers can be displayed simultaneously during measurement. The hardness gauge comes standard with D-Impact device and operates in Chinese menu. It has the characteristics of anti-vibration, Impact and electromagnetic interference, and is suitable for use in harsh environments.
Features
1. Standard D-Impact Device
2. According to the Richter Hardness Measurement principle, it is mainly used for Rockwell and Brinell. The Rockwell measurement interface is displayed when the machine is turned on.
3. Chinese menu operation, intuitive and rich information
4. Energy-saving functions such as automatic sleep and shutdown, low-power design
5. High luminance LED backlight is convenient for use in gray environments with rays of light
6. Standard rockwell hardness block, the user saves 90% of the cost of subsequent test block consumables
7. Ordinary battery powered, standby time 100 hours, easy to carry
Principle
According to the Richter Hardness Measurement principle, it is mainly used for Rockwell and Brinell Hardness measurement.
Applications
Pressure Vessels, Failure Analysis of Turbo Generators and Their Equipment, Rapid Inspection of Multiple Measurement Sites in a Large Scope of Large Workpieces, Installed Machinery or Permanent Assembly Parts, Workpieces with Very Small Measurement Space, Material Differentiation in Metal Material Warehouses, Bearings and Other Parts, Mold Cavity, Heavy Workpieces
Standards
Indication Repeatability: 6HLD (HLD = 760), measurement direction: 360 °, Hardness standard: HL/HB/HRC/HRB/HV/HS, optional Impact device: D, G, C, DL, DC, D + 15, PC Communication: Yes, Dimension: 129 * 68 * 25mm, weight: about 0.2Kg, Optional accessories: various special-shaped support rings, standard Hardness block, communication software
Notice
• Leeb120 Leeb hardness tester comes in red and black shells, and users can choose one of them.
• Using standard rockwell hardness blocks can save users 90% of the cost of subsequent test block consumables
