Overview

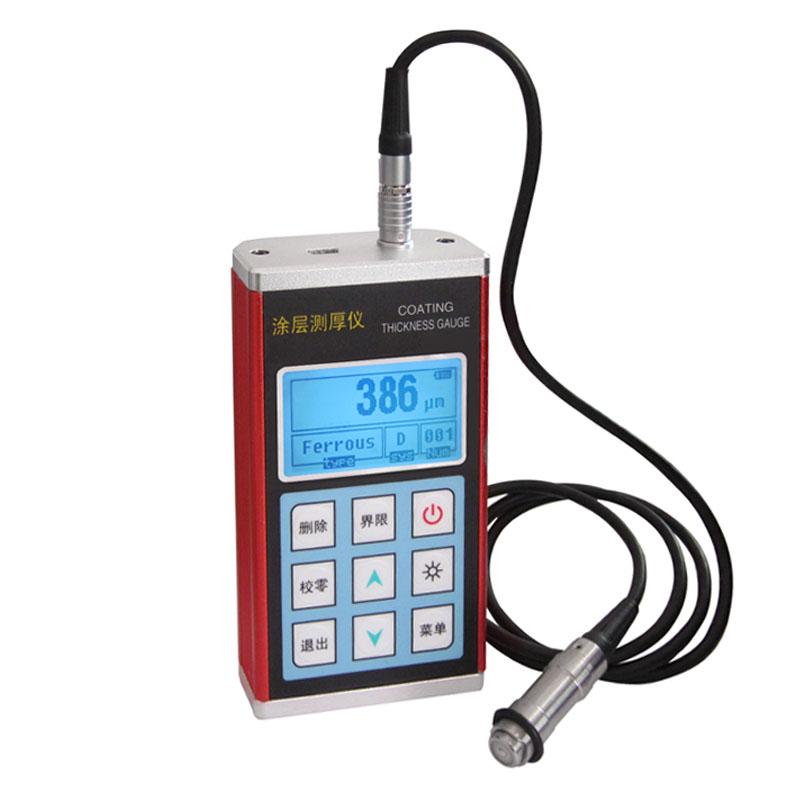

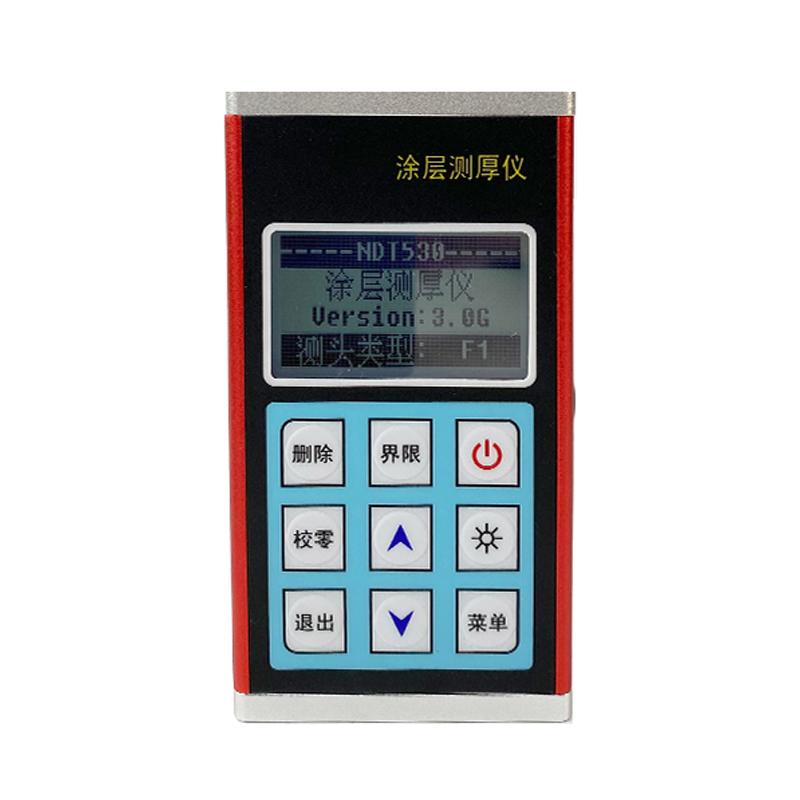

KAIRDA NDT530 galvanized layer thickness gauge has two models, NDT530 (F1) and NDT530 (N1), respectively, external magnetic Induction Probe and eddy Current Probe, respectively, for the measurement of magnetic metal substrate on the nonmagnetic Coating thickness, non-ferrous metal substrate on the thickness of the nonconductive coating, Measurement range is 0~ 1250 microns, measurement resolution of 0.1 microns. KAIRDA NDT530 galvanized layer thickness gauge can be equipped with a variety of Probe for measurement of different Coating thickness, with continuous measurement and single measurement two Measurement mode, direct and group two working modes, with Data storage function, can store 100 readings.
Features
1. The KAIRDA NDT530 galvanized layer thickness gauge has the function of automatically identifying Probe.
2. Measurement mode: Continuous Measurement mode and Single Measurement mode.
3. Two working methods: direct mode and group mode.
4. The Probe contact parts of the NDT530 (F1)/NDT530 (N1) galvanized layer thickness gauge are plated with hard chrome or ruby, making them durable.
5. The upper and lower limits can be set. When the measurement result is greater than or equal to the upper and lower limits, the Coating thickness gauge will emit a corresponding sound or flash light prompt.
6. Notify errors through the screen display or beep.
7, aluminum shell, small and portable, solid and durable, suitable for harsh operating environment, with strong anti-vibration, Impact and anti-electromagnetic interference.
8. Three Adjustments: with probe zero point calibrating, one point calibrating, two point Adjustment, and can use the basic calibrating method to correct the system error of the probe.
9, can choose to be equipped with microcomputer software, with measurement storage management, transmission measurement results, measurement statistical analysis, printing measurement reports and other rich functions.
Principle
The NDT530 (N1) model uses the eddy Current principle for measurement of the thickness of nonconductive coatings on nonferrous metal substrates.
Applications
Manufacturing, metal processing industry, commodity inspection, chemical industry and other fields detect fireproof layer, anti-corrosion layer, enamel layer, platings, paints layer, Babbitt tile, phosphating layer, aluminum tile, copper tile, paper thickness measurement
