Overview

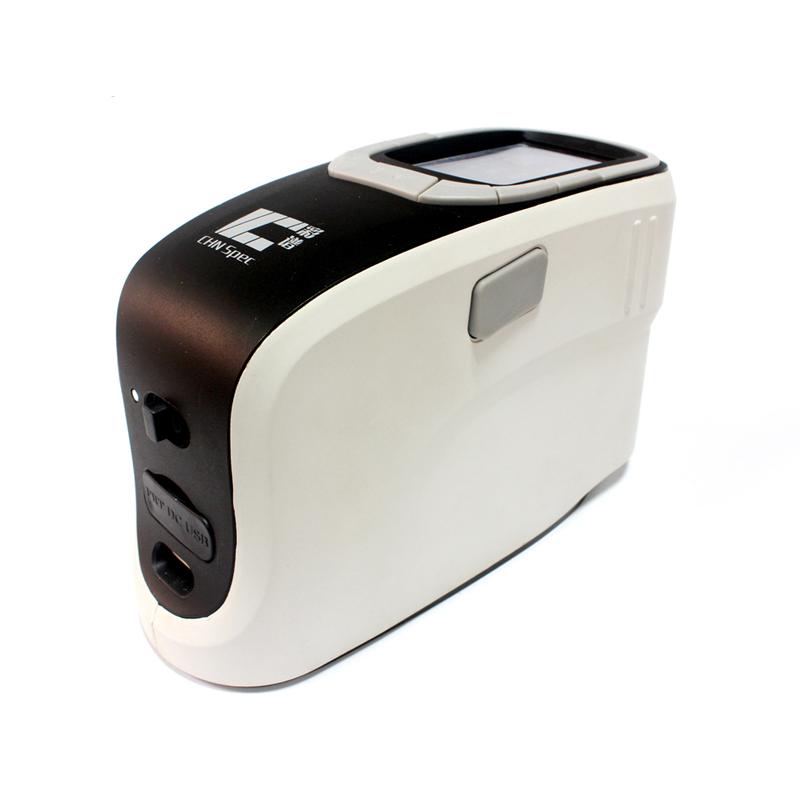

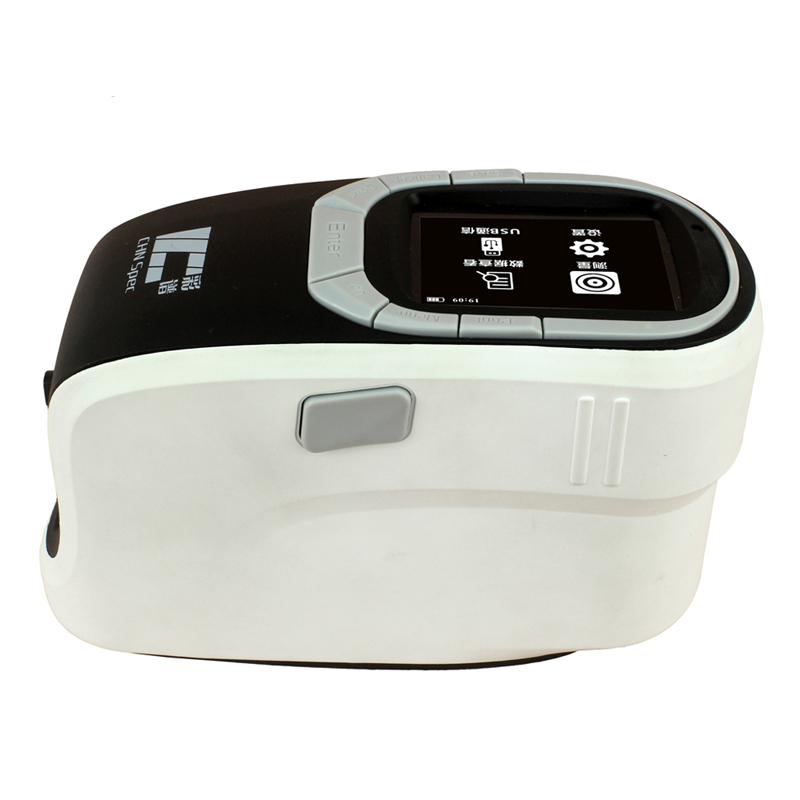

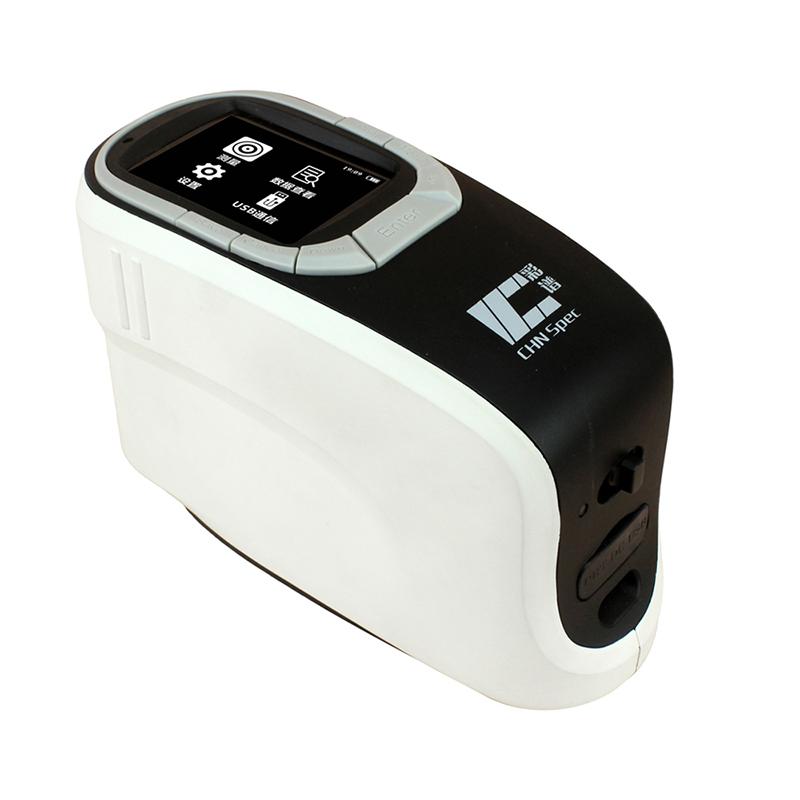

The CHNSPEC CS-600CG Portable 45/0 Colorimeter is a precision Color measuring instrument with 45 ° annular illumination and 0 ° viewing angle structure. It integrates Color and 60 ° gloss measurement functions, features a high resolution full color true color screen and a large capacity lithium battery, suitable for quality monitoring and Color data management in a variety of industries.
Features
1. 45/0 structure, circular lighting system eliminates direction dependence, improves accuracy and Repeatability, and reduces the influence of lines
2. Compatible with 60 ° gloss measurement, built-in High Accuracy Gloss Sensor
3. Comply with CIE, ISO, ASTM, DIN and other international Color measurement standards
4. Color management software as standard, support data management, history, test report generation
5. Each instrument has passed the National Measurement verification, and the data Traceability is sent to the National Measurement Institute

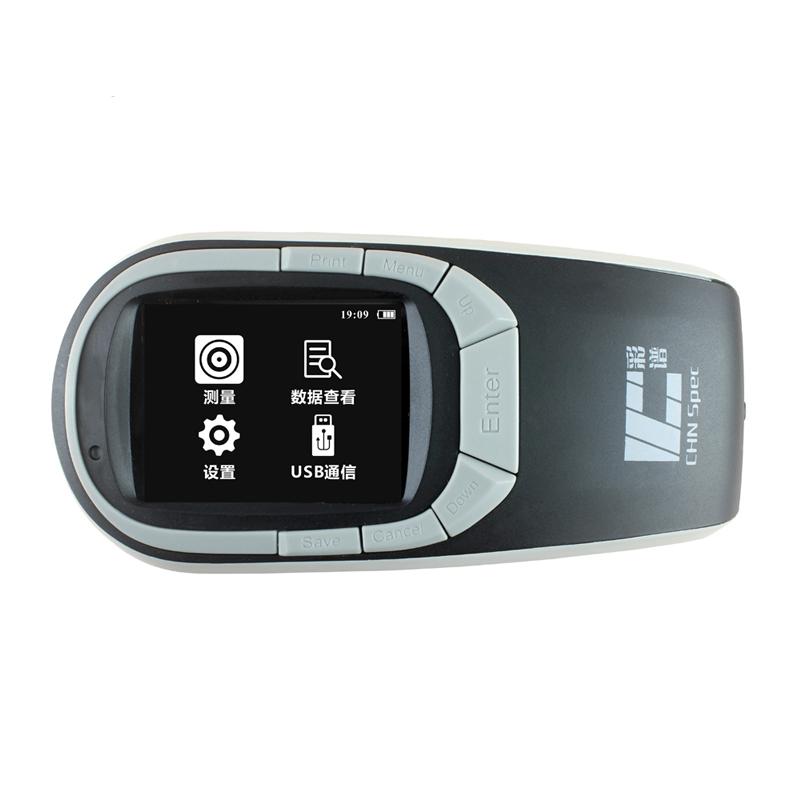

6. Equipped with large capacity rechargeable lithium battery, high resolution full color screen, USB and Bluetooth connection, configurable micro printer
Principle
The instrument uses a 45/0 Optical inspection structure, illuminates the sample surface through a 45 ° annular illumination system, and receives reflected light signals at a 0 ° viewing angle. The High Sensitivity Silicon Photodiode Sensor analyzes the Reflection spectrum, and combines the built-in Gloss measurement Sensor to obtain Color and Glossiness data simultaneously.
Applications
Quality Control and Color Data Management for All Industries
Standards
CIE-15-2004、ASTM-D523、ASTM-D2244、ASTM D2457
Steps
1. Boot and select Operating language
2. Align the instrument measurement port to the sample surface
3. Trigger the measurement button to get Color and Gloss data
4. Transfer data via USB or Bluetooth connection to PC
5. Use standard software for data management and analysis
6. Optional micro printer to print test results
Notice
• Operating Ambient Temperature should be kept within the range of 0-45 ° C
• The relative humidity should not exceed 80% (at 35 ° C) to avoid condensation of water vapor
• Instrument weight about 800g (excluding battery), pay attention to handle with care when using
• The battery is a rechargeable type with repeatability, please charge it according to the specifications
• Ensure that the sample surface is clean during measurement to avoid contamination affecting Measurement accuracy
