Overview

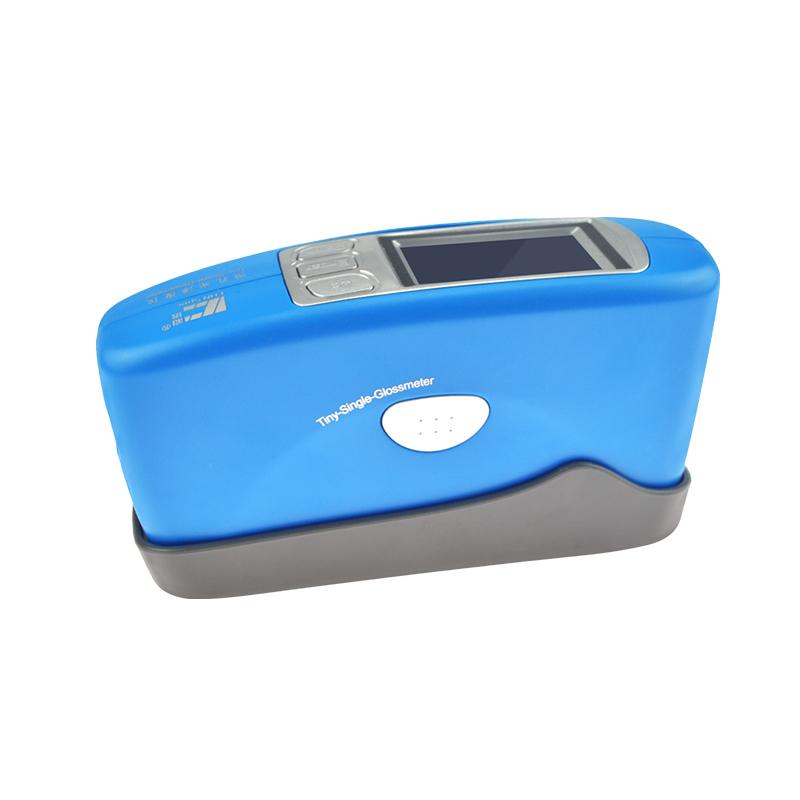

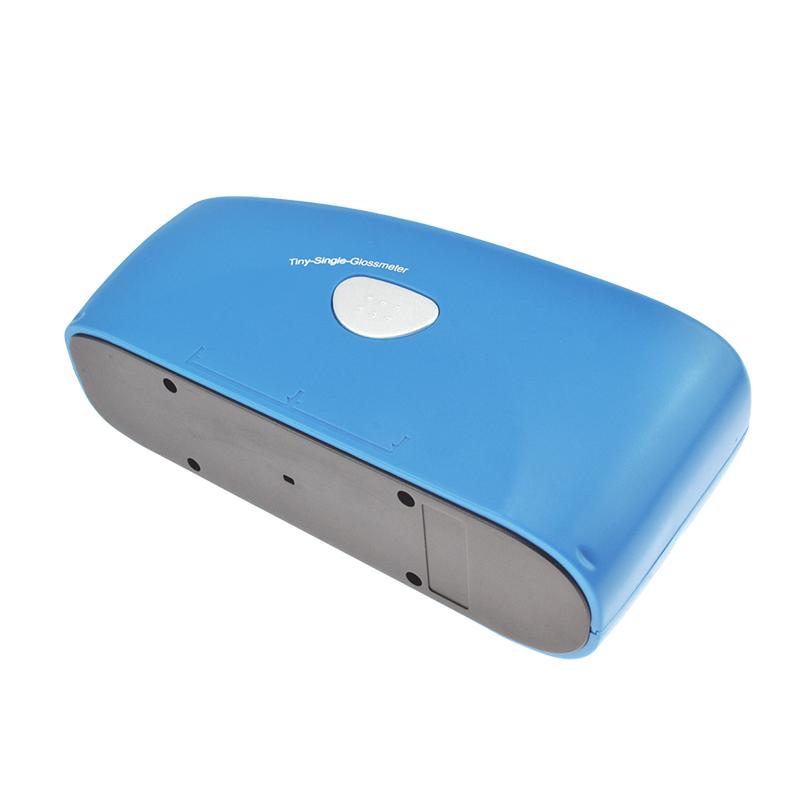

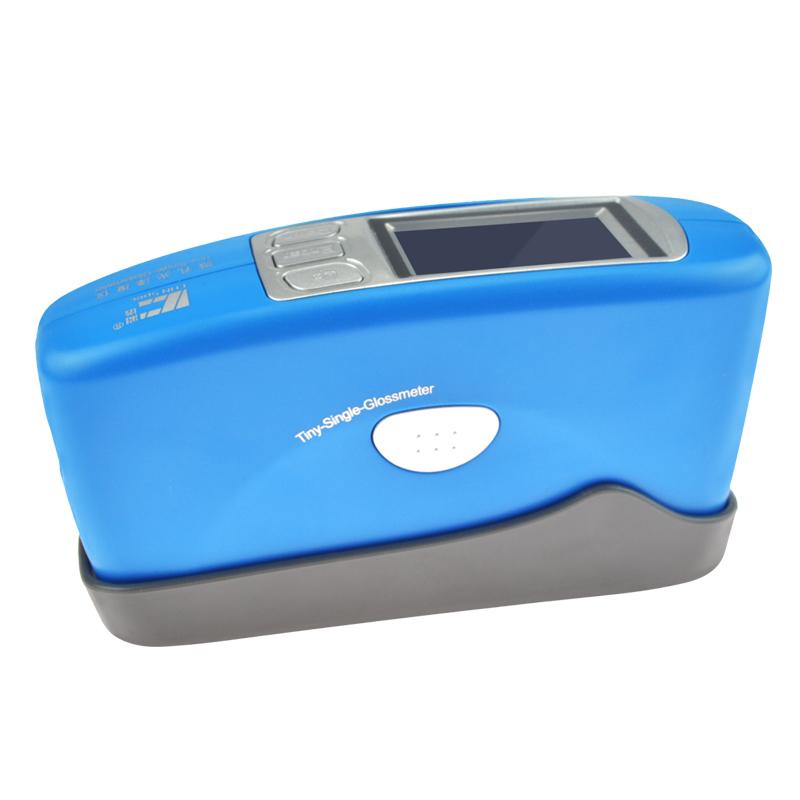

The CHNSPEC CS-300S microporous glossmeter is a precision instrument specially designed for very small aperture measurement. It adopts a 2 * 3mm measurement diameter and is suitable for specular gloss measurement of curved surfaces, irregular objects and planes. The instrument has built-in simple and statistical measurement modes, and comes standard with powerful PC data management software. It supports USB data transmission and Data analysis.
Features

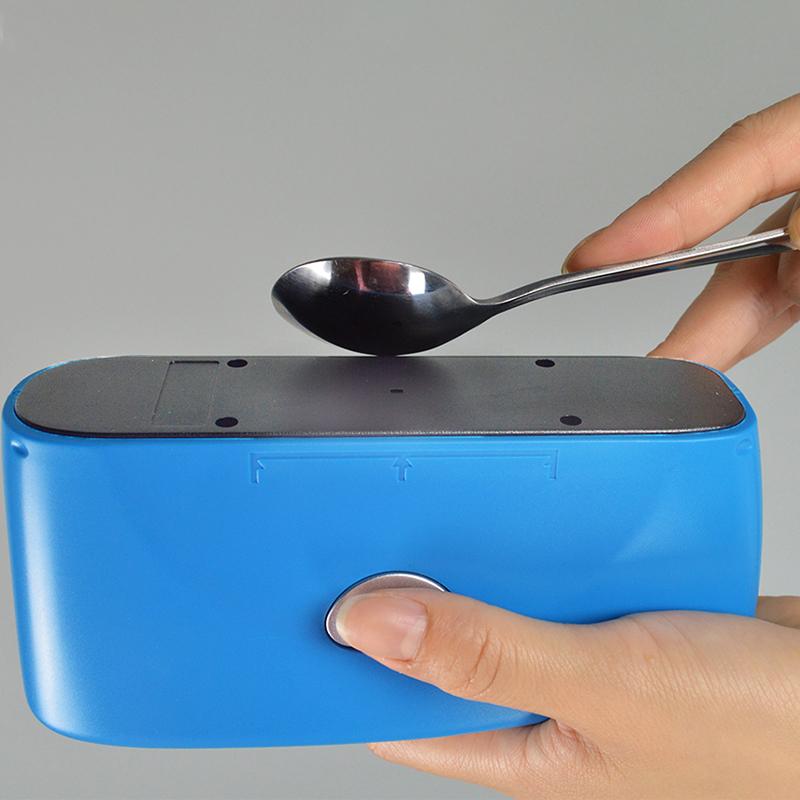

1. Very small aperture measurement: 2 * 3mm measurement diameter, suitable for curved surfaces, irregular objects and plane specular gloss measurement
2. High Repeatability: Illuminant optimized design, dual optical path technology, using Japanese Sensor, American high-end op amp chip and processor chip to ensure stable Gloss data
3. Multiple Measurement modes: Built-in simple mode and statistical mode, simple mode directly displays Glossiness data, statistical mode can perform Glossiness comparison and difference analysis
4. Powerful PC data management software: data transmission through USB data cable, support Data analysis and printing test reports
5. High power design: 3000mAH rechargeable lithium battery, continuous measurement 25000 times, strong battery life
Principle
The instrument adopts dual optical path technology and optimized Illuminant design, combined with Japanese Sensor, American high-end op amp chip and processor chip, to detect the specular gloss of the object surface under 60 ° Measurement Angles. The Measuring Area is 2 * 3mm, and the Measurement time only takes 1 second to ensure accurate and stable data.
Applications
Eletroplating, Metal, Plastic, Miscellaneous
Steps
1. Select Measurement mode (simple mode or statistical mode)

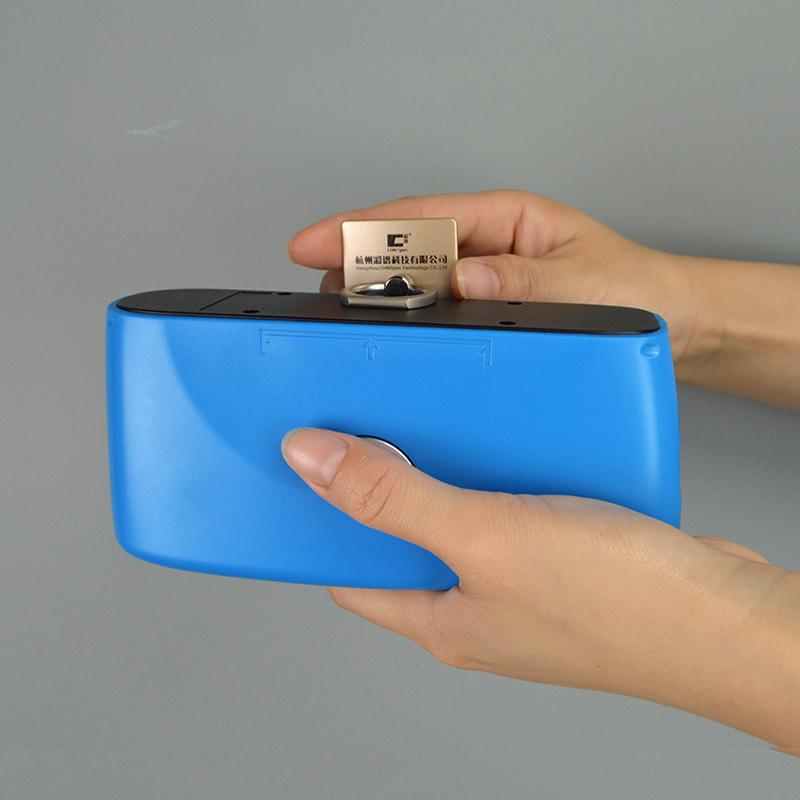

2. Aim the instrument measurement port at the surface of the measured object
3. Start measurement, the instrument automatically collects Glossiness data
4. Connect to PC via USB data cable, use data management software for Data analysis and report printing
Notice
• Ensure that the instrument measurement port is in close contact with the measured surface during measurement
• Avoid use in high temperature, high humidity or condensation environments
• Regularly calibrate instruments to ensure Measurement accuracy
• Clean the measurement port in time after use to prevent pollution from affecting the data
• When not in use for a long time, it is recommended to store it after it is fully charged.
