Overview

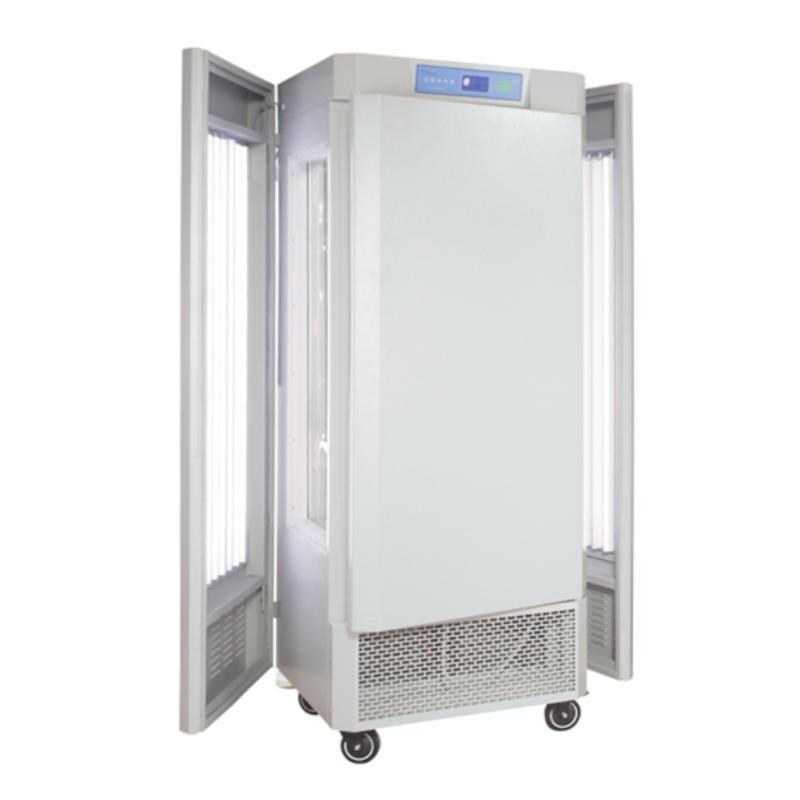

YIHENG MGC-350BP-2L LED Illuminant light chamber is a special test equipment suitable for plant growth and tissue fostering, seed germination, seedling raising, microbial fostering test, insect small animal feeding, water quality monitoring BOD determination, medicinal materials wood building materials aging test and other fields. It provides light, thermostatic, constant humidity environment, adopts LED Illuminant and intelligent control technology to ensure the accuracy and Stability of the experiment.
Features
1. Humanized design: fluorine-free green environmental protection, touch button menu operation, mirror stainless steel liner easy to clean, large-screen LCD display, 30 sets of programs can be set.
2. LED Illuminant advantages: no thermal interference, energy saving and environmental protection (80% lower energy consumption), small size, long stable life (more than 30,000 hours), fast Response speed.
3. Intelligent control technology: simulate natural temperature changes and Illuminant, power outage automatic storage parameters, automatic control of circulating wind speed, equipped with LED Illuminant suitable for plant growth.
4. Intelligent multi-stage programmable control: Program control temperature, Humidity, Illumrination degree, time, to achieve automatic operation.
5. Continuous operation technology: two sets of Compressors are automatically switched in turn to ensure long-term operation.
6. Safety functions: independent temperature limit alarm, fault information display, temperature alarm.
7. Data Control system (optional): RS485 or USB interface, data recording, graphic display, failure analysis.
Principle
The LED lighting chamber provides heat-free and energy-saving light through the LED Illuminant, combined with the intelligent Control system to simulate the temperature, Humidity and light changes of the natural environment. Multi-stage programmable technology is used to automatically adjust the parameters, and two sets of Compressors are switched in turn to achieve continuous operation to ensure stable experimental conditions.
Applications
Plant growth and tissue fostering, seed germination, seedling raising, microbial fostering test, insect small animal feeding, water quality monitoring BOD determination, medicinal materials wood building materials aging test
Steps
1. Set program parameters (such as temperature, Humidity, Illumrination degree) through touch buttons and menu interfaces.
2. Select and start the program, and the device will automatically control the operation.
3. Monitor the data and fault information on the LCD screen.
4. After the experiment, the removable liner Shelf was cleaned and disinfected.
Notice
• Equipment Ambient Temperature should be in the range of + 5~ 30 ℃.
• Avoid blowing down plant seedlings with too fast circulating wind speed.
• Pay attention to the temperature limit alarm system to prevent the temperature from exceeding the limit.
• Optional features such as CO2 controller require additional booking.
• When running for a long time, ensure that the power supply is stable.
