Overview

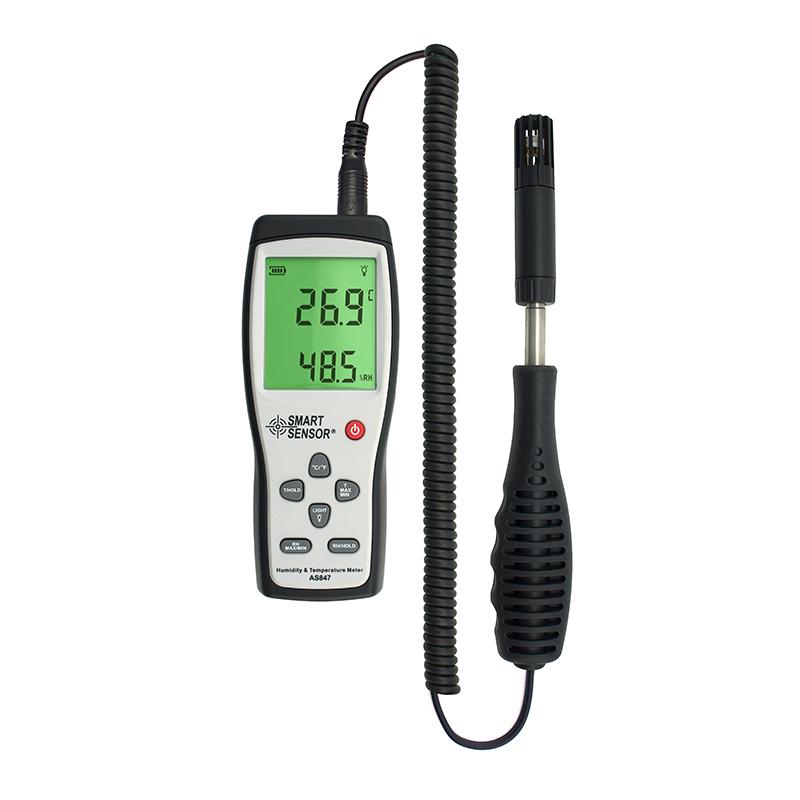

The SMART SENSOR AS847 Thermohygrometer (split) is a multifunctional environment monitoring instrument with wide range temperature measurement (-10~ 50 ° C or -20~ 1000 ° C with K-type Thermocouple) and Humidity measurement (5~ 98% RH), high accuracy and support ℃/F unit conversion, powered by a 9V battery, portable design for a variety of application scenarios.
Features
1. Dual temperature range coverage -10~ 50 ° C and -20~ 1000 ° C (K-type Thermocouple)
2. High Accuracy temperature measurement, error +/- 1.5 ℃, resolution 0.1 ℃
3. Humidity Measurement range 5~ 98% RH, error +/- 5% (5-40%) or +/- 4% (41-80%), resolution 0.1%
4. Support ° C/° F unit conversion to adapt to different needs
5. Portable design, size 156 * 66 * 33mm, weight 275g, powered by 9V battery
6.Split structure for flexible installation and operation
Principle
The Thermohygrometer detects Ambient Temperature and Humidity through the built-in Sensor. The temperature measurement uses Thermocouple technology (K type) to expand the high temperature range. Humidity measurement is based on the principle of capacitive Sensor. The data is displayed in digital form on the display screen after processing, and the unit conversion function is supported.
Applications
Industrial environment monitoring, Laboratory Temperature and Humidity control, Warehouse management, HVAC system, Agricultural greenhouse, Food processing, Pharmaceutical storage, Meteorological observation
Steps
1. Install a 9V battery to ensure that the power supply is normal
2. Connect the temperature sensor (if using a K-type Thermocouple) to the split host
3. Turn on the power switch of the device
4. Select the desired temperature unit (° C or ° F)
5. Place Sensors in the environment to be tested
6. Read Temperature and Humidity Data on Display
7. Turn off the power after use to save power
Notice
• Avoid Exposure to Extreme Temperatures or Humidity Conditions to Prevent Damage to the Sensor
Periodically calibrated to ensure measurement accuracy, at least once a year is recommended
• When using K-type Thermocouples, ensure that the connection is firm and Probe is suitable for high temperature environments
• Replace the battery in time when it is low to prevent data errors
• Wipe with a soft cloth when cleaning, avoid using chemical solvents or water to rinse directly
Store in a drying, cool place to avoid strong vibration or impact
