Overview

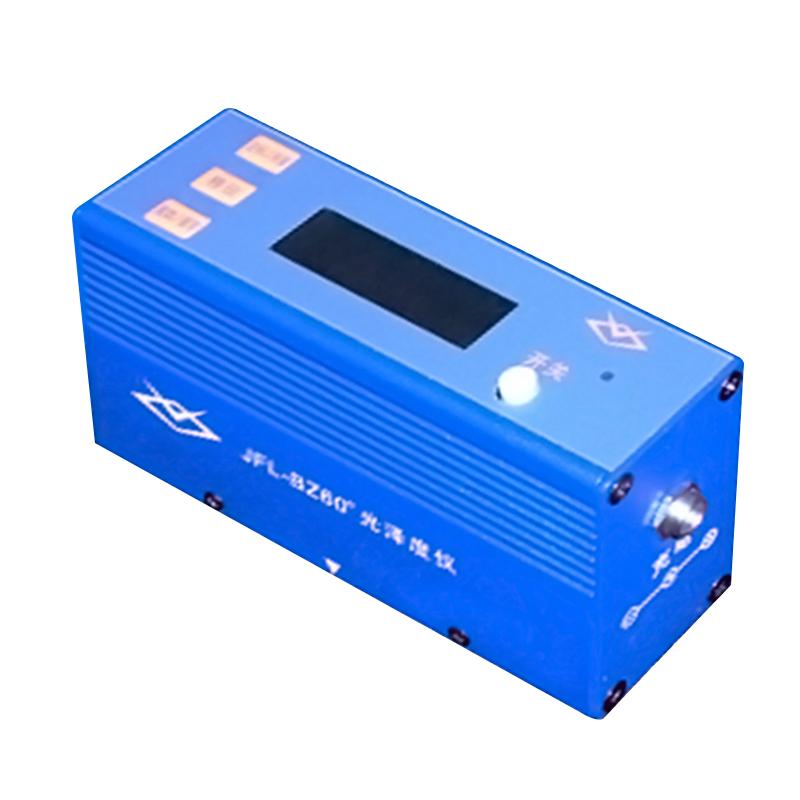

JFL JFL-BZ60M glossmeter is a smart Glossiness Meter for metals. It adopts a 60 ° projection angle, Measurement range 0~ 3000Gs, and the error is less than 2Gs. The instrument can meet the high Gloss surface measurement of all metals, and is also suitable for the surface Gloss unit measurement of Coatings, paints, plastics and other products in the range of 0-199 ordinary Gloss. It has the characteristics of small size, easy portability, accurate and stable measurement.
Features
1. Designed for Metal High Gloss Surfaces
2. Measurement range up to 0~ 3000GU
3. Small measurement error, only +/- 2GU
4. Compact size, easy to carry
5. Accurate and stable measurement
6. Suitable for surface Gloss measurement of various materials
Principle
The glossmeter adopts 60 ° Projection Angle Measurement principle. Optical inspection measurement is carried out on the sample surface through the measurement window, and the reflected light intensity of the surface is converted into Glossiness value display.
Applications
Metals, Coatings, paints, inks, Plastics, Stone, Flooring, Wood
Standards
ISO-2813、ISO-7668、GB8807
Steps
1. Put the measurement window on the black velvet board, press the "set number/zero" button, and the displayed value is 0.0
2. Use the black Glass standard board instead of the black velvet board, and press the "Calibration/measurement" button to enter the setting state
3. Adjust the display value by "shift" and "set number/zero" keys to be the same as the nominal value of the black Glass standard board
4. Press the "Calibration/measurement" button to complete the setting
5. Put the measurement window on the white ceramic standard board to verify that the error should not be greater than +/- 1.2 Gloss units
6. Sample gloss measurement after calibrating
Notice
• When the power is low, the words "bAtt" are displayed, and it should be charged with a dedicated charging power supply in time.
• Charging time about four hours
• Charging standard is "< unk >"
