Overview

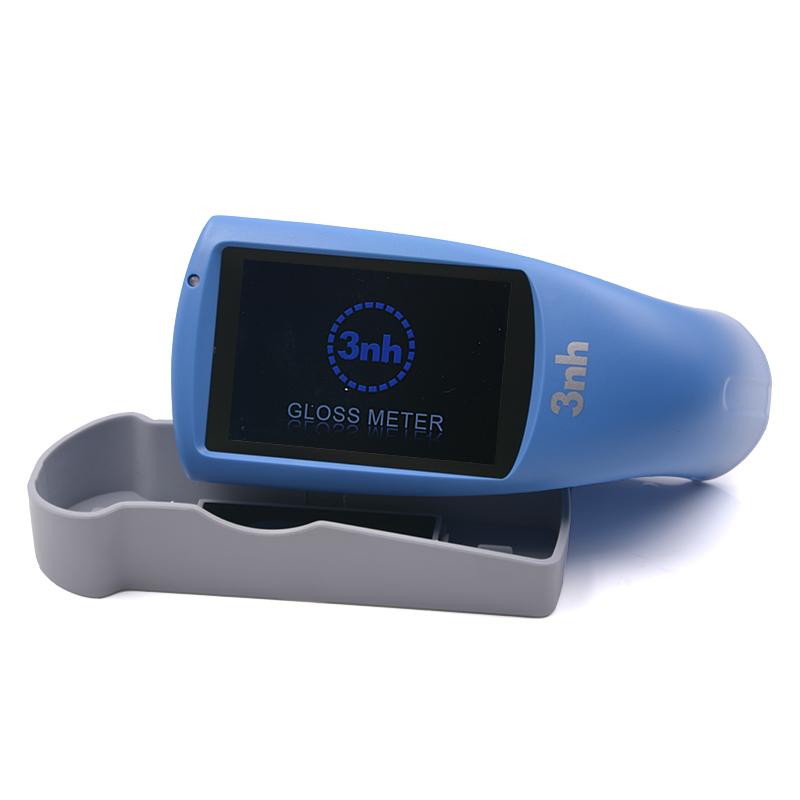

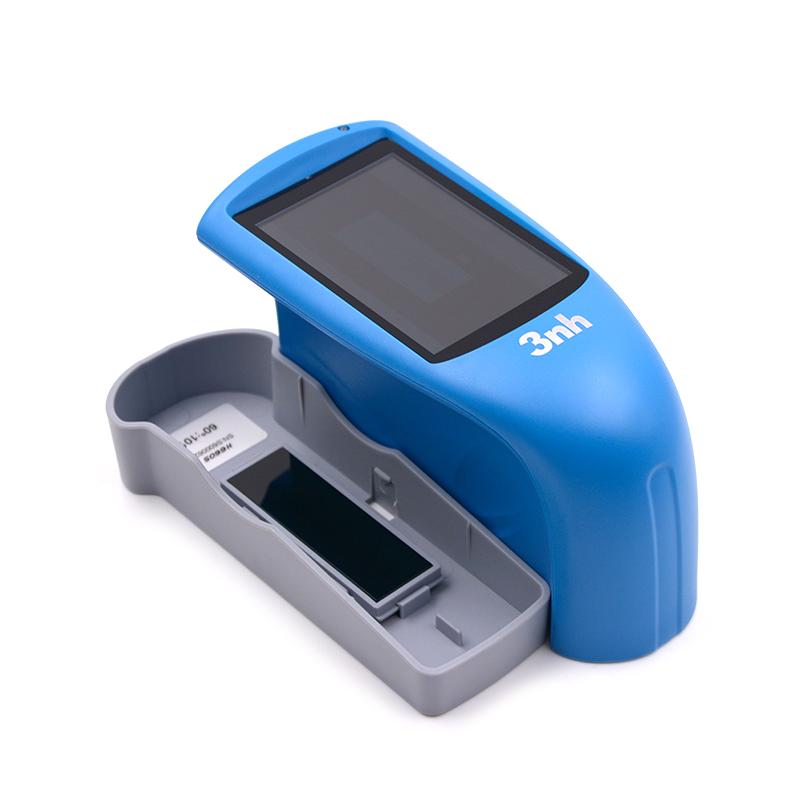

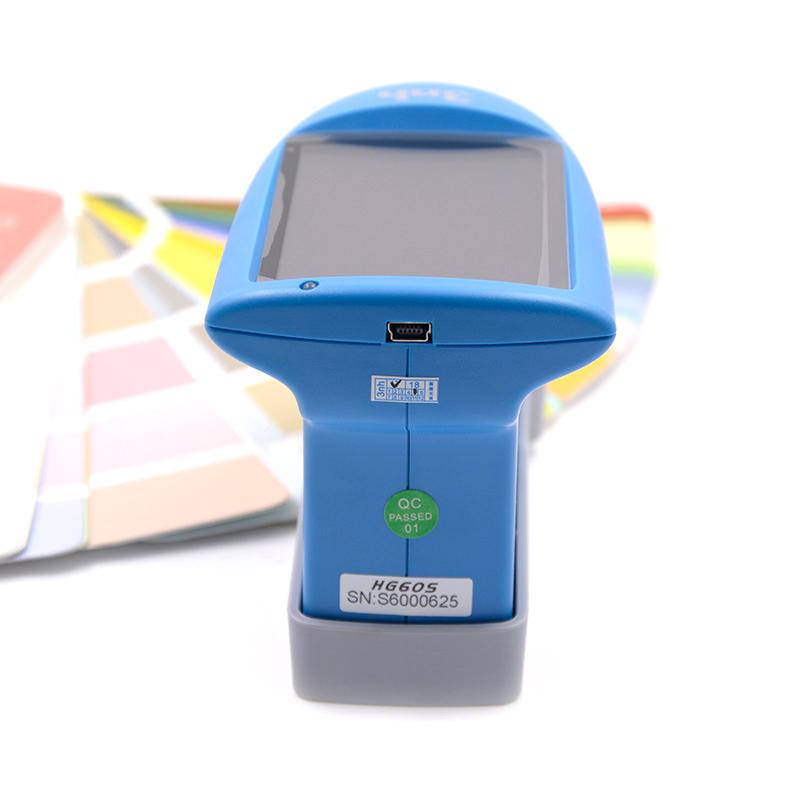

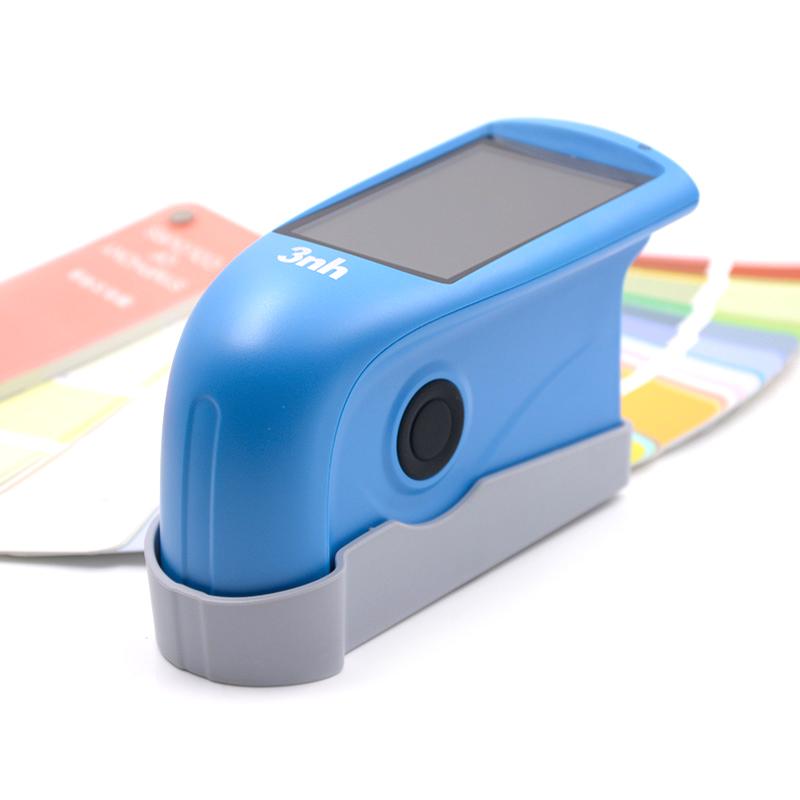

Sanenchi/3nh paints glossmeter HG60S is an economical Glossiness detection instrument with a Measurement Angles of 60 °, designed and manufactured according to the national standard GB/T 9754 and ISO 2813 standards. It has a large color LCD screen, beautiful and stylish design, high-quality internal hardware, built-in rechargeable battery, environmentally friendly and long battery life. The instrument is widely used in Coatings, inks, plastics and other fields.
Features
1. Compliant with standards ISO2813, GB/T9754, ASTMD523, ASTMD2457
2.3.5 inch large color screen, high resolution (480 * 320) full viewing angle display

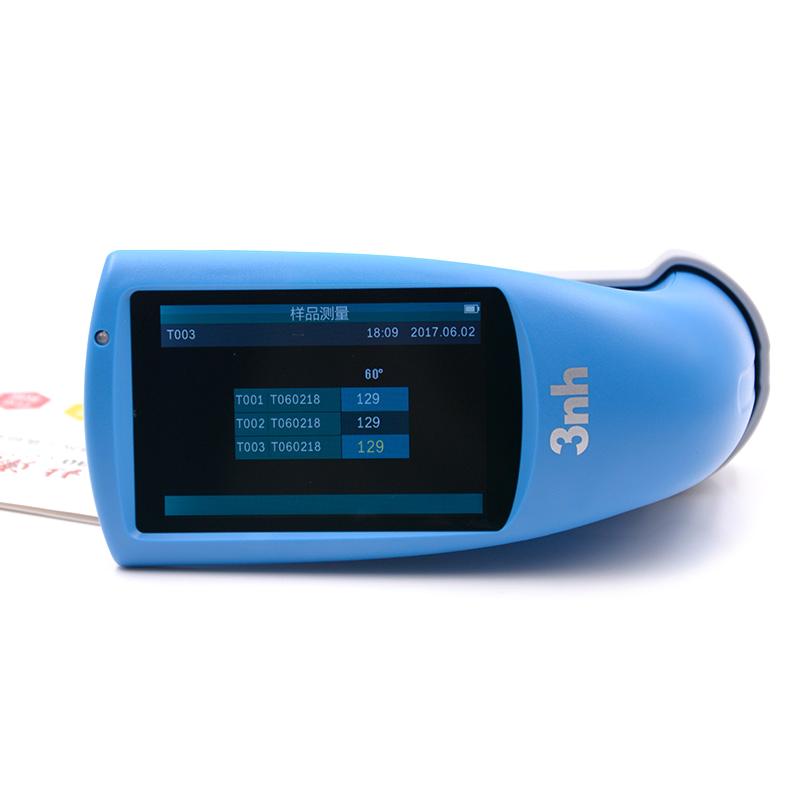

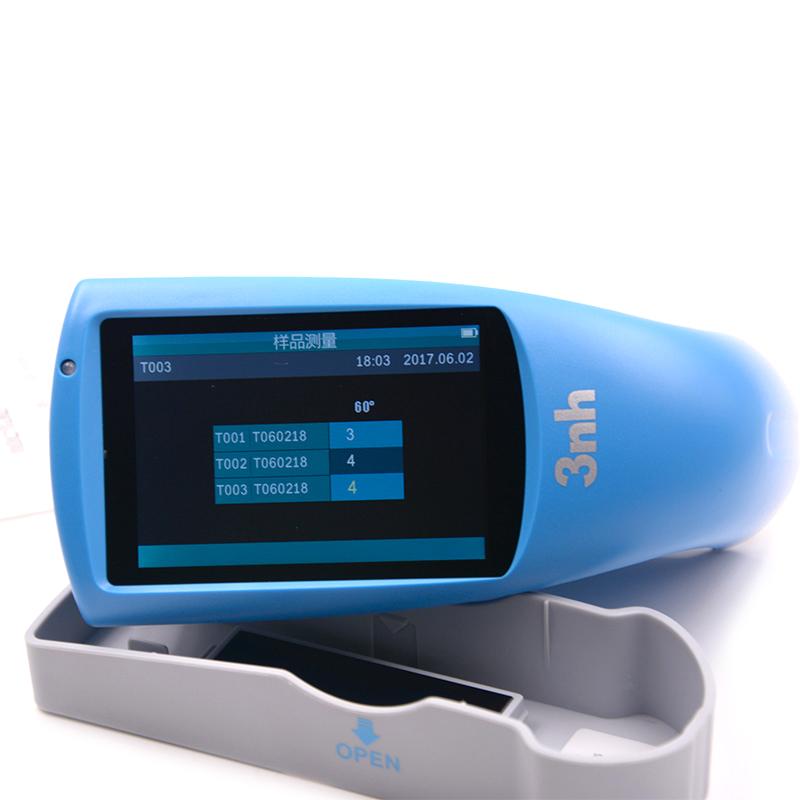

3. Multiple sets of measurement data are displayed at the same time, which is convenient for comparison
4. Utilize high hardware configuration and integrate a number of innovative technologies
5. Appearance design is simple, atmospheric and ergonomic structural design is well combined
6. Flexible choice Automatic calibration, simple and convenient operation
7. With automatic shutdown function, saving power consumption
8. Built-in rechargeable battery
Principle
HG60S paints glossmeter through 60 ° Measurement Angles, according to ISO 2813 and GB/T 9754 and other standards, using the built-in Optical inspection system to detect the Glossiness of the sample surface, Measuring Area is 9 * 15mm, Measurement time is only 0.5 seconds, to ensure fast and accurate measurement results.
Applications
Glossiness measurement in paints, coatings, inks, plastic electronics, furniture, ceramics, Hardware, marble and other industries
Standards
ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457
Steps
1. Long press the "switch/measurement button" for 3 seconds to turn it on, the indicator light is on and the Logo interface is displayed, and it will automatically enter the measurement interface after a few seconds
2. After turning it on, press and hold the "switch/measurement button" again for 3 seconds to shut down.
If the screen is not operated within 3.5 minutes, it will automatically shut down if it is not operated within 1 minute after the screen is closed.
4. Automatic calibration function is optional, decide whether to Automatic calibration according to the last shutdown mode
5. Manual calibration is required when the environment changes, and the original standard board is used to ensure that the working surface is clean
Notice
• When the environment changes (such as drastic changes in altitude, temperature, Humidity) must be calibrated
• Use the standard plate provided by the original factory to calibrate
• Clean the working surface of the standard board with a wipe cloth before calibrating to avoid dust
Standard board should avoid exposure to rays of light and keep it properly
• It is recommended to send the standard board back to the original factory or a qualified Measurement Research Institute for calibration every year
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 50 ℃, relative humidity < 85% RH without condensation
