Overview

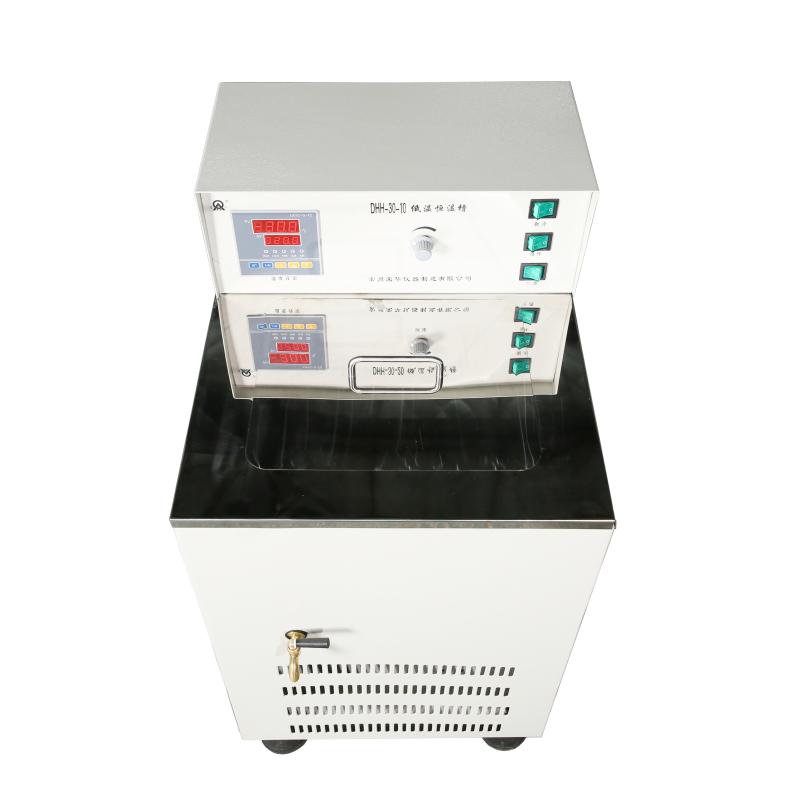

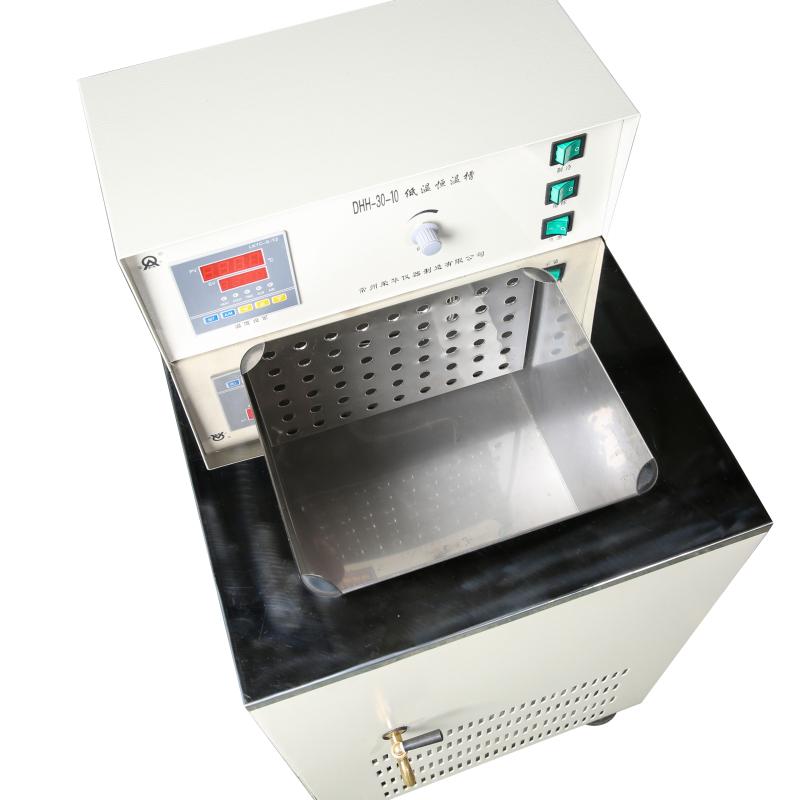

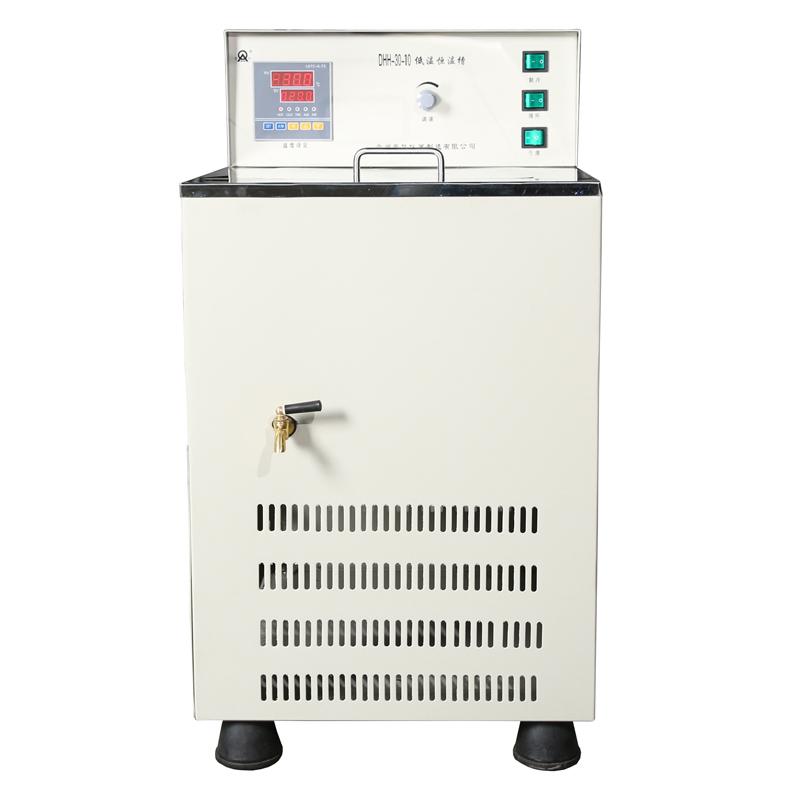

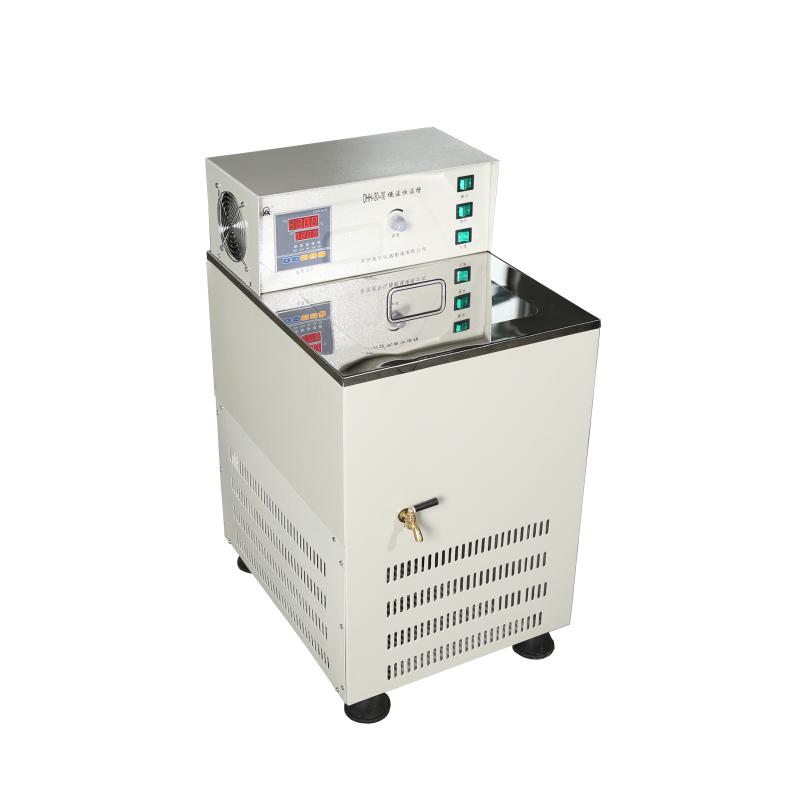

RONGHUA INSTRUMENT DHH-30-10 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -30 ° C to 100 ° C, Temperature Fluctuation of +/- 1 ° C, 10L working volume (250 * 200 * 200mm), opening dimensions of 250 * 200mm.
Features
1. Wide Temperature range -30 ℃ to 100 ℃
2. Temperature Fluctuations as low as +/- 1 ℃
3. Provide 10L Large Capacity Tank
4. Flow rate of circulating pump 0~ 6L adjustable
5. Use alcohol as the refrigeration medium
Principle
Low Temperature Circulating Bath chills down the medium (alcohol) in the tank to the set temperature through the refrigeration system, and uses the circulation pump to maintain the uniform and stable temperature in the tank to achieve accurate temperature control.
Applications
Laboratory temperature control, scientific research, industrial testing, sample thermostatic treatment
Standards
The product information does not mention relevant standards
Steps
1. Power on and turn on the device
2. Set the required temperature parameters
3. Start the circulating pump and adjust the Flow rate
4. Wait for the temperature to stabilize and put in the sample.
5. Turn off the device and cut off the power after use
Notice
• Make sure the medium in the tank is sufficient before use
• Avoid operating outside the Temperature range
• Regularly check the working status of the circulating pump
• Keep equipment well ventilated
• Non-professionals should not disassemble and repair
