Overview

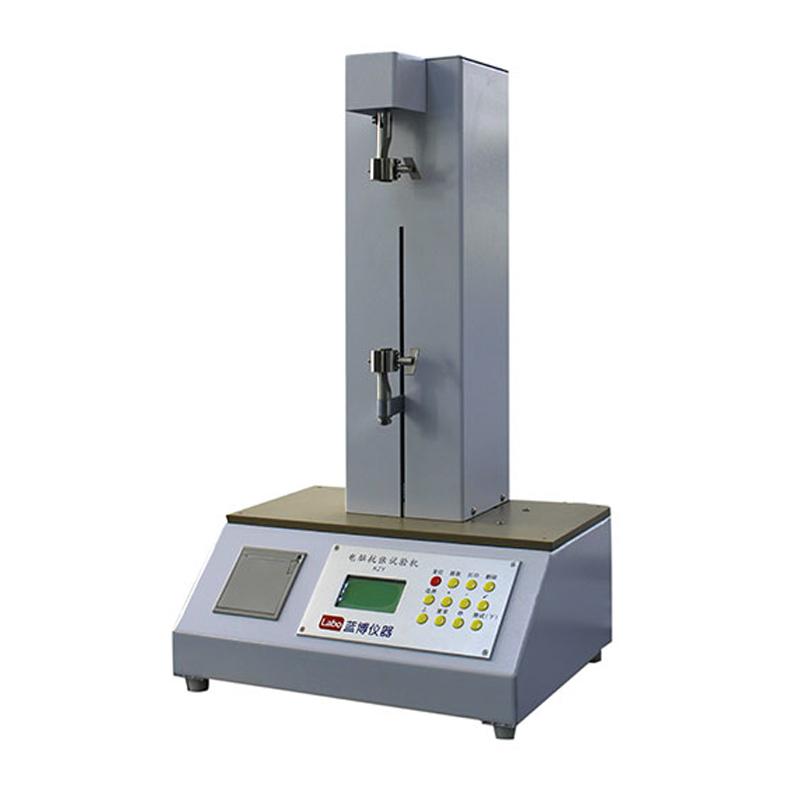

LB-KZY100 Sheet Tensile Strength Tester is a LABO brand product, used for the measurement of Tensile Strength performance indicators of paper and Cardboard, including Tension Resistance, Tensile Strength, Elongation, Break Length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index. The instrument automatically calculates and prints the test results, adopts the international general vertical tensile Measuring method, which has the characteristics of test sensitivity, high Measurement accuracy, accuracy and reliability, ergonomic design, and intuitive user interface.
Features
High Accuracy Force Sensor, Factory Precision Control < 0.5%, better than ISO +/- 1%.
2. Using stepper motor, precision ball screw drive, reasonable design, precision processing, to ensure high repeatability and durability.
3. Professional programming supports later upgrades to ensure the professional level of the instrument.
4. LCD Chinese display, friendly man-machine interface, fully automatic testing, with data statistical processing and micro-printer output functions.
5. Test speed and clip distance can be preset, and the test is fast and effective.
6. The Force Sensor is located above and connected to the upper chuck, which is convenient for users or third parties to use the standard weight for Indication Error calibrating.
Principle
The testing machine adopts international universal Vertical Tensile Measuring method, drives precision ball screw drive through High Accuracy Force Sensor and stepper motor, applies tensile force to paper, Cardboard and other thin sheet materials, automatically measures and calculates tensile resistance, elongation and other performance indicators, and the results are output through the printer.
Applications
Paper, Cardboard
Standards
GB/T12914、GB/T453、GB/T22898、GB/T24328.3、GB/T24328.4、ISO1924-1,-2,-3、ISO12625-4,-5、TAPPI T494、T456、SCAN P38,P67、PAPTAC D34、DIN 53112/1、APPITA/AS 1301.448
Steps
1. Preset clip distance and Test speed.
2. Install the specimen between the upper and lower chucks.
3. Start the test, the instrument automatically completes the tensile measurement.
4. The instrument automatically calculates and displays the test results.
5. Use a micro printer to output test data.
Notice
• power requirements AC220V +/- 22V, 50Hz, 0.5A, and should be reliably grounded.
• The spacing between the upper and lower collets can be adjusted arbitrarily within the range of 10 to 200mm, and the commonly used spacing includes 50mm, 90mm, 100mm, 180mm, and 200mm.
• Force range of 3~ 100N, resolution 1N, suitable for tissue paper materials.
The lifespan of the LCD screen is about 50,000 hours.
• Dimension 400 * 230 * 700mm, Net weight 31kg.
