Overview

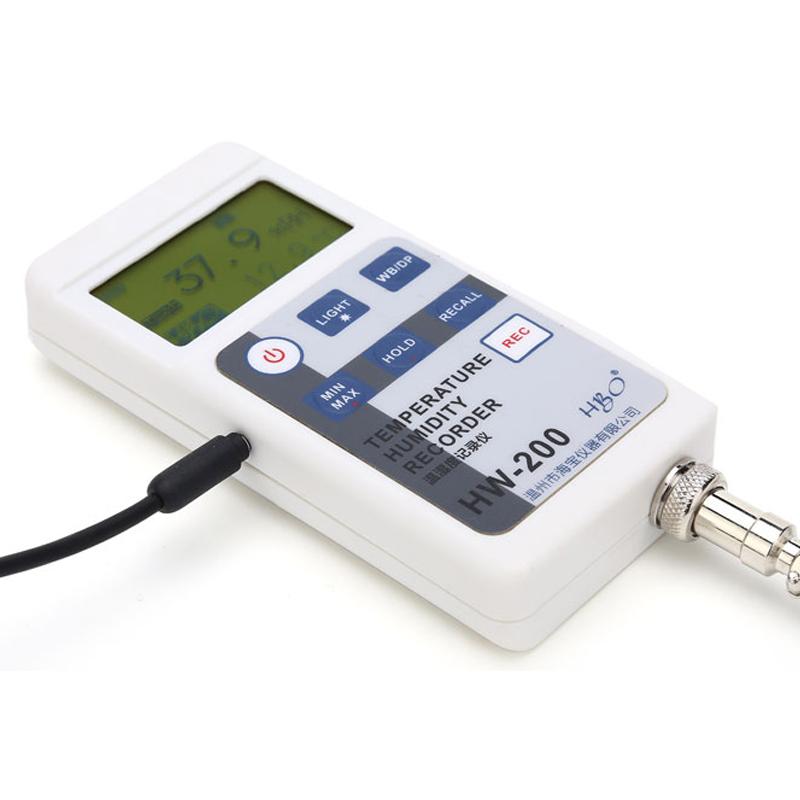

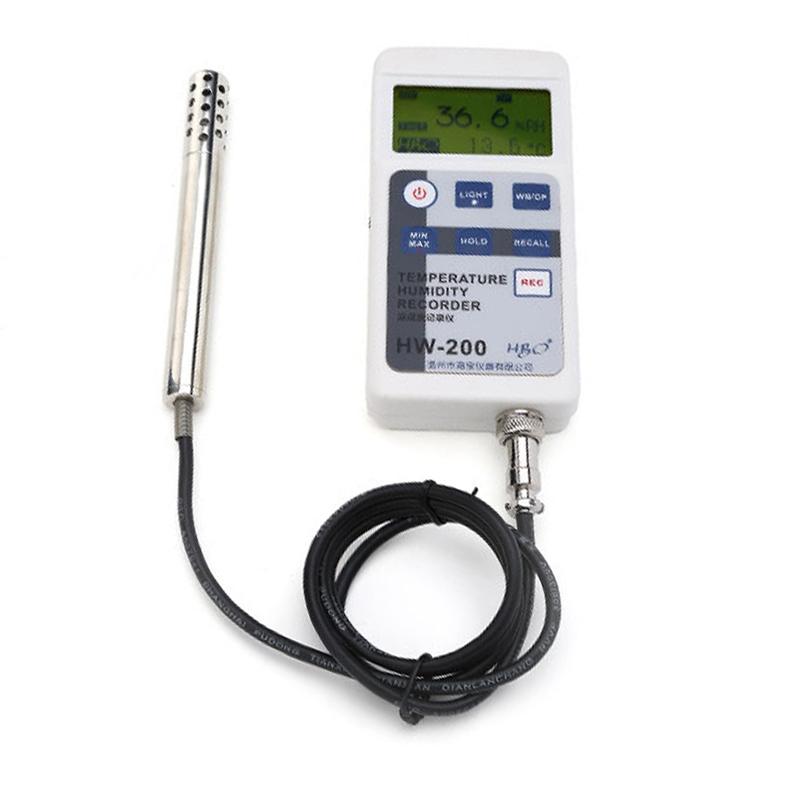

HW200 High Accuracy Temperature Humidity Recorder is a HW series digital display temperature Humidity recorder produced by HBO. It adopts high-quality capacitive polymer film Humidity Sensor and semiconductor temperature sensor. It has temperature compensation and nonlinear correction functions, and the measurement Stability and accuracy are better. Small size, easy to carry, suitable for testing temperature Humidity in various laboratories or outdoor occasions.
Features
1. Can store 8000 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
2. With USB connection function, it can be charged and communicated
3. Connect to the host computer for real-time data reading, storage, analysis, printing and other operations
4. Use point array LCD, white backlight screen
5. The two units ° C and ° F can be switched freely, and will be automatically remembered after shutdown
6. Free switching between three temperatures (wet-bulb temperature, dewpoint temperature, dry bulb temperature), automatic memory after shutdown
7. Automatic shutdown APO function without operation (10 minutes)
8. Min Max Record (MIN Minimum MAX Maximum Record)
9. Data is automatically saved and invoked, and the collection interval can be set
10. High Accuracy, High resolution, High Stability
Principle
HW200 High Accuracy Temperature Humidity Recorder collects environment data through external semiconductor temperature sensor and electronic capacitive polymer thin film Humidity Sensor, with temperature compensation and nonlinear correction functions to ensure measurement accuracy and Stability. The meter data is updated every 2 seconds, and the data can be automatically stored and processed.
Steps
1. Press the ON/OFF button to turn it on, and enter the normal test interface after the instrument self-test
2. Use the function buttons for data retention, recording interval adjustment, backlight control and other operations
3. Turn the recording function on/off through the REC key
4. Read the saved data through the RECALL key
5. Press ON/OFF to shut down and stop data collection
Notice
● Press the ON/OFF button in the power-on state to shut down at any time
● The screen can still display the charging progress during charging
Automatic shutdown after 10 minutes without operation
● In recording mode, the recording interval can be reduced by using the HOLD key
● The recording interval can be increased by using the test mode key
