Overview

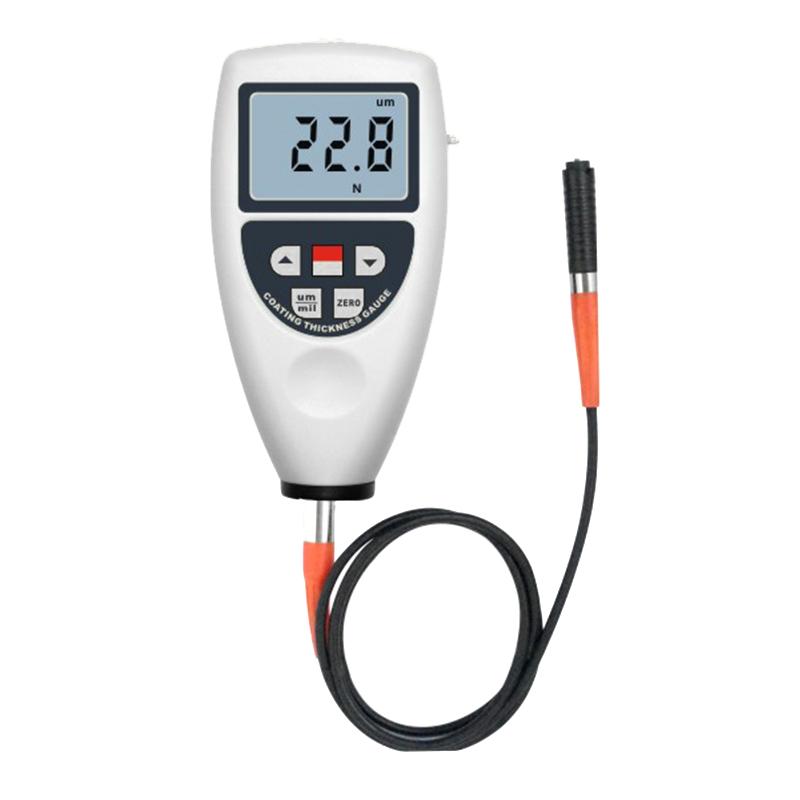

The AMITTARI AC-110AS Coating thickness gauge is a battery-powered Portable measuring instrument based on magnetic Induction and eddy Current principles, compliant with ISO2178, ISO2360, GB4956, GB4957 standards. It fuses computer technology and nondestructive detection technology to accurately measure Coating thickness without damaging the subject.
Features
1. F Probe can directly measure the thickness of the non-magnetically permeable cover layer on the surface of magnetically permeable materials (such as iron, nickel), such as paints, plastics, enamels, copper, aluminum, zinc, chromium, etc., suitable for platings, paints layer, enamel layer, aluminum tile, copper tile, Babbitt tile, phosphating layer, Paper thickness and hull paints, underwater structural parts attachment measurement.
2. Nf Probe can measure the thickness of the insulating coating on non-magnetic conductive metal substrates (such as aluminum, copper, zinc, non-magnetic stainless steel), such as paints, plastics, rubber coatings, and the thickness of the anodic oxidation layer of aluminum or aluminum alloys.
3. Spring guide sleeve Probe with wear-resistant hard metal probe, suitable for hard or rough surface, ensuring constant compression force and stable sampling value.
4. Measurement range, high resolution.
5. Automatic memory calibrated value, easy to operate.
6. Small size and light weight.
7. Digital backlight display, ignoring the difference.
8. Optional RS232C software and cable, support communication with PC, realize data collection, processing, analysis and printing.
9. Equipped with automatic shutdown function, saving energy and electricity.
Principle
The instrument is based on the principle of magnetic Induction and eddy Current for measurement. The principle of magnetic Induction is used to detect the thickness of the non-magnetically permeable covering layer on the surface of magnetically permeable materials, while the principle of eddy Current is applied to the thickness measurement of the insulating covering layer on the non-magnetically permeable metal substrate, and the thickness data is accurately obtained in a nondestructive way.
Applications
Platings, paints layer, enamel layer, aluminum tile, copper tile, Babbitt tile, phosphating layer, Paper thickness measurement, hull paints, underwater structural attachments measurement, anodic oxidation layer thickness measurement
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
1. Select F-type or Nf-type Probe according to the type of material being tested.
2. Place the Probe on the tested surface to ensure stable contact.
3. The instrument automatically measures and displays the thickness value.
4. Optional RS232C cable to connect to PC for data collection and processing.
5. After use, the instrument can automatically shut down to save power.
Notice
Make sure that the Probe is in good contact with the measured surface before measurement, and avoid operating on surfaces with a radius of curvature less than the specified value (F-type convex 1.5mm/concave 25mm, N-type convex 3mm/concave 50mm).
* The thinnest thickness of the substrate is not less than 0.3mm to ensure measurement accuracy.
* Operating temperature range is 0~ 50 ℃, relative humidity below 80% RH, avoid use in extreme environments.
Regularly check the battery level to ensure that the instrument is powered properly.
* Optional accessories such as RS232C data cable, USB data cable, Bluetooth output need to be configured according to requirements.
