Overview

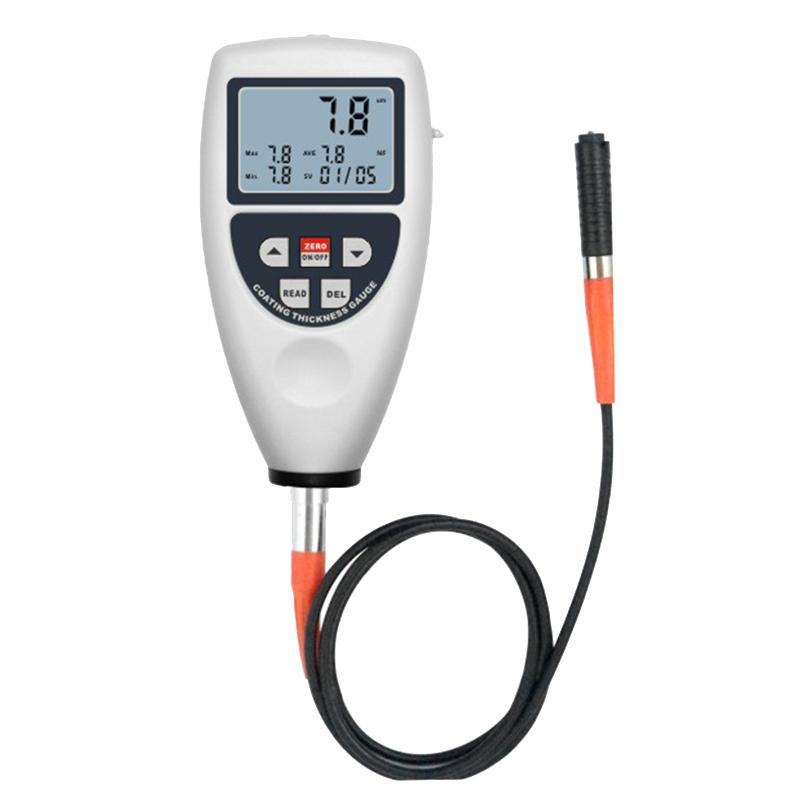

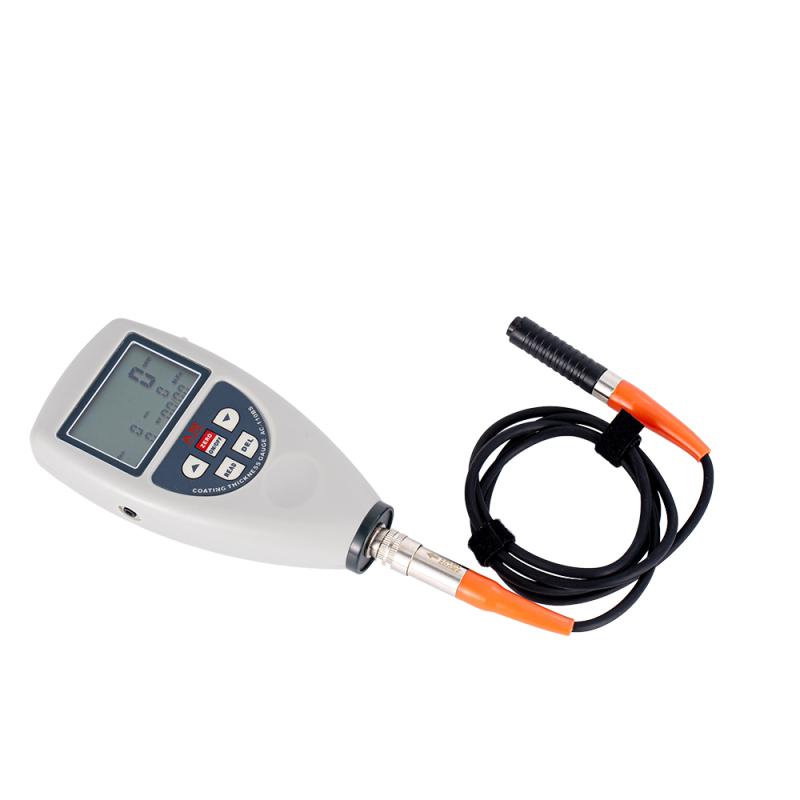

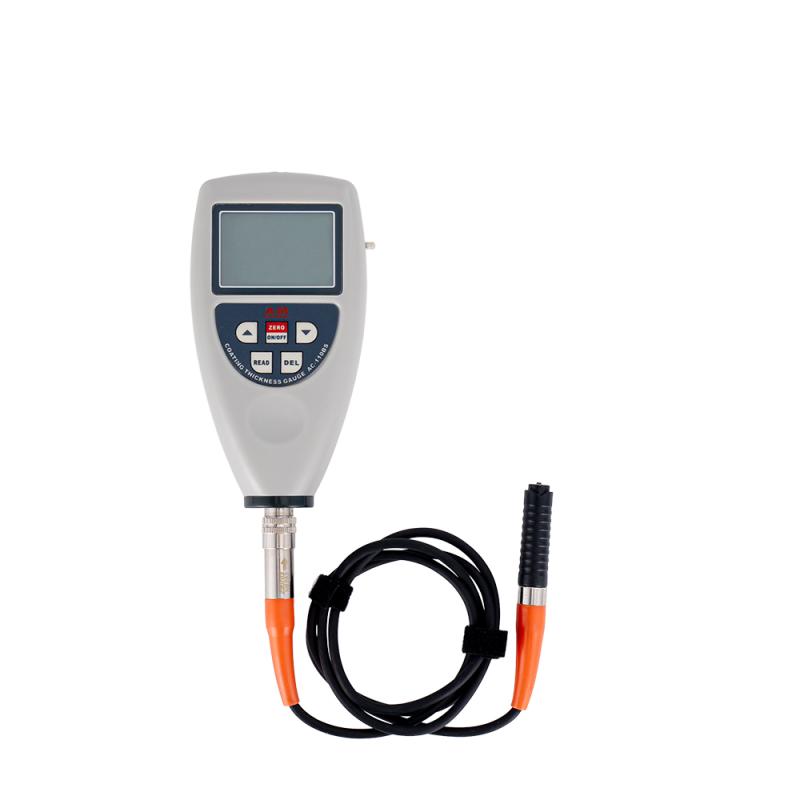

The AMITTARI AC-110BS Statistical Coating thickness gauge (split) uses magnetic Induction and eddy Current principles for measurement of ferrous and non-ferrous substrates. With 99 sets of data storage functions, supports USB and Bluetooth transmission, and the split design provides a variety of Probes to enhance measurement mobility. The instrument complies with ISO2178, ISO2360, GB4956, GB4957 standards, and uses computer and nondestructive detection technology to accurately measure thickness without damaging the subject.
Features
1. Measurement range, high resolution
2. Automatic memory calibrated value, easy to use
3. Small size and light weight
4. Digital backlight display, ignoring poor
5. Equipped with automatic shutdown to achieve power saving function
6. F Probe can measure the thickness of non-magnetically permeable cover on the surface of magnetically permeable materials
7. Nf Probe can measure the thickness of the insulating coating on the non-magnetic conductive metal substrate
8. Probes with wear resistant hard metal probes
9. Can store 99 sets of data, with statistical function
10. Support RS232C to communicate with PC for data collection, processing, analysis and printing
Principle
AMITTARI AC-110BS Statistical Coating thickness gauge uses magnetic Induction and eddy Current principles for measurement. Coating thickness is detected nondestructive by professional Probe contact with the measured surface, and the principle of electromagnetic induction is used to obtain accurate measurement results without damaging the measured body.
Applications
Platings, paints layer, enamel layer, aluminum tile, copper tile, Babbitt tile, phosphating layer, Paper thickness measurement, hull paints and underwater structure attachments thickness measurement, non-magnetically conductive metal substrate insulation overlay measurement, aluminum or aluminum alloy material anodic oxidation layer thickness measurement
Standards
ISO2178、ISO2360、GB4956、GB4957
Steps
1. Press the power button to turn it on.

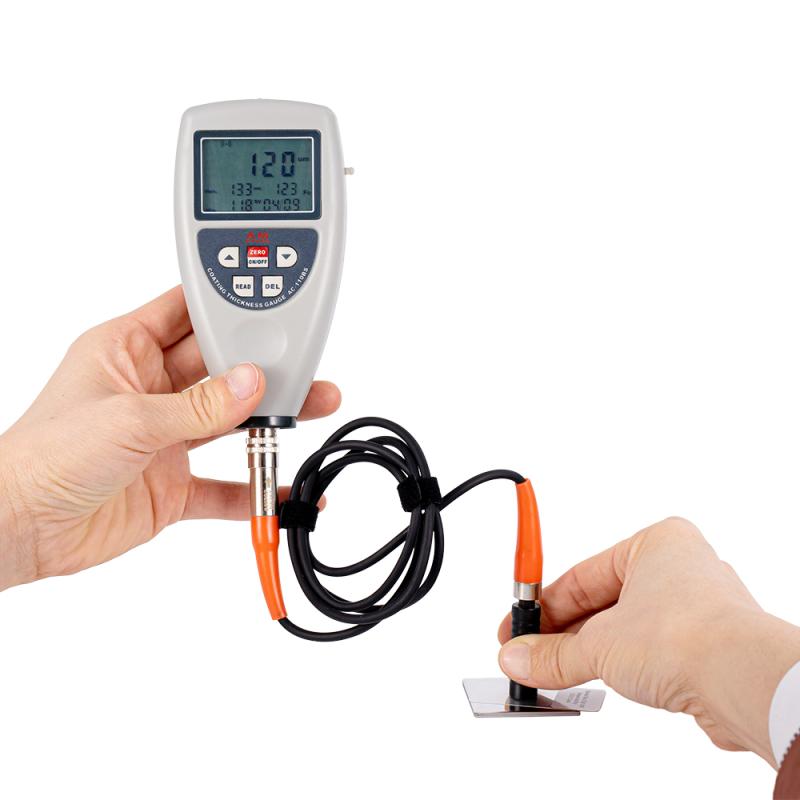

2. Select the appropriate Probe to contact the tested surface
3. Press the read button for measurement
4. Use the add and subtract keys to adjust the parameters
5. Automatic data storage
6. Transfer data via USB or Bluetooth
7. Use the delete key to clear unwanted data
8. Automatic shutdown saves power
Notice
Make sure the thickness of the substrate is not less than 0.3mm.
* Probe vertical contact surface during measurement
* Note that the minimum headroom height is 90mm
* Select F-type or NF-type Probe according to the matrix material
* Operating temperature range 0~ 50 ℃, relative humidity < 80% RH
Regularly check the battery level
* Avoid use in strong electromagnetic interference environments
* Probe clean to avoid abrasion
When storing data, be careful not to exceed the 99-set limit
