Overview

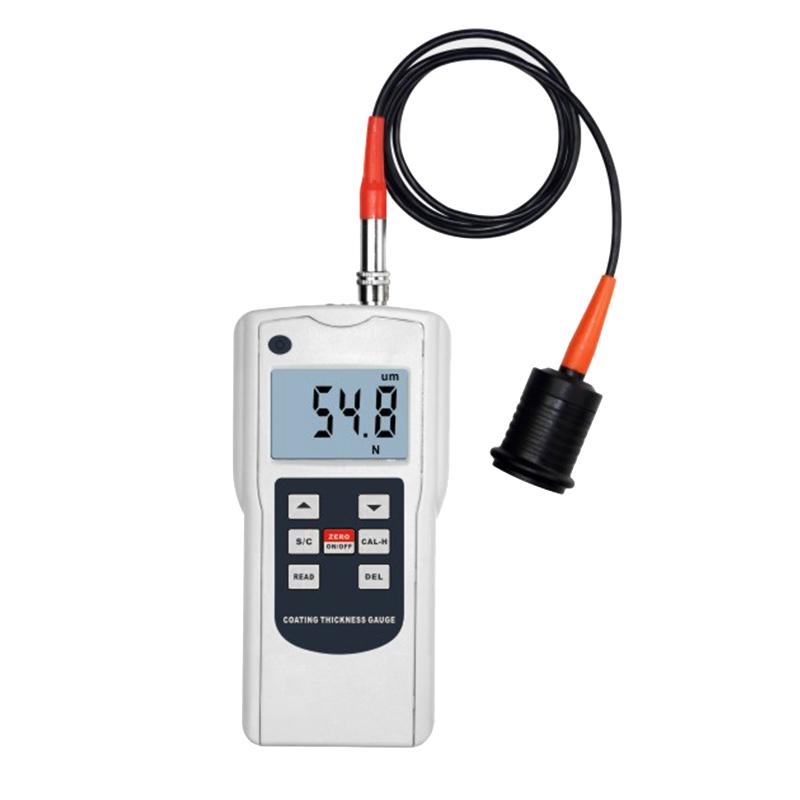

AMITTARI anticorrosive layer Coating thickness gauge AC-112H is a Portable thickness measurement instrument, which can quickly, without damage, and accurately measure the thickness of coatings and platings; it can be used in laboratories and engineering sites; It is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields; It is an instrument required by material protection professionals. AC-112H anticorrosive layer Coating thickness gauge adopts the principle of magnetic Induction. Measuring method in line with international standard ISO2178 and national standard GB4956.
Features
1. It has the ability to automatically identify the material of the tested substrate.
2. Single and continuous Measurement modes are available.
3. There is a buzzer prompt tone during operation, and the buzzer does not sound during continuous measurement.
4. Use USB data cable output to communicate with PC.
5. Provide Bluetooth data output selection.
6. Digital display, Measurement range, high resolution.
7. Automatic memory calibrated value, easy to use.
Principle
AC-112H Coating thickness gauge adopts magnetic Induction principle to measure the thickness of coating and platings.
Applications
Manufacturing, metal processing, chemical industry, commodity inspection and other testing fields
Steps
1. Coating thickness gauge of AC-112H anticorrosive layer is greater than 5mm, it is recommended to calibrate zero before measurement to eliminate measurement errors caused by temperature and Humidity changes.
2. Plug in the Probe, press the power button lightly, and after turning on the power supply of the whole machine, the instrument will automatically enter the measurement state and automatically restore the parameter settings before the last shutdown.
3. After confirming that the calibrate is correct, the measurement can be started. If there is any doubt about the previous calibrate, the calibrate should be performed again. Coating thickness gauge AC-112H Once calibrated, the calibrate result will be automatically stored in the AC-112H Coating thickness gauge. It is not necessary to calibrate again the next time you turn on the measurement, unless there is doubt about the accuracy of the measurement. Press the measurement Sensor against the coating under test, and the value on the display is the Measured value of the coating to be tested. Note that the speed at which the Probe presses the test object should not be too slow. Otherwise, it will cause human measurement errors.
4. To make the next measurement, you need to lift the measurement Sensor to more than 1 cm, and then, the repeability step 3.
5. If necessary, the Measured value can be corrected by adding 1 key or subtracting 1 key. It should be noted that when pressing the add 1 key or subtract 1 key to correct, the measurement Probe must be lifted, otherwise, pressing the add 1 key or subtract 1 key is invalid.
6. AC-112H anti-corrosion layer Coating thickness gauge To replace the Measurement unit to realize the conversion of mm and mil, just press the unit conversion button lightly.
7. To change the Measurement mode and realize the conversion of single measurement and continuous measurement, just press the "S/C" button.
8. After the measurement is completed, tap the power button to turn off the power. This AC-112H anti-corrosion layer Coating thickness gauge has two shutdown methods, namely manual shutdown and automatic shutdown. At any time, just tap the power button to manually turn off the power of the whole machine; on the other hand, if no button is pressed within 50 seconds, it will automatically shut down to achieve power saving function.
Notice
* It is recommended to zero before measurement to eliminate measurement errors due to temperature and Humidity changes.
* Probe pressure on the measured body speed can not be too slow, otherwise it will cause human measurement error.
* When pressing the plus 1 key or the minus 1 key to correct, the measurement Probe must be lifted, otherwise pressing the plus 1 key or the minus 1 key will be invalid.
This instrument is equipped with two shutdown methods: manual shutdown and automatic shutdown (automatic shutdown without operation for 50 seconds).
