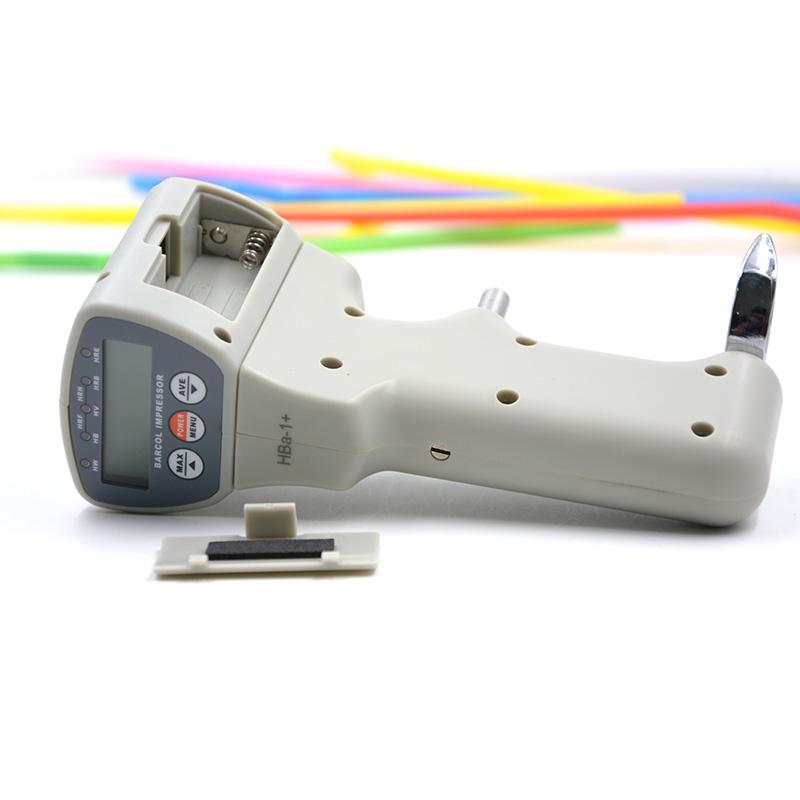

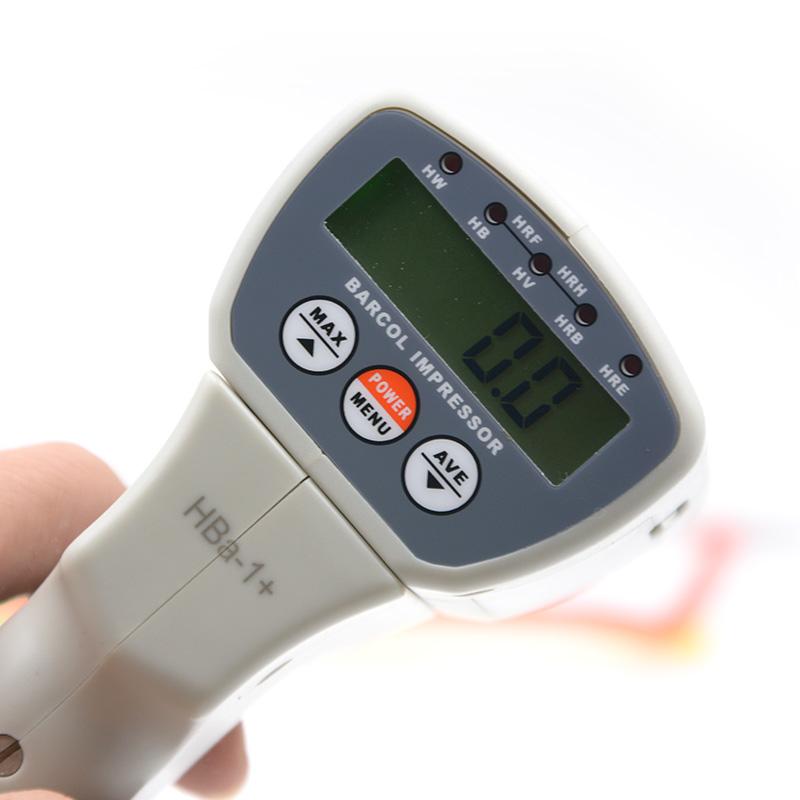

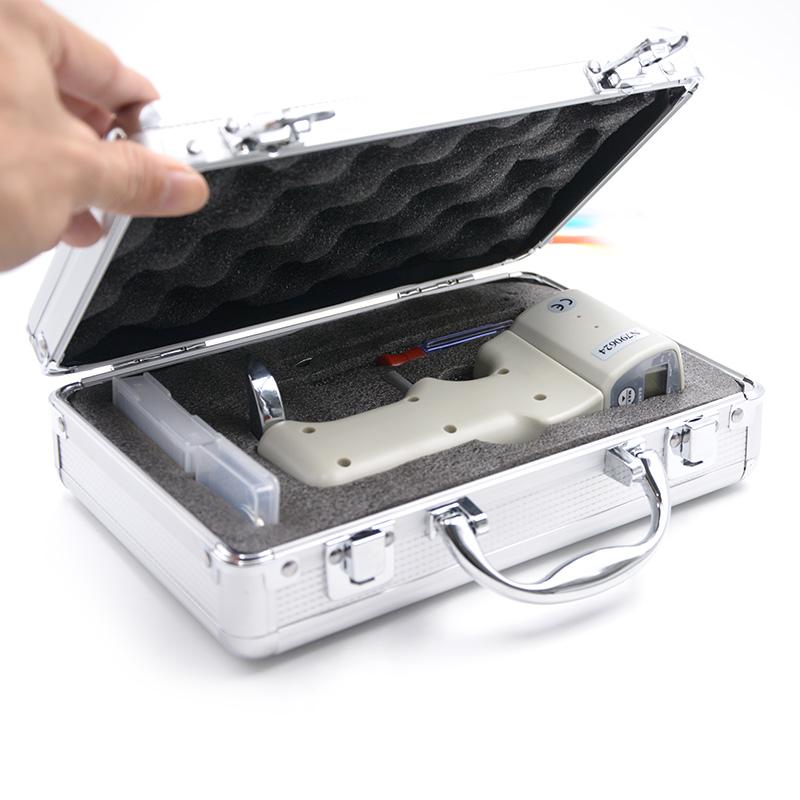

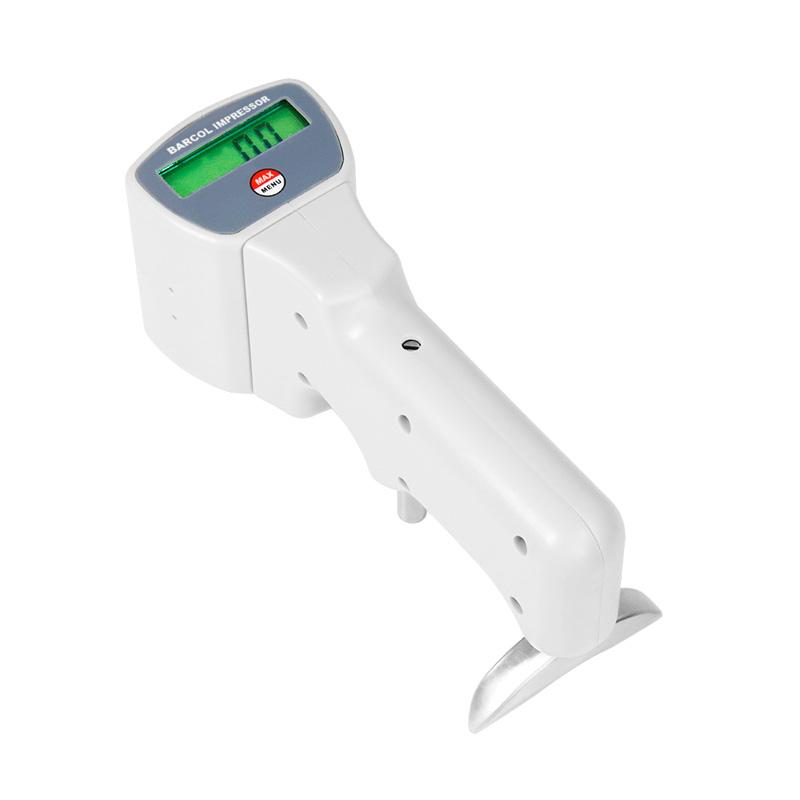

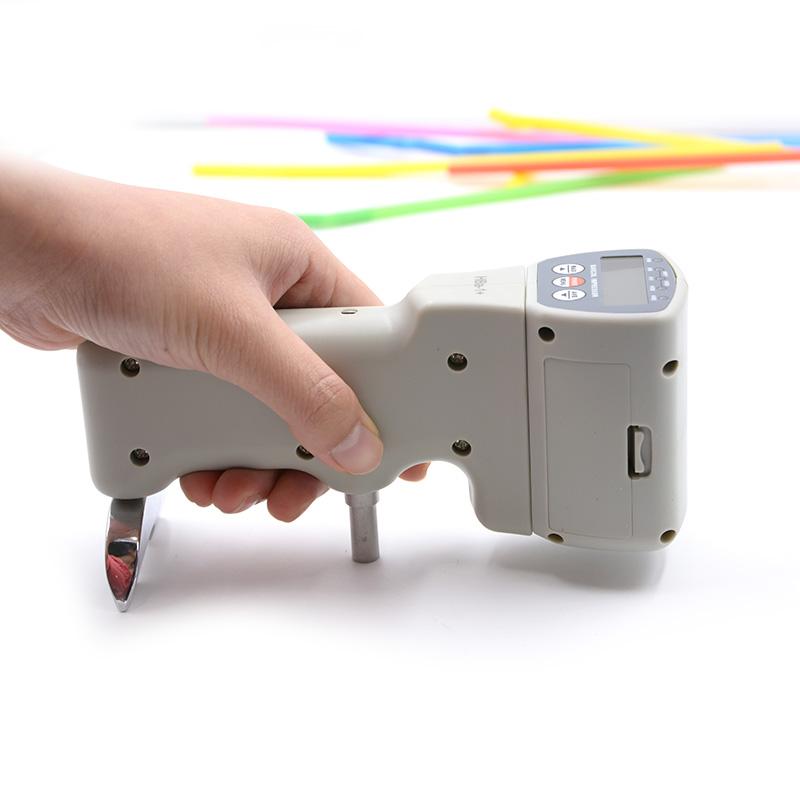

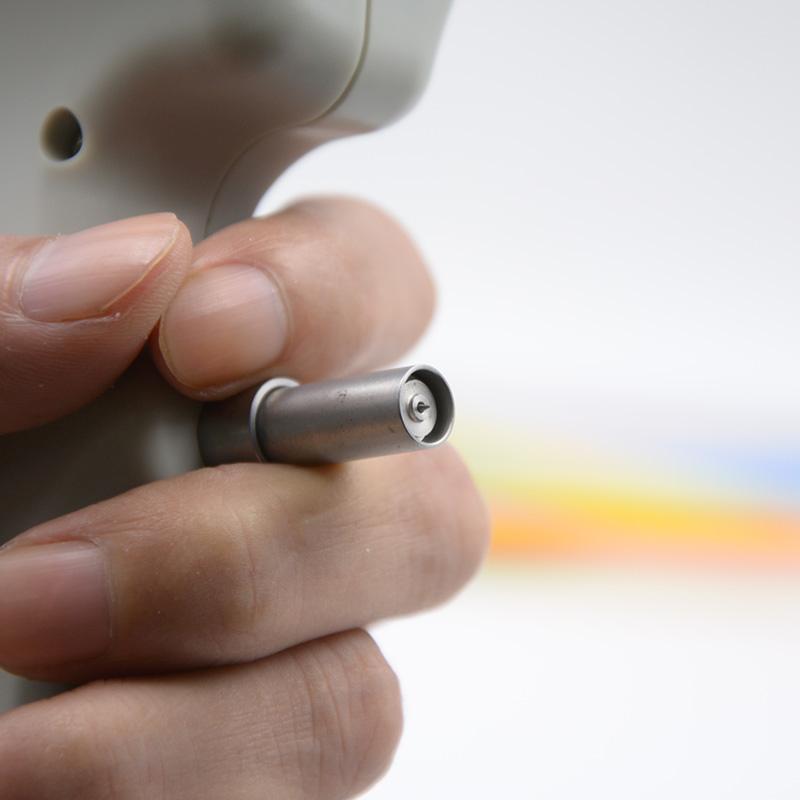

AMITTARI HBa-1 + Pasteur hardness Gauge Cang hardness Gauge Aluminum alloy hardness testing

Name: AMITTARI HBa-1 + Pasteur hardness Gauge Cang hardness Gauge Aluminum alloy hardness testing
Brand: AMITTARI
SKU: NB001469
Price: 688.0 USD
Availability: InStock

$ 688.00Ex works

Compact and lightweight can be operated with one hand, without support and testing experience, the test range is equivalent to brinell hardness 25~ 150HB, can measure a variety of Hardness scales and has MAX Maximum hold and average calculation functions.

Model

HBa-1+

Get Quote

Category : Other Hardness Testers

Brand : AMITTARI

SKU : NB001469

Service :The delivery and service By NBCLab.Com

Overview

The AMITTARI HBa-1 + Babbitt hardness gauge is a kind of Crowd hardness gauge designed according to domestic and foreign standards, which has the characteristics of good Stability, convenient calibrating and high detection accuracy. The hardness gauge is equipped with an equilibrate positioning device, a Hardness value digital display device, and a removable Hardness value brating adjustment device. It is mainly used in the aluminum processing industry to test pure aluminum, softer aluminum alloys, thicker aluminum alloys, aluminum rods, aluminum castings, Aluminum Panels, Aluminum profiles, aluminum forgings and aluminum alloy products, and can also be used in the Glass industry.

Features

1. Small and lightweight design, one-handed operation, one pressure can be used, no experience is required, and it can be used in any occasion 2. No support required, only tested on one side of the sample, suitable for testing oversized workpieces 3. With MAX Maximum Hold function, record the maximum Hardness value during measurement 4. With average calculation function, it can calculate the average of up to 29 sets of data 5. Provide Bluetooth data output selection 6. Wide test range, from very soft pure aluminum to particularly hard aluminum alloy can be tested, the effective test range is equivalent to brinell hardness 25~ 150HB 7. Both the measurement of Pap Hardness and the measurement of the material's brinell hardness value (HB), Vickers Hardness value (HV), Wechsler Hardness value (HW), rockwell hardness value (HRB/HRE/HRF/HRH)

Principle

HBa-1 + Pasteur hardness gauge is a Cedar type hardness gauge, which measures the Hardness value of materials through the Cedar test principle.

Applications

Aluminum Processing Industry, Glass Industry

Standards

ASTM B648-00 "Barker hardness gauge measurement of aluminum alloy Hardness test method", ASTM HD 2583-07 "Barker hardness gauge measurement of hard plastics", GB/T 3854-2005 "Reinforced plastics Barker Hardness test method"

Notice

• Ambient Temperature should be in the range of 0~ 50 ° C • Environmental humidity should be less than 80% RH • Powered by 2x1.5AAA AA batteries

Measurement parameters
Pap (HBa), Brinell (HB), Vickers (HV), Wechsler Hardness (HW), rocKwell hardness (HRB/HRE/HRF/HRH)
Measurement Range
0~ 100 HBa, equivalent to 25~ 135 HBW
resolution
0.1 Hba
Indication Error
81~88 HBa±1 HBa；42~48 Hba±2 HBa
repeatability error
81~88 HBa±1.5 HBa；42~48 HBa±2.5 HBa
Operating temperature
0~50℃
Environmental humidity
<80%RH
power supply
2X1.5AAA 7 batteries
Dimension
170x63x82mm
weight
390 g (without battery)
