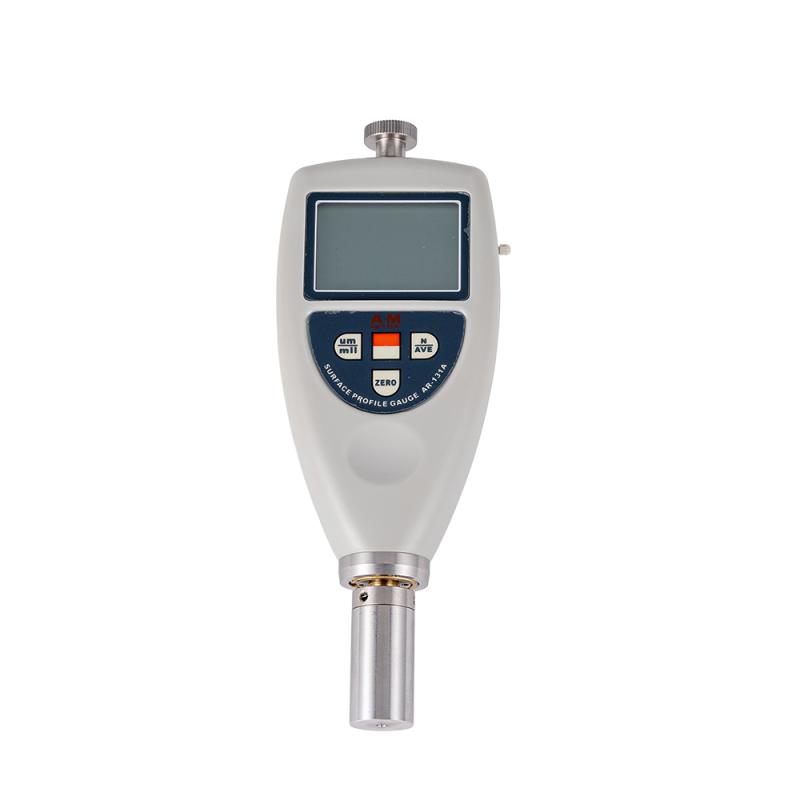

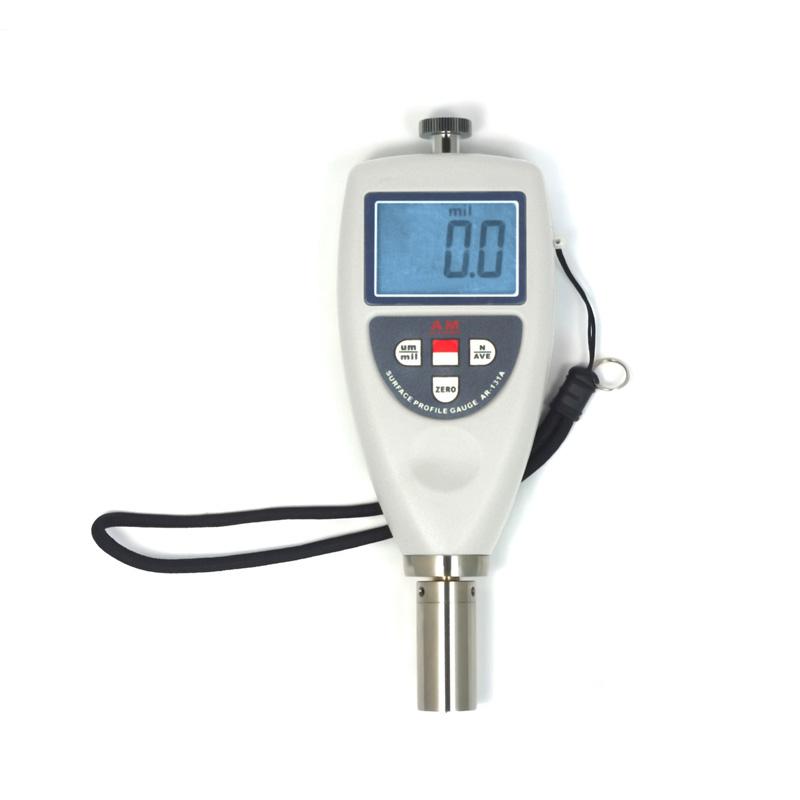

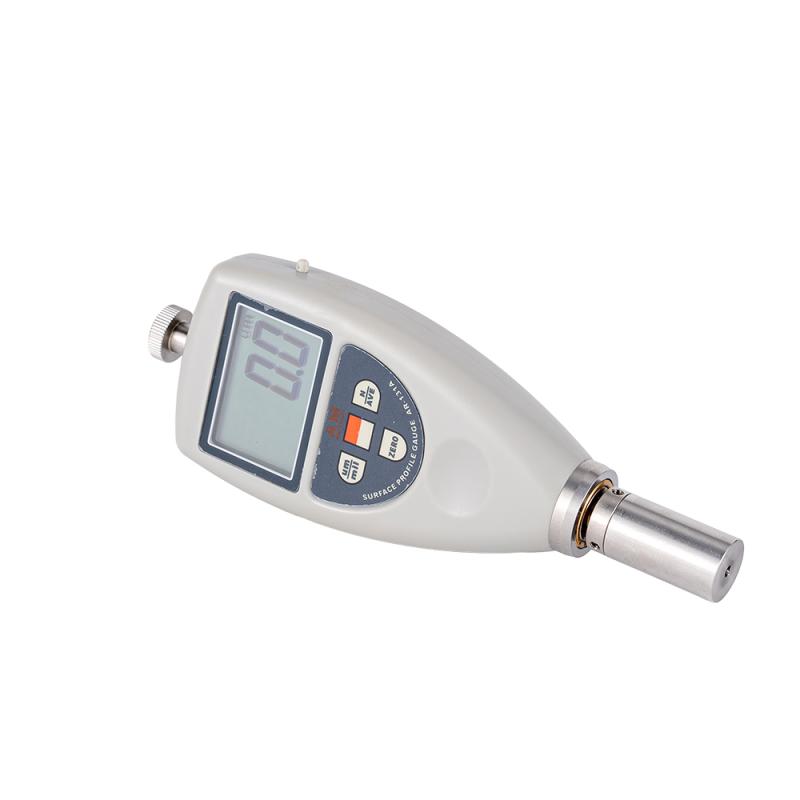

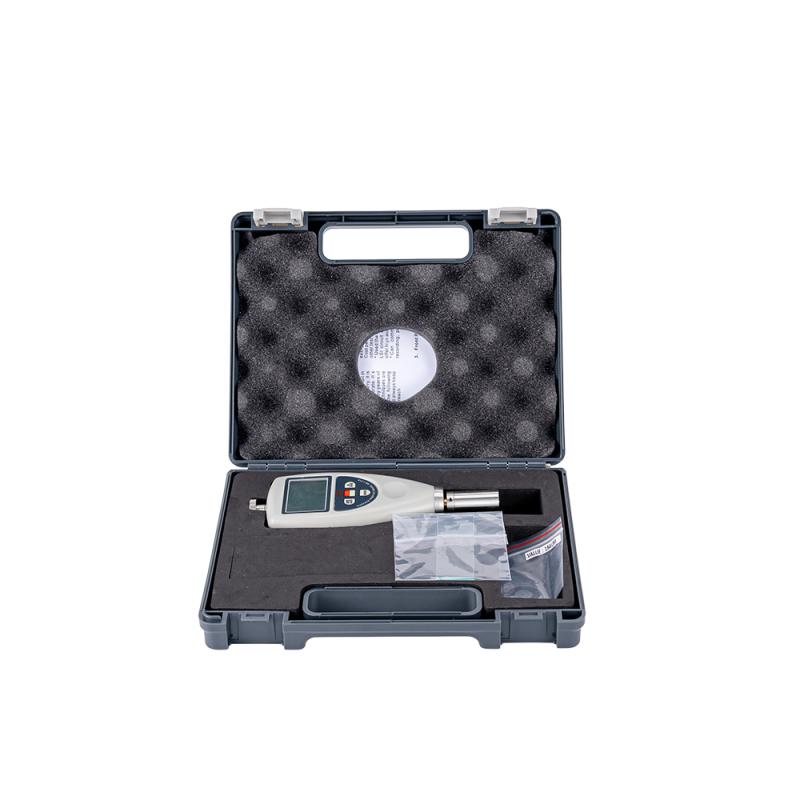

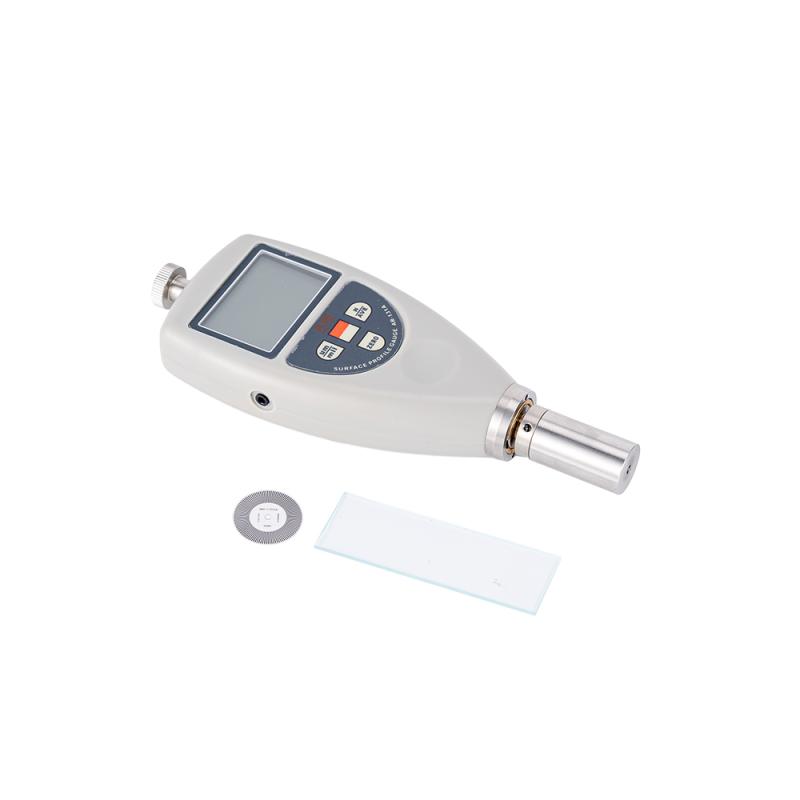

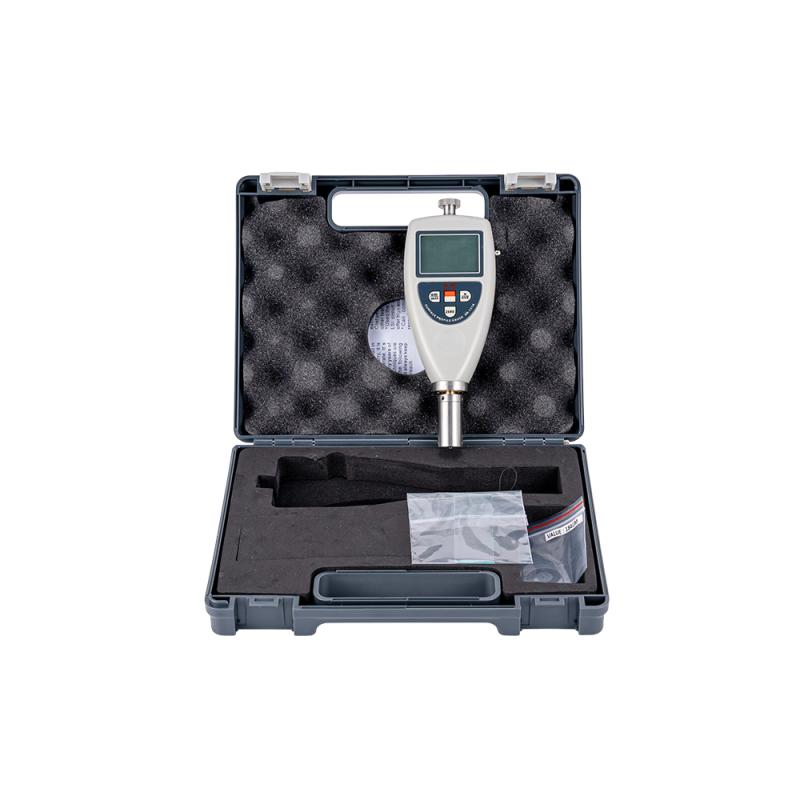

AMITTARI AR-131A sand blasting shot peening Roughness Gauge Integrated design Measurement range 0~ 750μm

Name: AMITTARI AR-131A sand blasting shot peening Roughness Gauge Integrated design Measurement range 0~ 750μm
Brand: AMITTARI
SKU: NB001478
Price: 439.0 USD
Availability: InStock

$ 439.00Ex works

Measurement range 0~ 750μm, resolution 0.1μm, support USB and Bluetooth data output, in line with a number of international test standards.

Model

AR-131A

Get Quote

Category : Roughness Tester

Brand : AMITTARI

SKU : NB001478

Service :The delivery and service By NBCLab.Com

Overview

The AMITTARI AR-131A sand blasting shot peening Roughness Gauge features a one-piece design that complies with ASTM D4417 Method C and NACERP0287-95 Test Method. Measurement ranges from 0 to 750 μm allow direct measurement of surface peak and valley heights. It is suitable for industries with surface roughness requirements such as shot peening sand blasting, printing, and lame plating corrosion protection. Measurement parameters are displayed through LCD displays.

Features

1. Use USB data cable output to communicate with PC. 2. Provide Bluetooth data output selection. 3. Male/imperial unit conversion; with MAX Maximum latch, undervoltage alarm indication function, automatic shutdown and manual shutdown function. 4. Conforms to ASTMD4417-B, IMO MSC 21882, SANS5772, USNavy NSI009-32, and US Navy PPI 63101-000 test methods.

Principle

AR-131A sand blasting shot peening Roughness Gauge adopts Inductance Sensor Measurement principle to directly measure the height of the peak and valley of the surface, and display Measurement parameter data through liquid crystal display.

Applications

Shot peening sand blasting industry, printing industry, lame plating anti-corrosion industry

Standards

ASTMD4417-B、IMO MSC 21882、SANS5772、USNavy NSI009-32、US Navy PPI 63101-000

display
LCD display
Accuracy
+/- 5% or +/- 5a
resolution
0.1μm (Measured value < 100μm); 1μm (Measured value > 100μm)
Measurement Range
0~750um
Measurement principle
Inductance
Operating environment
Temperature -5~ 50℃; Humidity < 95% RH
power supply
2X1.5vAAA No. 7 battery
Host Size
176x63x25mm
Host weight
310G (without battery)
