Overview

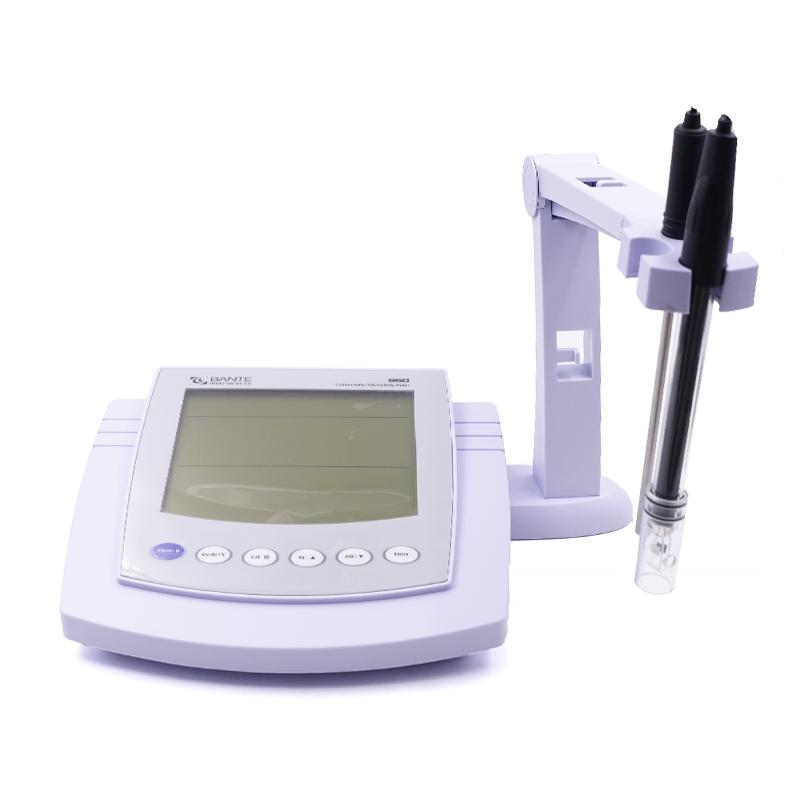

The BANTE Bante950-DH is a High Accuracy laboratory conductivity /TDS/salinity/resistivity meter with a large screen backlit LCD display with measurement accuracy of 0.5% F.S. It supports 1 to 5 point key calibrate, automatically recognizes the Conductivity detector calibrate liquid, and has a built-in system menu to customize 11 functional parameters for the measurement of liquid conductivity, total dissolved solids (TDS), salinity and resistivity values.
Features
1. High Accuracy Laboratory Conductivity Meter with Large Screen Backlit LCD.
2.1 to 5 point button calibrating, automatic identification Conductivity detector calibrating liquid.
3. Optional Electrode constant (K = 0.1/1/10), TDS factor, standardized temperature (20 or 25 ° C), linear and pure water temperature compensation, seawater and practical salinity Measurement mode.
4. Automatic temperature compensation to ensure accurate measurement within the full range.
5. Automatic end point lock, keep stable Measured value for easy browsing or recording.
6. Electrode diagnostics automatically, check Electrode slope value (K).
7. The system menu can customize 11 function parameters such as the number of calibrated points, Stability standard, data locking mode, and automatic shutdown.
8. One-click reset (Reset) automatically restores the meter to the factory default settings.
9. Extended memory can store up to 500 sets of measurement data.
10. The built-in clock automatically marks the time and date of stored data to comply with GLP specifications.
11. USB Communication interface sends stored data to PC.
Principle
Conductivity detector Electrode measurement of liquid conductivity and automatic temperature compensation to improve accuracy. It supports multiple compensation modes (linear or pure water) and standardized temperature options, automatically diagnoses Electrode slope, and ensures Stability and traceability of measurement results with data locking and storage functions.
Applications
Water and wastewater treatment, scientific research and education, environment monitoring and agricultural breeding, printing and chemical industry, fishery breeding and hydroponic planting, beverage industry and other industrial applications
Standards
GLP specification
Steps
1. Connect Conductivity detector Electrode and temperature probe (if applicable).
2. Turn on the meter and select Measurement mode (conductivity, TDS, salinity or resistivity).
3. Perform 1 to 5 point calibrating using the specified calibrating fluid.
4. Set parameters such as Electrode constant, TDS factor, temperature compensation mode, etc.
5. Electrode is immersed in the liquid to be tested, and the instrument automatically measures and displays the results.
6. Use the data locking function to record stable values, or export data through the USB interface.
Notice
• Make sure Electrode is clean and properly connected before use.
• The calibrating liquid should be within the valid period to avoid contamination.
• Electrode completely immersed in liquid during measurement to avoid bubble effects.
• Electrode diagnostics and maintenance are performed regularly to maintain accuracy.
• In automatic shutdown mode, pay attention to data preservation.
• Avoid use in extreme temperatures or Humidity environments to prevent damage.
• Using the one-click reset function will clear the custom settings, so be careful.
