Overview

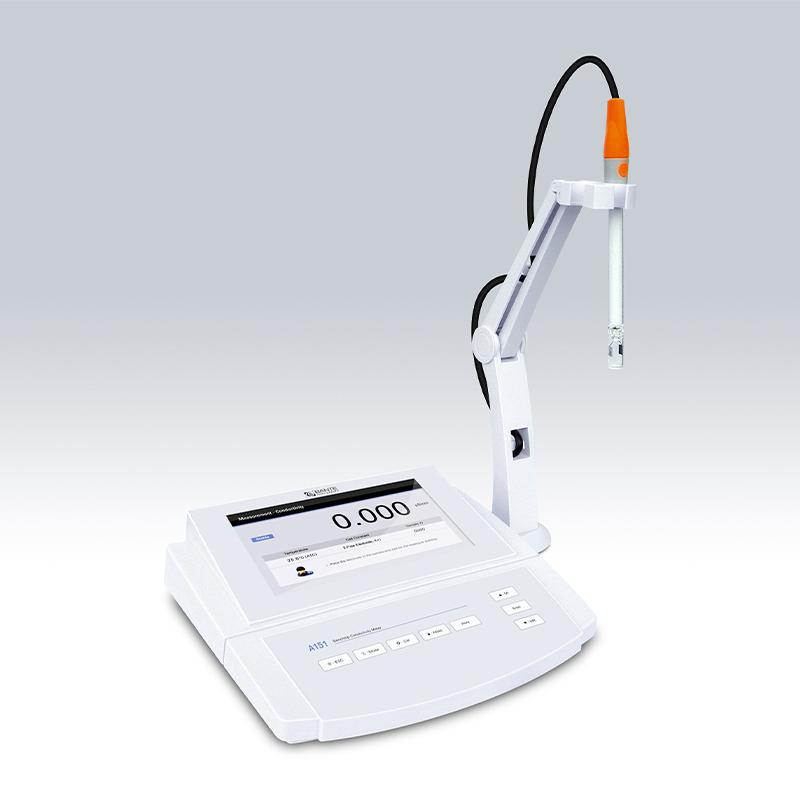

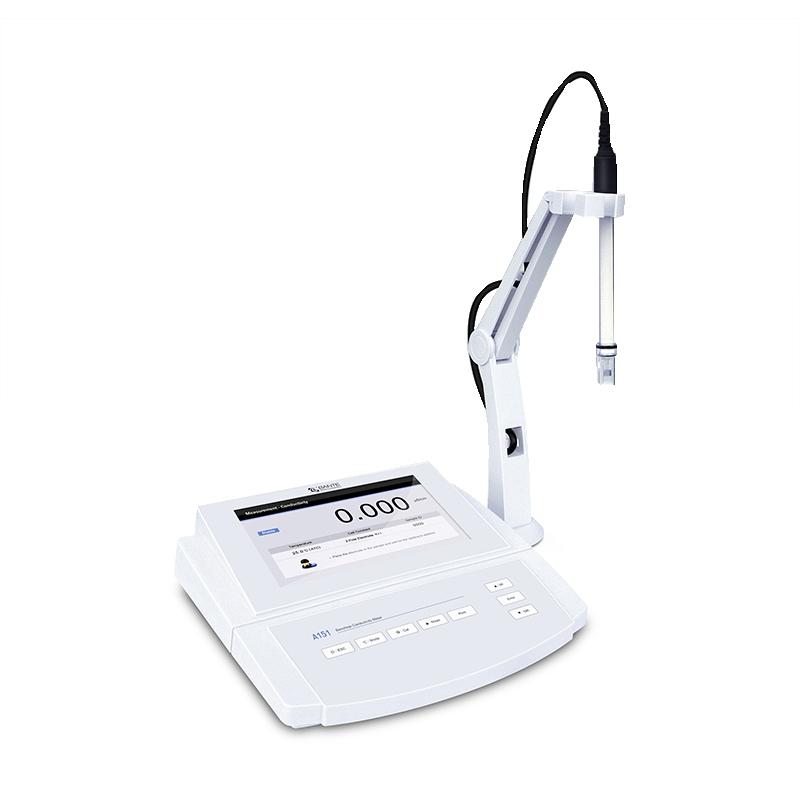

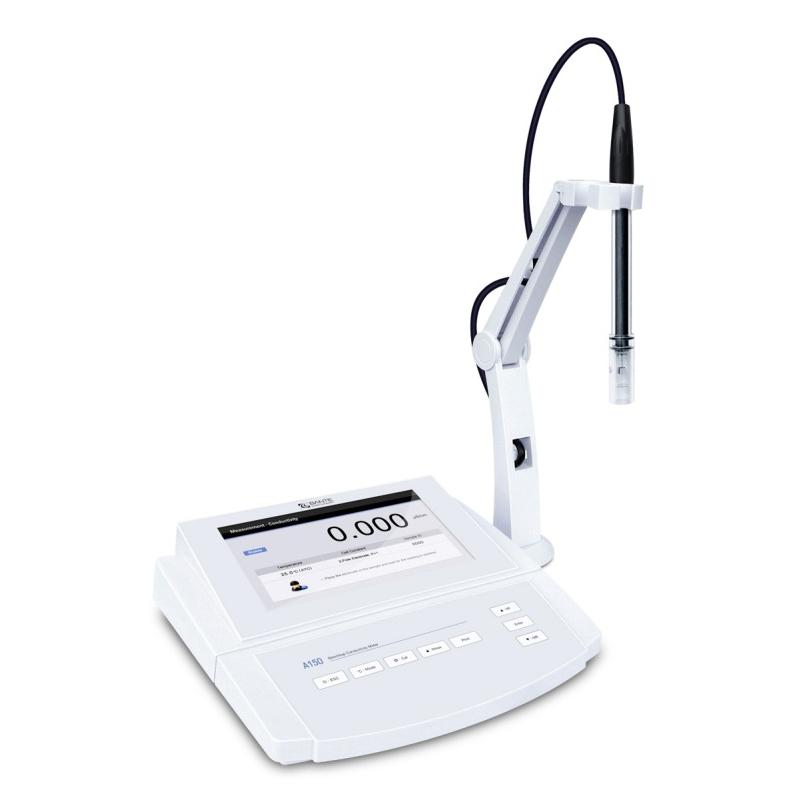

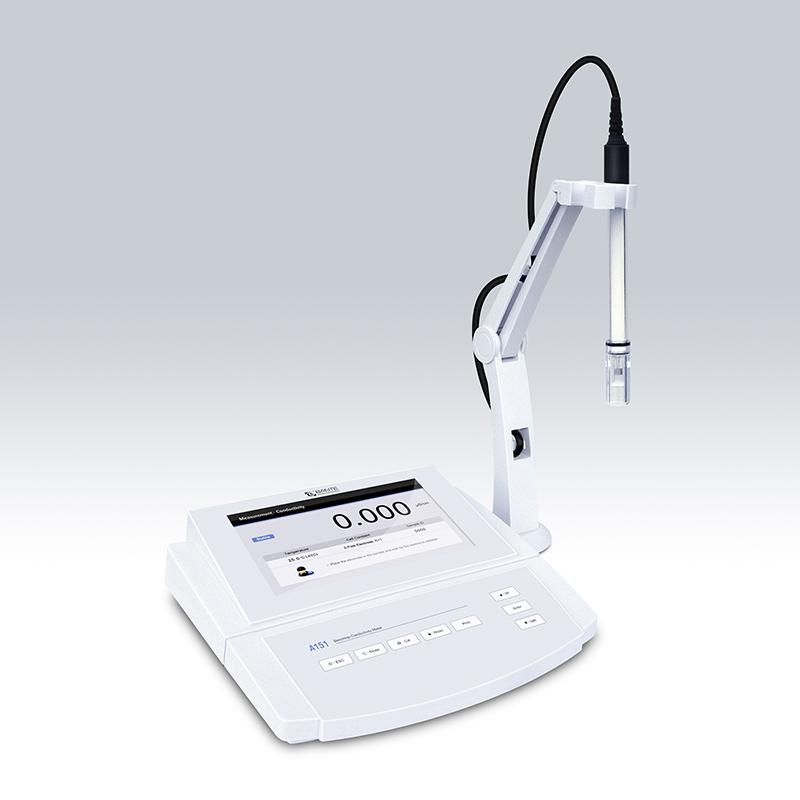

The A151-DH Laboratory conductivity /TDS/salinity/resistivity meter is a professional precision Conductivity Meter of the BANTE brand, equipped with a 7-inch TFT display, suitable for the measurement of liquid conductivity, total dissolved solids (TDS), salinity and resistivity values. Measurement accuracy is 0.5% F.S.
Features
1. Professional Precision Conductivity Meter with 7-inch TFT Display
2.1 to 5 point button calibrated Conductivity detector standard
3. Optional Electrode Constant to match the connected Conductivity detector Electrode and call the calibrated data of each Sensor
4. Optional linear temperature compensation coefficient, pure water compensation coefficient, standardized temperature and TDS conversion factor
5. Automatic temperature compensation to ensure accurate measurement over full scale
6. Alarm limit, automatic warning Measured value exceeds the set range
7. Calibrate expiration reminder, prompting users to calibrate the meter regularly
8. Automatic end point lock, keep stable Measured value for easy browsing and recording
9. Interval reading mode, send Measured values to PC or printer regularly
10. Password protection to prevent unauthorized calibrating with settings
11. Extended memory can store up to 1000 sets of data
12. USB Communication interface Easy to connect external devices
13. One-click reset (Reset) automatically restores the meter to the factory default settings
Principle
The meter connects the Conductivity detector Electrode measurement characteristics of the liquid and uses temperature compensation technology (including linear, non-linear or pure water compensation mode) to ensure measurement accuracy. Automatically recognizes the standard liquid for calibrating, and supports a variety of parameter conversion and display.
Applications
Laboratory, water quality monitoring, industrial process control, environment testing, scientific research and education
Standards
Practical salinity (psu), seawater salinity (ppt),% salinity
Steps
1. Connect power supply and Conductivity detector Electrode
2. Power on and select Measurement mode (conductivity, TDS, salinity or resistivity)
3. Perform 1 to 5 point calibrating, using standard liquid for automatic identification
4. Set temperature compensation, TDS conversion factor and other parameters
5. Start measurement, the meter automatically locks the stable value
6. Export data or connect peripherals through USB interface
Notice
• Make sure the Electrode is properly connected to the instrument before use
• Regularly calibrate and set the calibrate reminder function
• Avoid measurement of samples out of range to prevent damage to equipment
Memory capacity limitations when storing data
• Follow temperature compensation settings during operation to ensure Measurement accuracy
• Clean Electrode After Use and Store Properly
