Overview

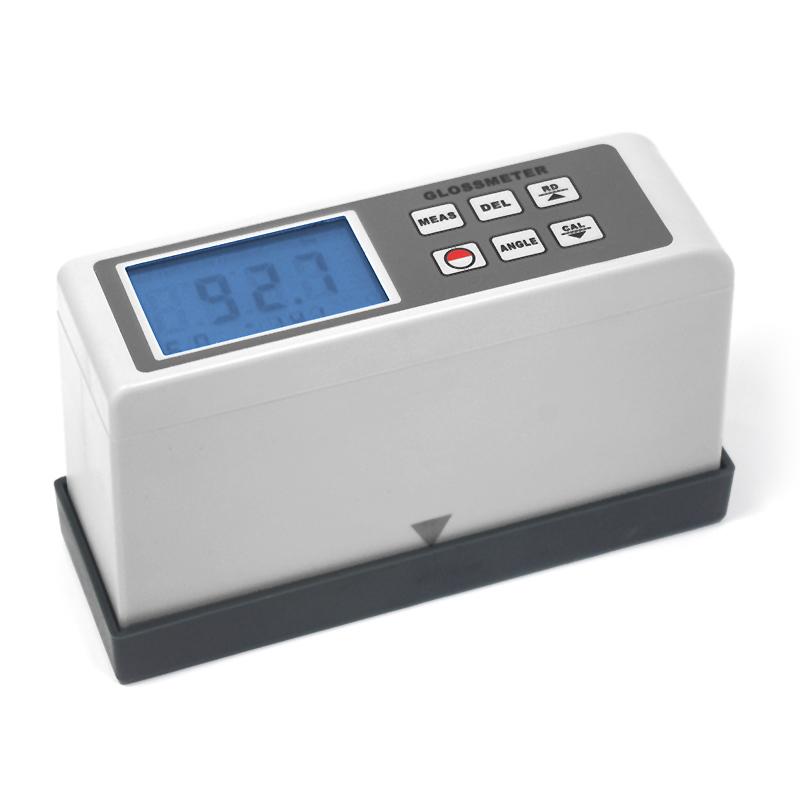

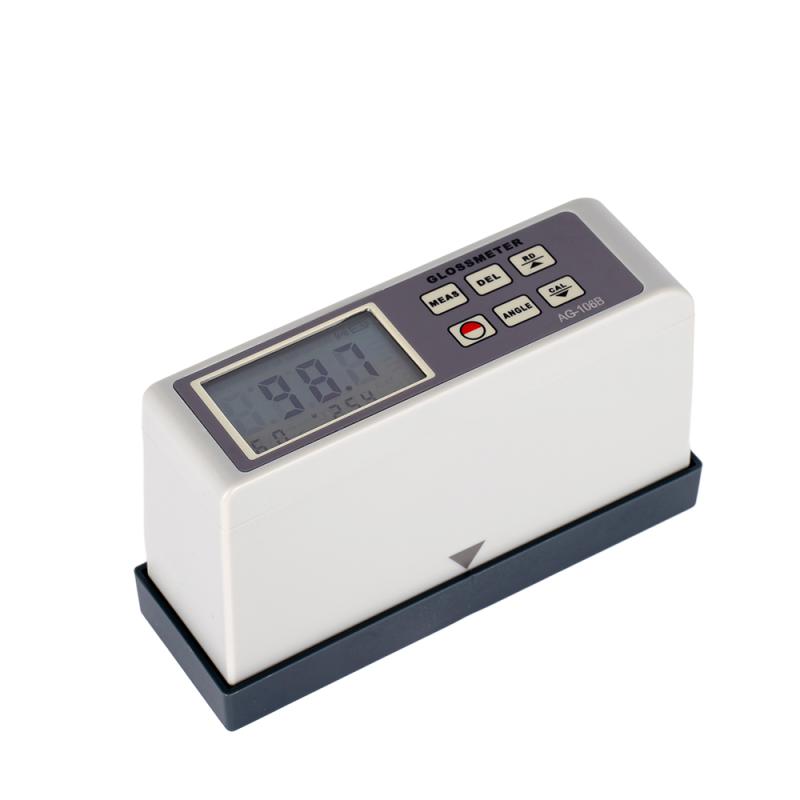

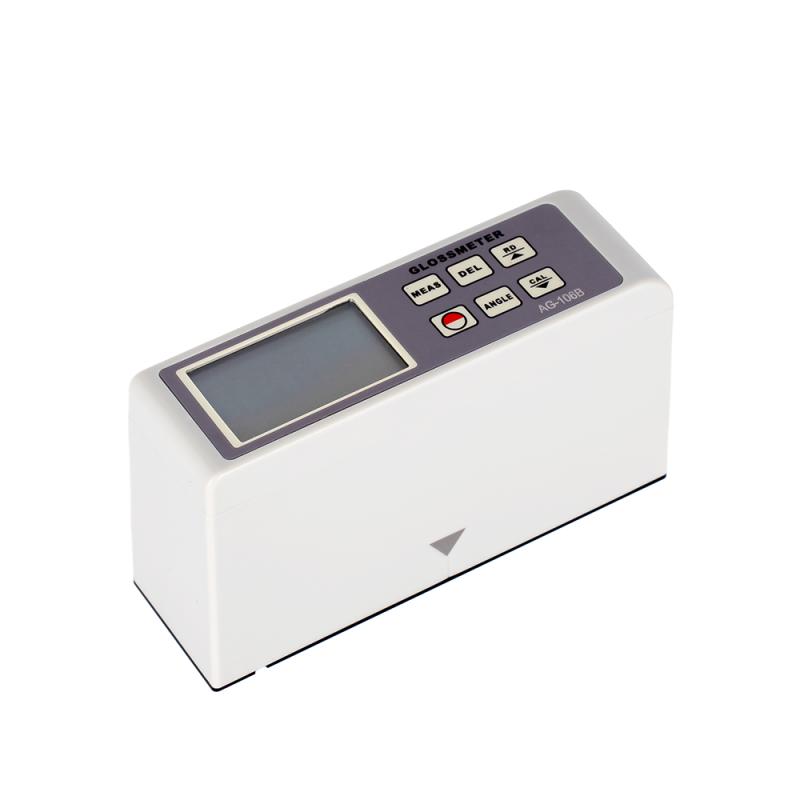

The AMITTARI AG-106B monolithic portable glossmeter is a single-angle 60 ° glossmeter, suitable for the measurement of surface Gloss such as Coating inks where Glossiness is trending. The instrument is a monolithic design, with a precise and lightweight shape, convenient portability, automatic calibration without manual operation, and simple use. The AG-106B has a Stability of 0.4GU, a Repeatability of 0.5GU, and a Measurement range of 0~ 200GU.
Features
1. Accurate measurement, Repeatability.
2. With power undervoltage indication function.
3. Fully intelligent design, fast measurement.
4. There is a beep prompt during operation and use.
254 new sets of measurement data can be stored.
6. Precision and lightweight shape, easy to carry Automatic calibration, no need for manual adjustment.
Principle
AMITTARI AG-106B glossmeter Glossiness measurement of material surface by 60 ° projection angle, using built-in Sensor and intelligent system for rapid detection, Automatic calibration to ensure data accuracy.
Applications
Inks, paints, paints, coatings, wood products, building decoration materials: Glossiness testing of surfaces of marble, granite, vitrified polished tiles, ceramic tiles, plastics, paper and Miscellaneous Non-metallic materials.
Standards
ASTMD-523、ASTMD1455、ASTM C346、ASTMC584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB 8807、JJG 696-2002。
Steps
1. Power Supply button to turn on the instrument.
2. Select the Measurement Angles as required (AG-106B is fixed at 60 °).
3. Align the measurement port with the surface to be measured.
4. Press the measurement button for measurement.
5. Use the read key to view the data.
6. Use the delete key to clear unwanted data.
7. Automatic calibration using the calibrate key.
Notice
* Operating temperature in the range of 0~ 40 ℃.
* The relative humidity does not exceed 85%.
* Regularly check the power supply undervoltage indication to avoid insufficient power affecting the measurement.
* Keep the measurement port in close contact with the surface during measurement to avoid external rays of light interference.
When storing data, be careful not to exceed the 254-set limit.
* Clean the measurement port in time after use to prevent pollution from affecting the accuracy.
