Overview

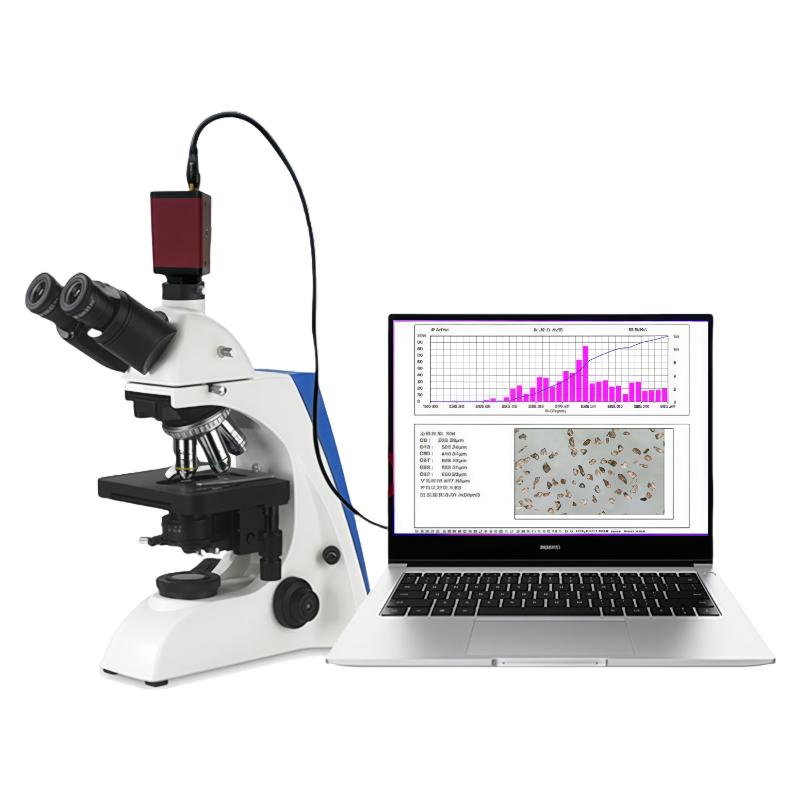

JX-2000A Particle image analyzer is an instrument for powder particle size morphology analysis. By combining OpticalMicroscopy, USB camera and special image analysis software, it realizes intuitive observation and accurate measurement of particle morphology. The system is composed of OpticalMicroscopy, USB camera, image analysis software, computer and printer. It can provide distribution data and images such as particle number, area, circumference, diameter, volume, aspect ratio, and short diameter ratio, and supports D10, D50, D90, D97, average particle size, surface area and other data distribution charts. The test results can be displayed, saved and printed.
Features
1. Industrial-grade camera collects particles at high speed, OpticalMicroscopy amplifies the imagery, and the image is quickly displayed on the computer to directly observe the particle morphology.
2. Measurement range, covering 0.5μm to 3000μm.
3. The interface mode is USB connection, which is easy to operate.
4. Flat-field color difference elimination objective, maximum resolution 0.07 microns, maximum Optical inspection magnification 1600 times, maximum printing 4000 times (A4 format).
5. Provide the number, diameter, area, volume, circularity and other distribution data under the two benchmarks of equal area and equal perimeter, as well as the number of particles, D10, D50, D90, average particle diameter, surface area, aspect ratio and other Particle size distribution data.
6. Equipped with more than 30 image analysis and processing functions, including image adjustment, grid annotation, etc., to improve analysis resolution and test results are true and reliable.
7. Particle morphology images can be saved and printed, support multiple formats of test report output, and special software can be designed for special powders.
Principle
After the sample is enlarged by OpticalMicroscopy, the particle morphology image is captured by the USB camera and transmitted to the computer, and the user can directly observe the particle morphology of the powder. The distribution data and images such as the number, area, circumference, diameter, volume, length-diameter ratio, and short-diameter ratio of the particles are calculated and analyzed through proprietary image analysis software, and the data distribution charts of D10, D50, D90, D97, average particle size, and surface area are generated at the same time. The test results are displayed and saved by the computer, and the Particle distribution size data and particle morphology pictures can be printed.
Applications
Powder materials: diamond, silicon carbide, natural calcium silicate, quartz powder, barium sulfate, graphite, lithium cobalt oxide, boron carbonation, white corundum, oxidation cerium mica powder, Toner, metal powder and other mineral powders, means and methods for verifying Miscellaneous particle size testing
Steps
1. Samples are amplified by OpticalMicroscopy imagery.
2. The USB camera captures the image of the particle shape and transmits it to the computer.
3. Observe the powder particle morphology directly on the computer.
4. Use proprietary software for computational analysis to obtain particle distribution data and images.
5. Computer display and save test results, or print Particle size distribution data and particle morphology pictures.
Notice
• The instrument is divided into JX-2000A type and JX-2000B type, with the same technical principle and parameters, but the JX-2000A is equipped with a transmission Microscope, and the JX-2000B is equipped with a reflection Microscope, which is suitable for the observation and analysis of the surface crystal shape of opaque objects such as ceramics and metals.
• The software operating environment is Windows XP or Windows 32-bit system.
• Measurement units are available in microns, millimeters, centimeters or inches.
• Image analysis and processing functions include shading processing, image correction, image enhancement and image processing, etc., and parameters need to be adjusted according to actual needs to improve analysis accuracy.
