Overview

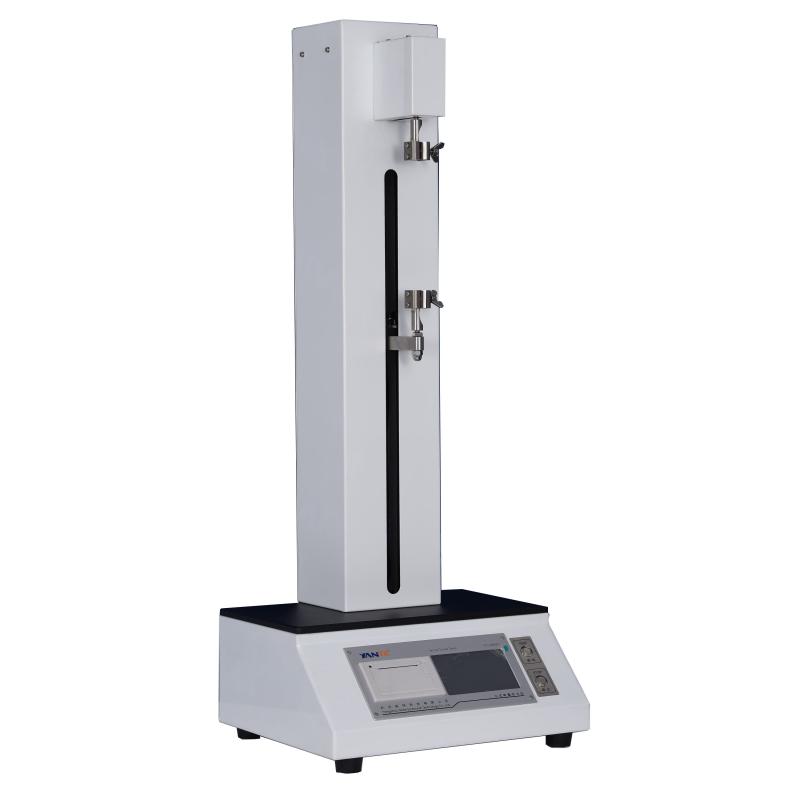

YANTE YT-L300 vertical computerized tensile instrument is mainly used in papermaking, Plastic film, chemical fiber, aluminum foil production and other industries and Miscellaneous production and commodity inspection departments that need to measure the Tensile Strength of objects. The instrument can measure Tension, Tensile Strength, Elongation, Break Length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index, and measurement of adhesive tape Peel Strength.
Features
1. The transmission mechanism adopts ball screw and 3 guide shafts for smooth and accurate transmission.
2. Adopt stepper motor (servo motor), with low noise and accurate control.
3. Adopt 5-inch TFT true color LCD touch screen, Chinese menu, real-time display of stretching time, load tension and tensile curve.
4. The main board adopts new technology design, the CPU adopts 32-bit ARM processor, the processing speed is fast, the data calculation is accurate, and the real-time measurement data is guaranteed.
5. With automatic reset, data memory, overload protection and fault self-diagnosis functions.
6. Variable sample size and tensile speed, support direct testing of commonly used standard size samples or custom settings.
7. Measurement range is wide, and different dynamometer conversion ranges can be configured (0-30N/0-100N/0-300N/0-1000N).
8. Using thermal printing movement, no inks and color ribbons, no noise, fast printing speed.
9. Equipped with standard RS232 interface, it can cooperate with microcomputer software communication (separately purchased).
Principle
The instrument is driven by a stepper motor (servo motor) through a ball screw and a guide shaft drive system to achieve smooth and accurate stretching motion. During the stretching process, real-time load tension data is collected, and parameters such as anti-tension and elongation are quickly calculated by a 32-bit ARM processor, and tensile curves and results are displayed on the Touchscreen.
Applications
Paper, Cardboard, Aluminum Foil, Aluminum Plastic Tape, Plastic film, Miscellaneous Non-metallic Materials
Steps
1. Turn on the power supply and start the instrument.
2. Set the sample size and stretching speed through Touchscreen.
3. Install the sample between the chucks and adjust the spacing between the chucks.
4. Start tensile test, observe data and Linear dispersion in real time.
5. After the test is completed, the results are automatically calculated and displayed.
6. Use a thermal printer to print data or transfer it through the RS232 interface.
Notice
• Ambient Temperature should be maintained at 10~ 35 ℃, relative humidity < 85%.
• Power supply voltage is AC (100~ 240) V, (50/60) Hz to ensure stable power supply.
• The standard width of the sample is 15mm, and the replacement of the 25mm or 50mm chuck needs to be booked.
• Avoid overload use, the instrument has overload protection function.
• Regularly check the transmission parts and chucks to ensure normal operation.
• The communication interface is RS232, and the computer software needs to be purchased separately.
