Overview

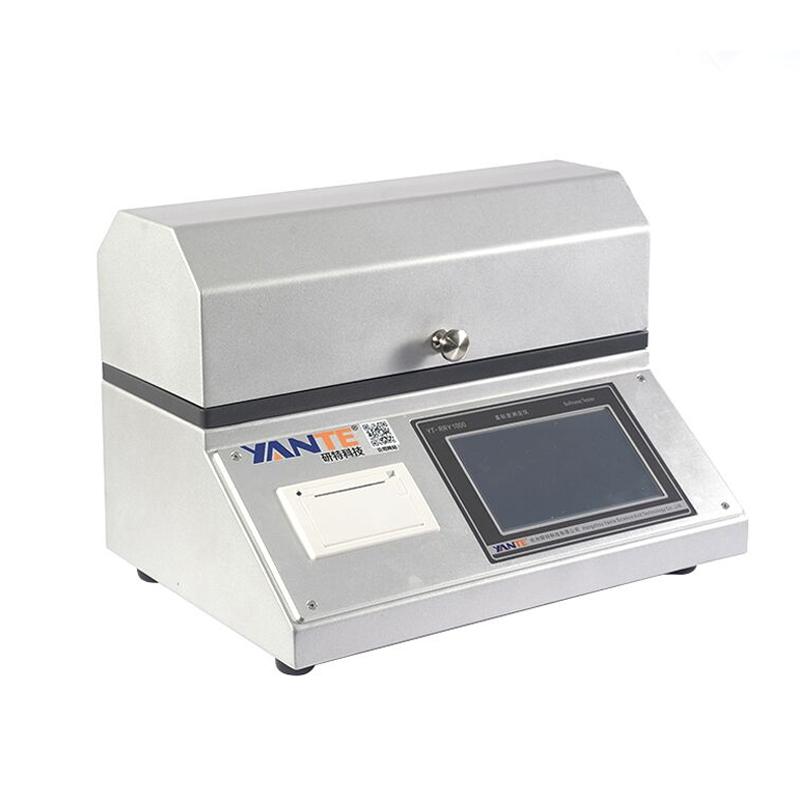

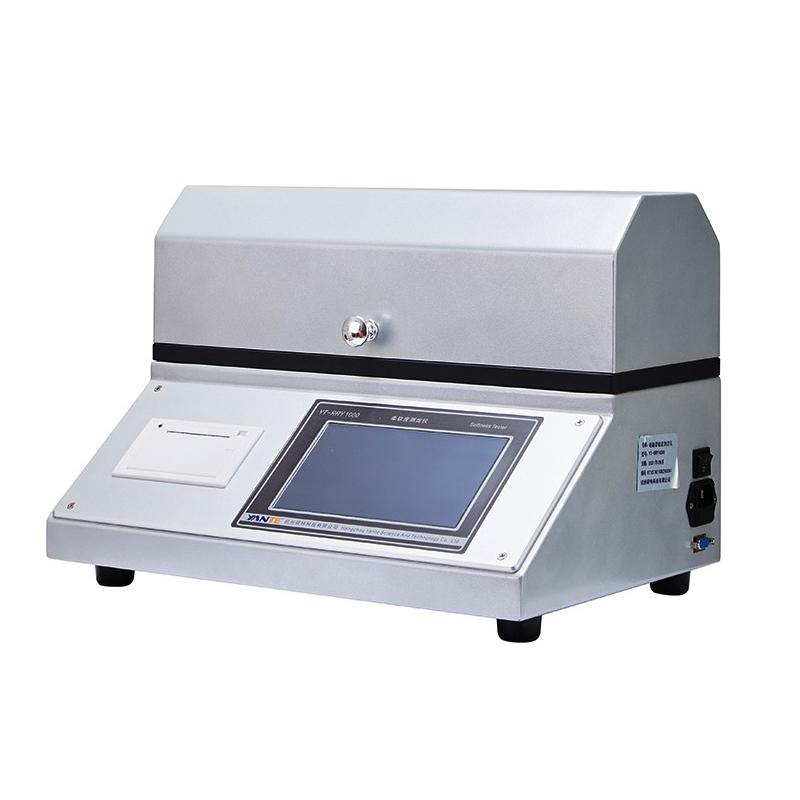

YT-RRY1000 computer softness tester is a new type of High Accuracy smart tester developed according to relevant national standards. It adopts modern mechanical design concepts and microcomputer processing technology. It is equipped with professional components, supporting parts and single-chip microcomputers. It has a reasonable structure and multi-functional design. The instrument is a satisfactory experimental equipment in papermaking, scientific research and Quality control industries.
Features
1. One-click testing, easy to understand
2. ARM processor improves the Response speed of the instrument, and the calculation data is accurate and fast
3. Linear dispersion of pressure displayed in real time
4. Sudden power failure data saving function, data retention before power failure after power on and can continue to test
5. Software and hardware exceed the range to ensure the safety of the Sensor
6. Communicate with microcomputer software (separately purchased)
Principle
The instrument adopts modern mechanical design concept and microcomputer processing technology, applies pressure to the sample through the measurement head, displays the pressure Linear dispersion in real time, and accurately determines the softness performance of the material.
Applications
Paper, Tobacco flakes, Fibrous fabrics, Non-woven fabrics, Fabrics, Films
Standards
GB/T8942、QB/T1060、ISO 534
Steps
Step 1 Prepare the sample
2. Select the gap width of the sample stage (5/6.35/10/20mm four gears adjustable)
3. Place the sample
4. One-click start test
5. The instrument automatically completes the measurement and displays the result
Notice
• Ambient Temperature should be within 10~ 35 ℃
• Working environment relative humidity should be ≤ 85%
• Power supply voltage range is AC (100~ 240) V, (50/60) Hz
• Net weight of the instrument is about 20kg, pay attention to safety when handling
• Microcomputer communication function requires additional purchase of supporting software
