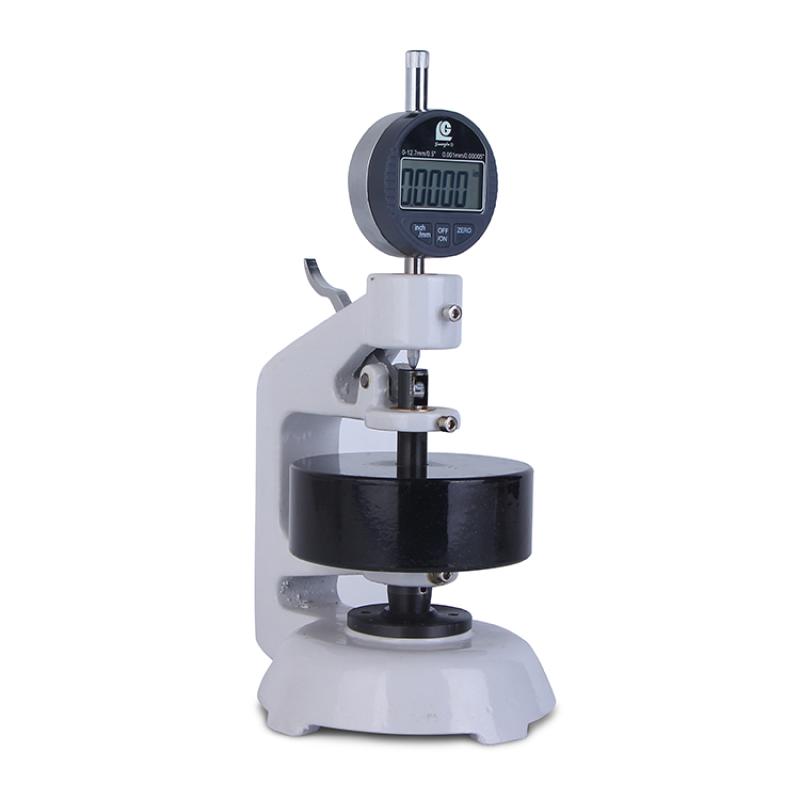

YANTE YT-H4A paper Thickness determination Gauge High Accuracy Contact Pressure 100kPa

Name: YANTE YT-H4A paper Thickness determination Gauge High Accuracy Contact Pressure 100kPa
Brand: YanTe
SKU: NB014933
Price: 482.0 USD
Availability: InStock

$ 482.00Ex works

Measurement range 0-4mm, contact pressure 100 +/- 10kPa, contact area 200mm ², with High Accuracy Indication Error +/- 0.0025mm, suitable for all kinds of sheet material thickness measurement.

Model

YT-H4A (digital display dial)

Get Quote

Category : Paperboard Thickness Gauge

Brand : YanTe

SKU : NB014933

Service :The delivery and service By NBCLab.Com

Overview

YANTE YT-H4A paper Thickness determination gauge is a special instrument for measuring the thickness of paper and Cardboard, which can be widely used in the thickness measurement of paper, Cardboard and Miscellaneous sheet materials. Measurement range is 0~ 4mm, with High Accuracy digital display function.

Features

1. Measurement range 0~ 4mm, resolution 0.01mm 2. Contact pressure 100 +/- 10kPa, contact area 200 +/- 5mm ² 3. Parallelism of measurement plane ≤ 0.002mm 4. Indication Error +/- 0.0025mm/+/- 0.5% 5. Variability of indication ≤ 0.0025mm or ≤ 0.5% 6. Dimension 233 * 160 * 120mm, weight 5.5kg

Principle

The instrument acts on the surface of the material to be measured by standard contact pressure, and uses a digital dial meter to accurately measure the thickness of the material to ensure the accuracy and Reliability of the measurement results.

Applications

Paper, Cardboard, Miscellaneous Sheet Material

Measurement Range
0-4Mm, Graduation 0.01mm
contact pressure
100±10kPa
contact area
200±5mm²
Measurement plane parallelism
≤0.002mm
Indication Error
+/- 0.0025mm or +/- 0.5%
Indication variability
≤ 0.0025Mm or ≤ 0.5%
Net Size
233*160*120mm
Net weight
5.5kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
